Jaquar Single Piece Slim Concealed Cistern, S-Type
Jaquar Single Piece Slim Concealed Cistern, S-Typeಉಪಲಬ್ದವಿದೆ
ನಿಯಮಿತ ಬೆಲೆ
Rs. 8,580.00
ನಿಯಮಿತ ಬೆಲೆ
Rs. 9,750.00
ಮಾರಾಟ ಬೆಲೆ
Rs. 8,580.00
ಘಟಕ ಬೆಲೆ
₹0.0/
Incl GST
ಚೆಕ್ಔಟ್ನಲ್ಲಿ ಶಿಪ್ಪಿಂಗ್ ಅನ್ನು ಲೆಕ್ಕಹಾಕಲಾಗುತ್ತದೆ.
ಪಿಕಪ್ ಲಭ್ಯತೆಯನ್ನು ಲೋಡ್ ಮಾಡಲು ಸಾಧ್ಯವಾಗಲಿಲ್ಲ
Product Highlights
- Manufacturer: Jaquar Group
- Product: Single Piece Slim Concealed Cistern

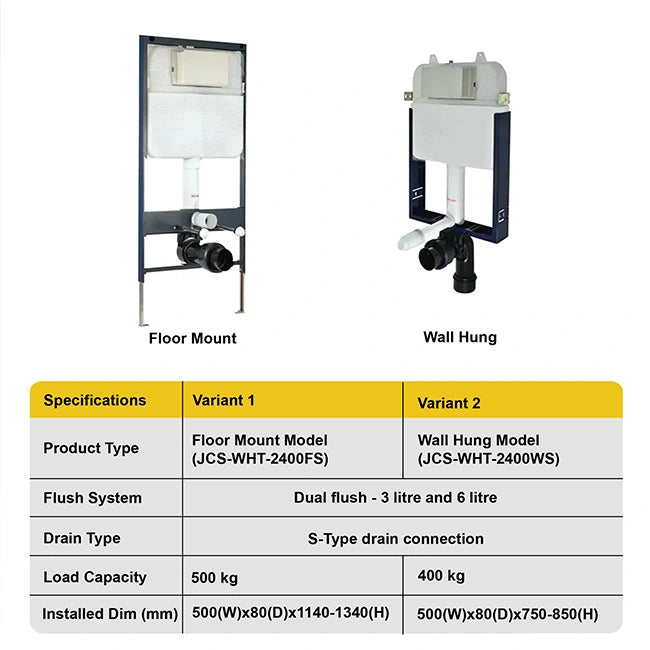

- Available Configurations: Floor Mount (JCS-WHT-2400FS) and Wall Hung (JCS-WHT-2400WS)
- Drain Type: S-Type drain connection
- Flush System: Dual flush - 3 litre and 6 litre
- Design: Fully concealed slim profile
- Load Capacity: 500 kg (Floor Mount), 400 kg (Wall Hung)

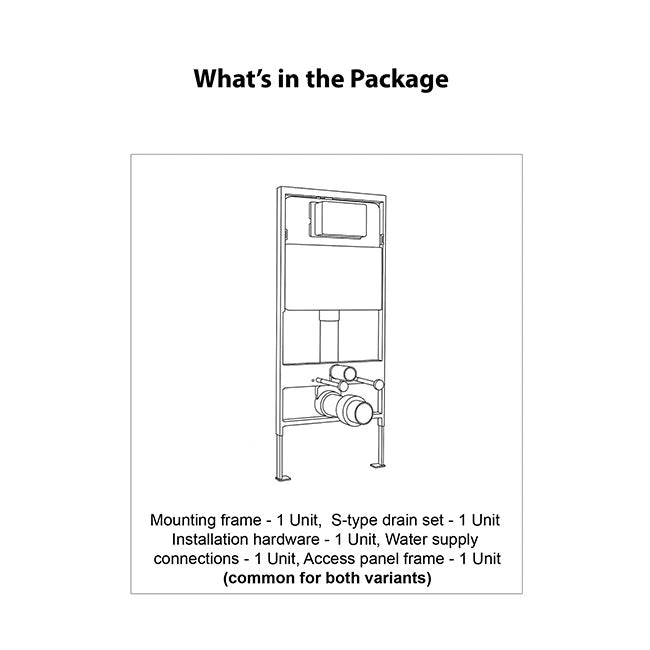

- Included: Mounting frame, S-type drain set, installation hardware, water supply connections, access panel frame
- Application: Residential and commercial bathroom installations - new construction and retrofit
Product Description
Jaquar Single Piece Slim Concealed Cistern is a fully concealed toilet cistern system available in two mounting configurations — Floor Mount (JCS-WHT-2400FS) for installations where wall structure cannot support a wall-hung WC, and Wall Hung (JCS-WHT-2400WS) for structural walls where a fully suspended installation is possible. Both configurations use the same single-piece integrated cistern with a dual flush mechanism (3 litre and 6 litre) and an S-type drain connection, hiding all cistern components behind the wall for a clean, uncluttered bathroom surface with no visible tank. The system comes as a complete installation package — mounting frame, S-type drain set with seals and fittings, all fixing hardware, water supply connections, and access panel frame are included — with the S-type drain creating a natural water seal against sewer gas and odour, and the access panel allowing future service access without wall demolition. Professional installation is recommended.
Key Features

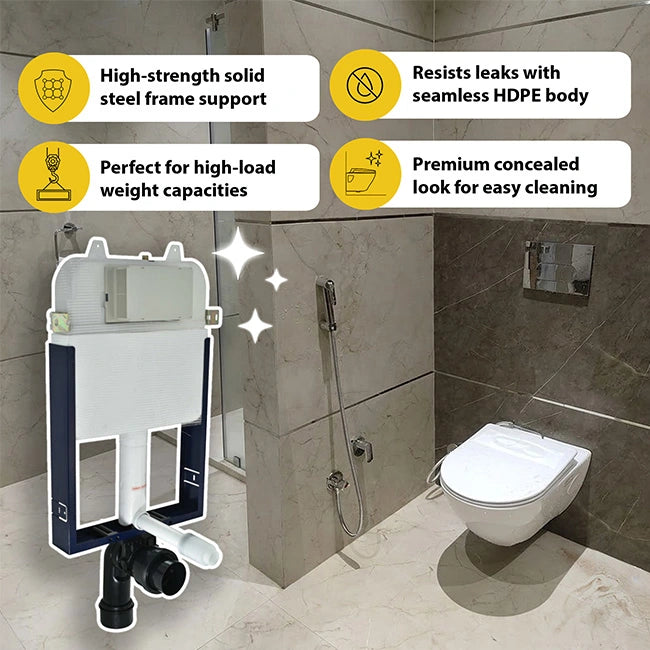

- Fully Concealed Design: Only the flush actuator plate is visible
- Dual Flush 3/6 Litre: Half flush for liquid, full flush for solid waste
- Two Mounting Options: Floor Mount for any wall type, Wall Hung for structural walls
- S-Type Drain: Curved path maintains a water seal against sewer gas and odour
- Complete Kit: Frame, drain set, hardware, supply connections, and access panel included
- Service Access Panel: Future maintenance without breaking the wall
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Jaquar Group |
| Product | Single Piece Slim Concealed Cistern |
| Floor Mount Code | JCS-WHT-2400FS |
| Wall Hung Code | JCS-WHT-2400WS |
| Flush System | Dual flush - 3 litre and 6 litre |
| Drain Type | S-Type drain connection |
| Load Capacity - Floor Mount | 500 kg |
| Load Capacity - Wall Hung | 400 kg |
| Installation Time | 3-4 hours (Floor Mount), 2-3 hours (Wall Hung) - professional installation |
| Box Contents | Single piece cistern, mounting frame, S-type drain set with seals and fittings, installation hardware, water supply connections, access panel frame, installation guide |
Which Configuration Should I Order?
- Floor Mount (JCS-WHT-2400FS): Order this if your bathroom wall cannot confirm structural support for a wall-hung WC, or your plumber recommends floor mounting for your construction type
- Wall Hung (JCS-WHT-2400WS): Order this if your bathroom has a solid structural wall capable of supporting a wall-hung WC — confirm with your plumber or civil contractor before ordering
Installation & Recommended Applications
- Installation: Confirm Floor Mount vs. Wall Hung with your plumber, fix the mounting frame, connect the cistern and S-type drain, fit the access panel before tiling, then flush-test for leaks before tiling over
- New Construction: Built into the wall for a fully integrated, seamless finish
- Renovations: Replace an exposed cistern for a modern, minimalist look
- Luxury & Commercial Spaces: Ideal for premium residences, hotels, and offices needing clean aesthetics and durable, high-cycle flush performance
- Compact Bathrooms: Frees up wall space by eliminating the visible cistern
Why Buy from HomeRun?
- Authentic Jaquar Product: Verified genuine product with full manufacturer warranty support
- 60-Minute Bangalore Delivery: Express delivery to active service zones
- Project-Friendly Availability: Single units or bulk orders for residential and commercial projects
FAQs
1) How do I choose between Floor Mount (JCS-WHT-2400FS) and Wall Hung (JCS-WHT-2400WS)?
The choice depends on your bathroom's wall construction. Wall Hung (WS) requires a solid structural wall — typically RCC or brick masonry — capable of supporting up to 400 kg. If your bathroom wall is a lightweight partition (drywall, hollow block, or glass), use Floor Mount (FS) instead, which transfers the load to the floor and can be used on any wall type. Confirm the correct configuration with your plumber or civil contractor before ordering — the mounting frames are different and cannot be swapped after purchase.
2) What is the S-type drain and why does it matter?
The S-type drain has a curved S-shaped drainage path that creates a natural water trap — a small amount of water always sits in the curve, forming a seal between the toilet outlet and the drain pipe. This seal prevents sewer gases and odours from travelling up through the drain into the bathroom. Without this trap, unpleasant odours can enter the bathroom through the drain, particularly in bathrooms that are used infrequently. The S-trap is included in the installation kit with all required seals and fittings.
3) Is everything included in the box for installation, or do I need to buy anything else?
The package includes the cistern, mounting frame, S-type drain set with seals and fittings, all installation hardware, water supply connections, access panel frame, and installation guide — everything needed for a standard installation. Your plumber will additionally need standard plumbing tools and may need to supply connection pipes to suit your specific bathroom layout. Professional installation is strongly recommended — a leak discovered after tiling requires tile demolition to fix.
4) Can this be installed in an existing bathroom during renovation?
Yes — both configurations are suitable for renovation projects. However, concealed cistern installation requires opening the wall to embed the frame and cistern, which means existing tiles will need to be removed. The renovation sequence should be: install the frame and cistern, complete all plumbing connections, test thoroughly for leaks, then tile over. The access panel frame must be installed before tiling to ensure future service access without demolition.
5) How long does installation typically take?
Professional installation takes approximately 3–4 hours for Floor Mount and 2–3 hours for Wall Hung, though actual time can vary depending on your bathroom's existing plumbing layout and wall condition. This is in addition to the tiling work that follows once the frame, cistern, and drain connections have been tested and confirmed leak-free.
