Ebco Soft Close Hinges, 1 Set (2 Nos)
Ebco Soft Close Hinges, 1 Set (2 Nos)
ಉಪಲಬ್ದವಿದೆ
ಪಿಕಪ್ ಲಭ್ಯತೆಯನ್ನು ಲೋಡ್ ಮಾಡಲು ಸಾಧ್ಯವಾಗಲಿಲ್ಲ
Product Highlights
Quick Answer: What is Ebco Soft Close Hinge used for?

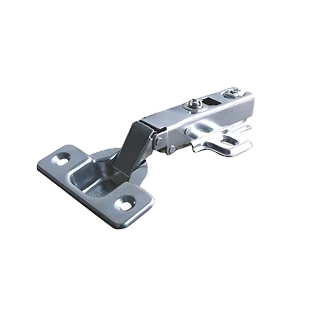

Ebco Euro Slow Motion Soft Close Hinges are concealed cabinet hinges with built-in damping system, designed for kitchen cabinets, wardrobes, and storage units to ensure silent door closing and long-lasting performance at budget-friendly prices.
- Model: Ebco Euro Slow Motion Series
- Opening Angle: 105° for comfortable access
- Door Thickness: Suitable for 16–19 mm cabinet doors
- Cup Size: 35 mm (European standard)
- Finish: Nickel-plated steel for corrosion resistance
- Maximum Door Size: 34" x 22" (850mm x 550mm) with 2 hinges

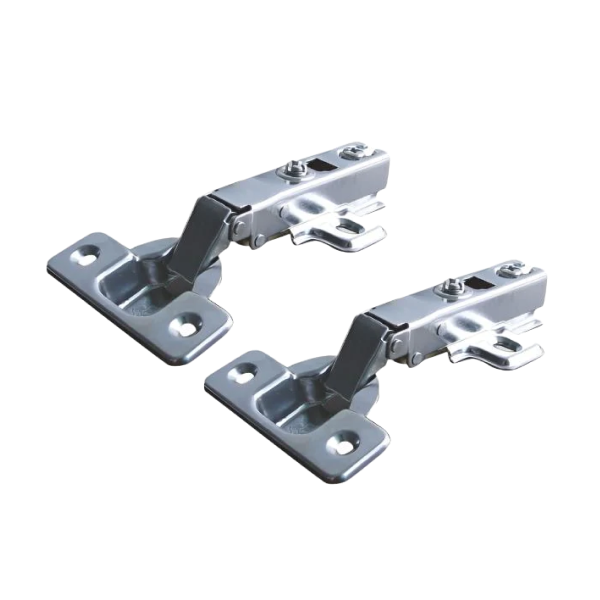

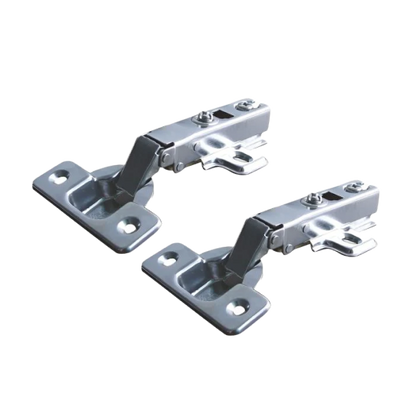

- Packaging: 1 Set (2 Hinges + Mounting Screws)
Product Description
Ebco Euro Slow Motion Soft Close Hinges deliver reliable soft-close functionality at budget-friendly prices, making them the smart choice for value-conscious homeowners and contractors. Built with an integrated damping system, these hinges automatically engage during closing to prevent door slams and protect cabinet edges.
The 105° opening angle provides full cabinet access, while the nickel-plated finish ensures corrosion resistance suitable for Indian kitchen and bathroom conditions. With a standard 35mm cup size, these hinges are compatible with existing hinge holes, making upgrades and replacements straightforward.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Hinge Type | Concealed soft-close hinge |
| Cup Diameter | 35 mm (European standard) |
| Cup Depth | 12 mm |
| Door Thickness | 16 – 19 mm |
| Opening Angle | 105° |
| Maximum Door Size | 34" x 22" (850mm x 550mm) with 2 hinges |
| Material & Finish | Nickel-plated steel |
| Mechanism | Euro Slow Motion (integrated damping) |
Crank Options Explained
- 0 Crank (Full Overlay): Door fully covers the cabinet side panel – most common in modular kitchens.
- 8 Crank (Half Overlay): Two doors share a common partition.
- 16 Crank (Inset): Door sits flush inside the cabinet opening.
Recommended Applications
- Modular kitchen cabinets
- Wardrobes and bedroom storage
- Bathroom vanities
- Budget renovation projects
- Rental property upgrades
- DIY home improvement projects
Installation Guidelines
- Drill a 35 mm cup hole with 12 mm depth.
- Fix hinge cup to the door panel.
- Mount base plate on cabinet side.
- Clip hinge onto mounting plate.
- Test soft-close action and adjust as needed.
FAQs
1) Is the soft-close mechanism built into the hinge?
Yes. The soft-close system is integrated within the hinge using Euro Slow Motion technology and does not require any external dampers.
2) Can I use Ebco hinges for kitchen cabinets?
Yes. Ebco Euro Slow Motion hinges are commonly used for modular kitchen and wardrobe doors in residential applications.
3) Are these hinges suitable for humid areas?
Yes. The nickel-plated steel finish provides corrosion resistance suitable for Indian kitchen and bathroom conditions.
4) Can I replace my existing hinges with these?
Yes. If your current doors have standard 35mm concealed hinge holes, these are direct replacements. The mounting plate design accommodates most existing installations.
5) How do Ebco hinges compare to premium brands?
Ebco provides reliable soft-close functionality at budget-friendly pricing. While premium brands offer advanced features, Ebco delivers excellent value for typical residential applications.
6) What door sizes work with these hinges?
Perfect for doors 16-19mm thick. Maximum supported door size is 34" x 22" (850mm x 550mm) when using 2 hinges. For larger doors, use 3 hinges.
7) How long do Ebco hinges typically last?
With proper installation and normal residential use, expect 5-8 years of reliable service.
