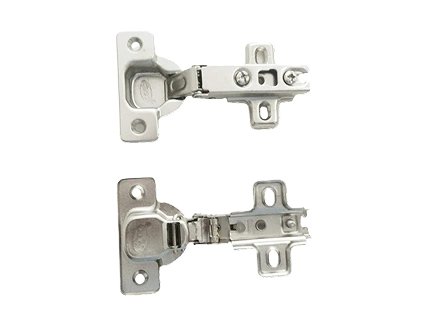

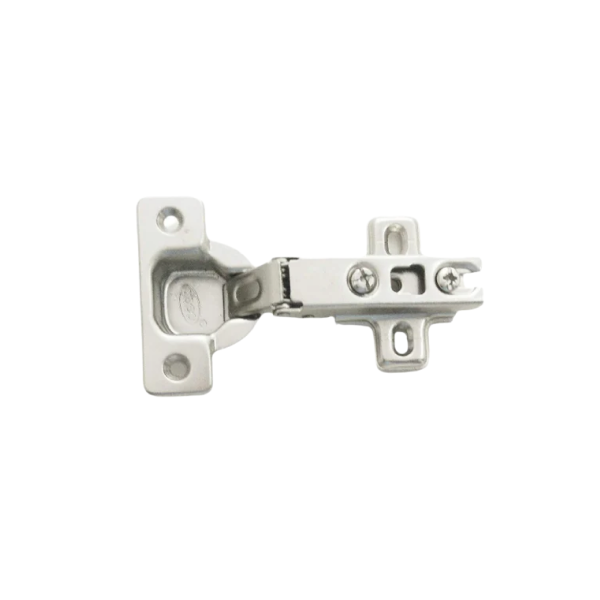

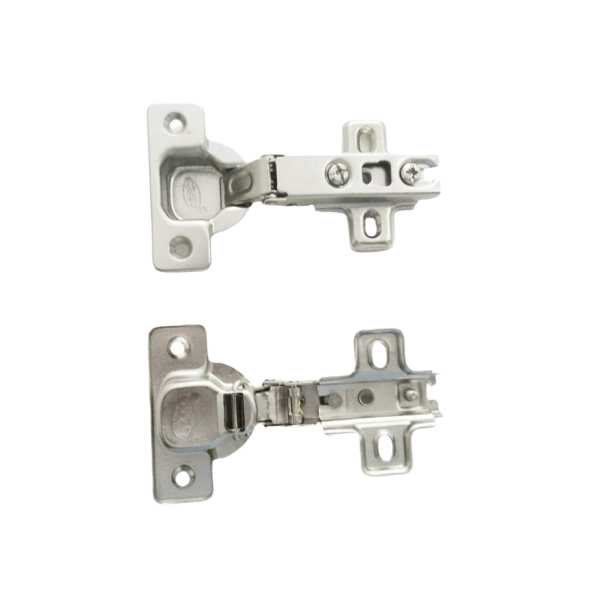

Ebco Slip On Hinge - EURO - Regular Close Hinges, 1 Set (2 Nos)
Ebco Slip On Hinge - EURO - Regular Close Hinges, 1 Set (2 Nos)
ಉಪಲಬ್ದವಿದೆ
ಪಿಕಪ್ ಲಭ್ಯತೆಯನ್ನು ಲೋಡ್ ಮಾಡಲು ಸಾಧ್ಯವಾಗಲಿಲ್ಲ
Product Highlights
Quick Answer: What is Ebco Slip On Hinge - EURO used for?
Ebco Slip On Hinge - EURO is a concealed cabinet hinge with regular close mechanism, designed for kitchen cabinets, wardrobes, and storage units to provide reliable door operation at budget-friendly prices with standard European specifications.
- Model: Ebco EURO Series (Regular Close)
- Opening Angle: 105° for comfortable access
- Door Thickness: Suitable for 16–19 mm cabinet doors
- Cup Size: 35 mm (European standard)
- Finish: Nickel-plated steel for corrosion resistance
- Crank Options: Available in 0, 8, and 16 crank
- Packaging: 1 Set (2 Hinges + Mounting Screws)
Product Description
Ebco Slip On Hinge - EURO delivers reliable cabinet door operation with standard European specifications at an economical price point. Designed for applications where regular close is sufficient, these concealed hinges provide smooth door movement and proper alignment without the added cost of soft-close mechanisms.
The 105° opening angle provides full cabinet access, while the nickel-plated steel finish ensures corrosion resistance suitable for Indian kitchen and bathroom conditions. With a standard 35mm cup size, these hinges are compatible with existing hinge holes, making upgrades and replacements straightforward.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Hinge Type | Concealed regular close hinge |
| Cup Diameter | 35 mm (European standard) |
| Door Thickness | 16 – 19 mm |
| Opening Angle | 105° |
| Material & Finish | Nickel-plated steel |
| Mechanism | Regular close (no soft-close) |
| Crank Options | 0, 8, and 16 crank available |
Crank Options Explained
- 0 Crank (Full Overlay): Door fully covers the cabinet side panel – most common in modular kitchens.
- 8 Crank (Half Overlay): Two doors share a common partition.
- 16 Crank (Inset): Door sits flush inside the cabinet opening.
Recommended Applications
- Budget kitchen cabinets
- Wardrobe and bedroom storage
- Bathroom vanities
- Rental property upgrades
- Utility and storage cupboards
- DIY home improvement projects
Installation Guidelines
- Drill a 35 mm cup hole at the appropriate depth.
- Fix hinge cup to the door panel.
- Mount base plate on cabinet side.
- Slip hinge onto mounting plate.
- Adjust door alignment as needed.
FAQs
1) Does this hinge have soft-close?
No. This is a regular close hinge without soft-close mechanism, making it more economical for budget-conscious projects.
2) Can I use Ebco EURO hinges for kitchen cabinets?
Yes. These hinges are commonly used for modular kitchen and wardrobe doors in residential applications where soft-close is not required.
3) Are these hinges suitable for humid areas?
Yes. The nickel-plated steel finish provides corrosion resistance suitable for Indian kitchen and bathroom conditions.
4) Can I replace my existing hinges with these?
Yes. If your current doors have standard 35mm concealed hinge holes, these are direct replacements.
5) What is the difference between Ebco EURO and Ebco Soft Close hinges?
Ebco EURO hinges are regular close without damping mechanism, while Ebco Soft Close hinges include integrated soft-close for silent operation.
6) Which crank option should I choose?
Choose based on your cabinet design: 0 crank for full overlay (most common), 8 crank for half overlay, or 16 crank for inset doors.
7) How many hinges do I need per door?
Use 2 hinges for doors up to 1000mm height, and 3 hinges for taller or heavier doors.
