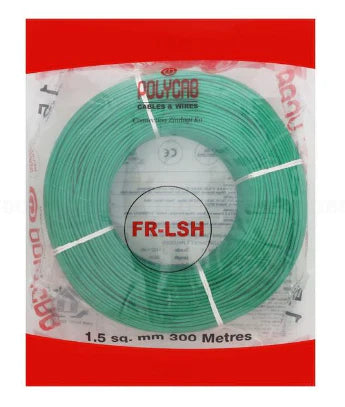

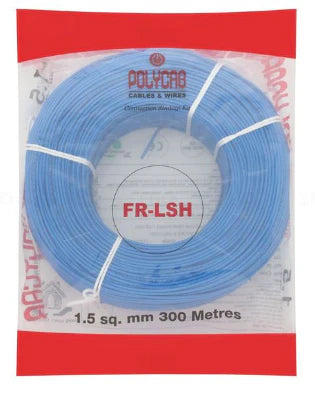

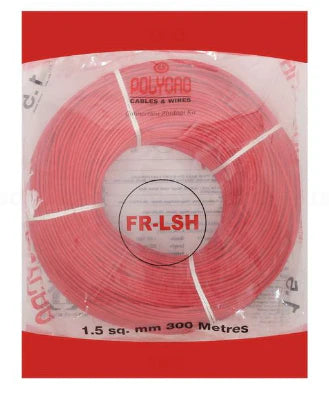

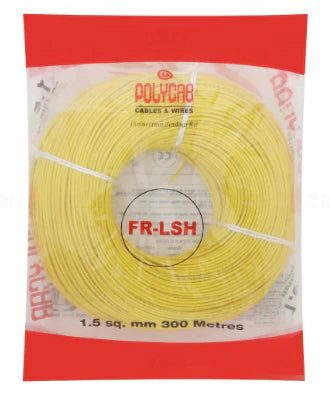

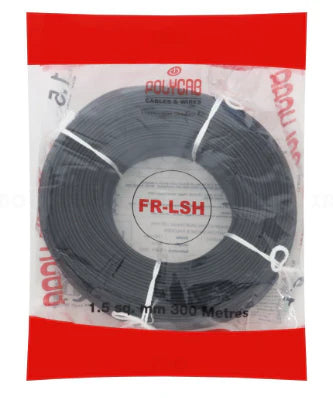

Polycab FRLS-H Single Core Wire
Polycab FRLS-H Single Core Wire
ಉಪಲಬ್ದವಿದೆ
ಪಿಕಪ್ ಲಭ್ಯತೆಯನ್ನು ಲೋಡ್ ಮಾಡಲು ಸಾಧ್ಯವಾಗಲಿಲ್ಲ
Product Highlights
Manufacturer: Polycab India Limited (Market Leader)
Grade: FRLS-H (Flame Retardant Low Smoke & Halogen-Free)
Conductor: 99.97% Pure Electrolytic Copper (Class 5 Flexible)
Available Sizes: 1.0, 1.5, 2.5 & 4.0 mm²
Coil Options: 200m and 300m professional packing
Voltage Rating: 1100V AC (Industrial Grade)
Certification: IS 694:2010 & BIS Approved
Current Rating: 16-29 Amps (depending on size)
Product Description
Key Safety Advantages:
- Zero Halogen Emission: Safe for enclosed spaces - no toxic gas release during fire
- Low Smoke Density: 60% less smoke generation aids emergency evacuation
- Flame Self-Extinguishing: Prevents fire spread along wire runs
- Lead-Free Formulation: Environmentally safe, complies with RoHS standards
- High Oxygen Index: 32% vs 21% in standard PVC (superior fire resistance)
Polycab FRLS-H Single Core Wire represents the pinnacle of electrical safety technology, engineered specifically for modern Indian construction requirements. This premium building wire combines Polycab's advanced flame-retardant compound with high-purity copper conductors to deliver uncompromised safety and performance in residential, commercial, and industrial applications.
Unlike standard PVC wires that emit toxic gases and dense smoke during fires, FRLS-H wires use halogen-free insulation that significantly reduces smoke generation while eliminating dangerous hydrogen halide gas emissions. This makes them essential for high-occupancy buildings, hospitals, schools, and premium residential projects across Bangalore.
Advanced Technical Features:
- Class 5 Flexible Conductor: Multi-strand construction (14-56 strands) for superior flexibility
- Optimized Current Rating: Enhanced ampacity due to improved heat dissipation
- Temperature Resistance: Continuous operation up to 90°C, emergency rating 160°C
- Insulation Thickness: 0.7-0.8mm precision extrusion for consistent performance
- Low Resistance: 18.1-4.95 ohms/km ensuring minimal power loss
- UV Stabilized: Suitable for exposed installations with sunlight resistance
Size-Wise Specifications & Applications
| Size (mm²) | Current Rating | Typical Applications | Price/Meter |
|---|---|---|---|
| 1.0 mm² | 16 Amps | LED lighting, control circuits, small appliances | ₹68-75 |
| 1.5 mm² | 20 Amps | General lighting, ceiling fans, 5A sockets | ₹85-92 |
| 2.5 mm² | 26 Amps | Power outlets, refrigerators, washing machines | ₹118-128 |
| 4.0 mm² | 35 Amps | Water heaters, ACs, high-load circuits | ₹142-155 |
Critical Applications for Bangalore Projects
- High-Rise Residential: Essential for apartments above 15 floors per NBC requirements
- Commercial Buildings: Mandatory for malls, offices, hotels in fire safety zones
- Healthcare Facilities: Hospitals, clinics requiring zero-toxic emission wiring
- Educational Institutions: Schools, colleges prioritizing student safety
- IT Parks & Data Centers: Preventing toxic gas damage to sensitive equipment
- Metro Stations & Airports: Public infrastructure with high evacuation requirements
Quality Assurance & Certifications:
- IS 694:2010 Certified: Meets latest Indian electrical safety standards
- BIS License: Government-approved quality mark for consumer protection
- CPRI Tested: Central Power Research Institute laboratory verification
- RoHS Compliant: Lead-free, environmentally safe manufacturing
- ISO 9001:2015: Quality management system certified production
- Polycab Warranty: Comprehensive product performance guarantee
Installation Guidelines for Bangalore Climate
Best Practices:
- Conduit Installation: Use ISI marked PVC conduits for protection and easy maintenance
- Bend Radius: Minimum 8x wire diameter to prevent conductor damage
- Termination: Use Polycab-recommended lugs and ferrules for connections
- Ambient Conditions: Suitable for Bangalore's 15-35°C temperature range
- Loading: Derate by 10% for ambient temperatures above 30°C
- Color Coding: Follow IS 732 standards - Red (Phase), Blue (Neutral), Green/Yellow (Earth)
Why Choose Polycab FRLS-H for Your Project?
Polycab's Market Leadership: As India's largest wire manufacturer with 60+ years of experience, Polycab has invested over ₹500 crores in R&D to develop advanced safety technologies. Their Halol facility produces over 1 million km of wires annually under strict quality control.
HomeRun Advantage:
- Expert Consultation: Free technical guidance on wire sizing and specifications
- Rapid Delivery: 60-minute delivery across HSR Layout, Electronic City, Sarjapur & more.
- Genuiness Guaranteed: Wires can be qr verified on the Polycab Experts app
Comparison with Standard PVC Wires:
| Parameter | Polycab FRLS-H | Standard PVC |
|---|---|---|
| Oxygen Index | 32% (Excellent) | 21% (Standard) |
| Smoke Density | 60% Reduced | High Dense Smoke |
| Toxic Gas Emission | Zero Halogen | Toxic HCl Gas |
| Temperature Rating | 90°C Continuous | 70°C Standard |
| Current Rating | 15-20% Higher | Standard Rating |
