Hettich Sensys 8638i Soft Close Hinges for 19 mm Aluminium Profile Shutters, 0 Crank, Set (2 Nos)
Hettich Sensys 8638i Soft Close Hinges for 19 mm Aluminium Profile Shutters, 0 Crank, Set (2 Nos)
ಉಪಲಬ್ದವಿದೆ
ಪಿಕಪ್ ಲಭ್ಯತೆಯನ್ನು ಲೋಡ್ ಮಾಡಲು ಸಾಧ್ಯವಾಗಲಿಲ್ಲ
Product Highlights
Quick Answer: What is Hettich Sensys 8638i used for?

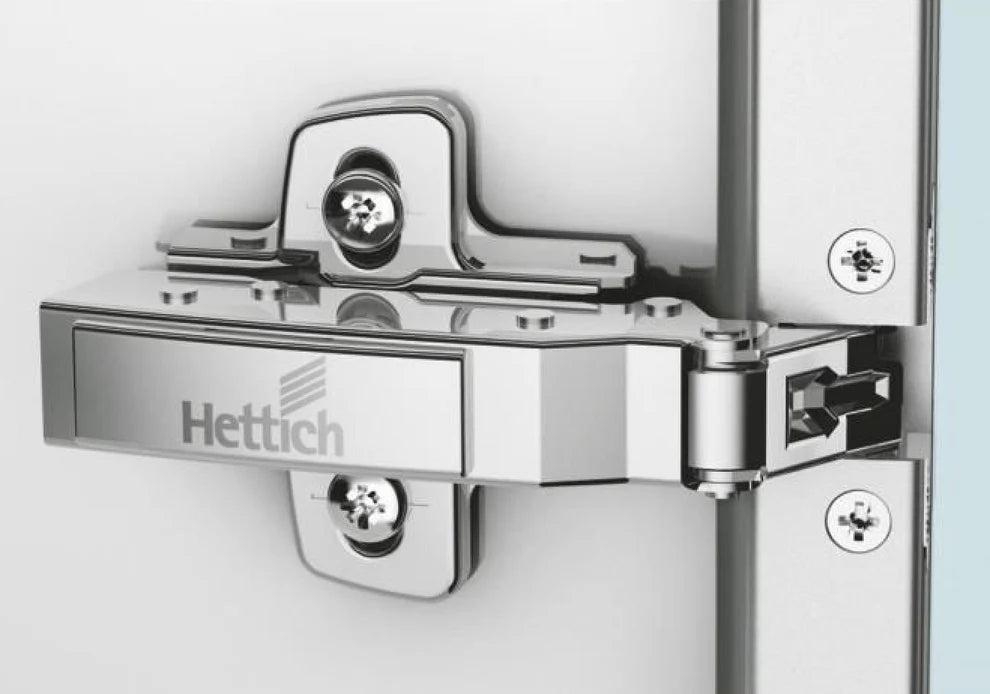

Hettich Sensys 8638i Soft Close Hinges are premium concealed hinges with integrated soft-close specifically designed for 19 mm aluminium profile shutters, providing silent, gentle closing and precise 3D adjustment for modern modular kitchens with aluminium frame doors.
- Model: Hettich Sensys 8638i (Aluminium Profile)
- Compatibility: 19 mm aluminium profile shutters
- Closing Mechanism: Integrated soft-close system
- Crank: 0 Crank (Full overlay)
- Adjustment: 3D adjustment with tool-free options
- Series: Sensys premium range

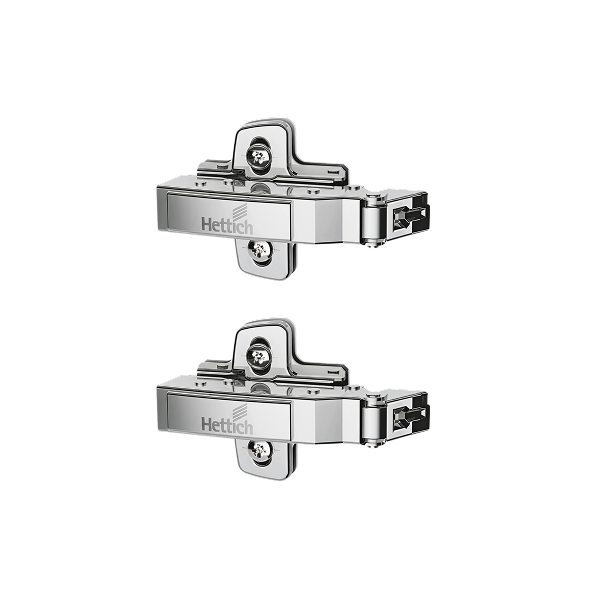

- Packaging: 1 Set (2 Hinges)
Product Description
Hettich Sensys 8638i Soft Close Hinges are engineered specifically for 19 mm aluminium profile cabinet shutters, addressing the unique mounting requirements of aluminium frame systems. Part of Hettich's premium Sensys range, these hinges deliver whisper-quiet soft-close performance combined with the durability and precision expected from German engineering.
The integrated soft-close mechanism ensures silent, gentle door closing every time, while the 3D adjustment capability allows perfect door alignment. Essential for high-end modular kitchens using 19 mm aluminium profile door systems.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Hinge Type | Concealed soft-close for aluminium profile |
| Cup Diameter | 35 mm (European standard) |
| Compatibility | 19 mm aluminium profile shutters |
| Crank Type | 0 Crank (Full overlay) |
| Adjustment | 3D adjustment with tool-free options |
| Series | Sensys (Premium range) |
| Packaging | 1 set (2 hinges) |
Recommended Applications
- 19mm Aluminium Profile Kitchens: Modern modular kitchen systems
- Premium Aluminium Frame Cabinets: High-end installations
- Contemporary Wardrobes: Aluminium profile closet systems
- Commercial Kitchens: Professional aluminium frame cabinetry
- Luxury Residences: Premium interior projects
- Designer Kitchens: High-specification modular systems
Installation Guidelines
- Profile Preparation: Ensure 19 mm aluminium profile door is properly assembled.
- Cup Installation: Drill 35mm cup hole and mount hinge.
- Base Plate Mounting: Install on cabinet using appropriate method for aluminium profile.
- Hinge Attachment: Clip hinge onto mounting plate.
- 3D Adjustment: Fine-tune overlay, depth, and height for perfect alignment.
FAQs
1) What makes Sensys 8638i different from standard hinges?
Sensys 8638i is specifically designed for 19 mm aluminium profile shutters with premium soft-close performance and mounting solutions adapted for aluminium frames.
2) Does this hinge have soft-close?
Yes. Sensys 8638i features integrated soft-close mechanism for silent, gentle door closing.
3) What is 0 Crank?
0 Crank (Full overlay) means the door fully covers the cabinet side panel, the most common configuration in modular kitchens.
4) Can I use these with standard wooden doors?
No. These hinges are specifically designed for 19 mm aluminium profile systems. Use standard Sensys hinges for wooden doors.
5) What is 3D adjustment?
3D adjustment allows fine-tuning in three dimensions: overlay (left-right), depth (in-out), and height (up-down) for perfect door alignment.
6) How many hinges do I need per door?
Use 2 hinges for doors up to 1000mm height, and 3 hinges for taller or heavier doors.
7) What makes Sensys premium?
Sensys is Hettich's premium range with superior soft-close performance, enhanced durability, and tool-free adjustment options for high-end applications.
