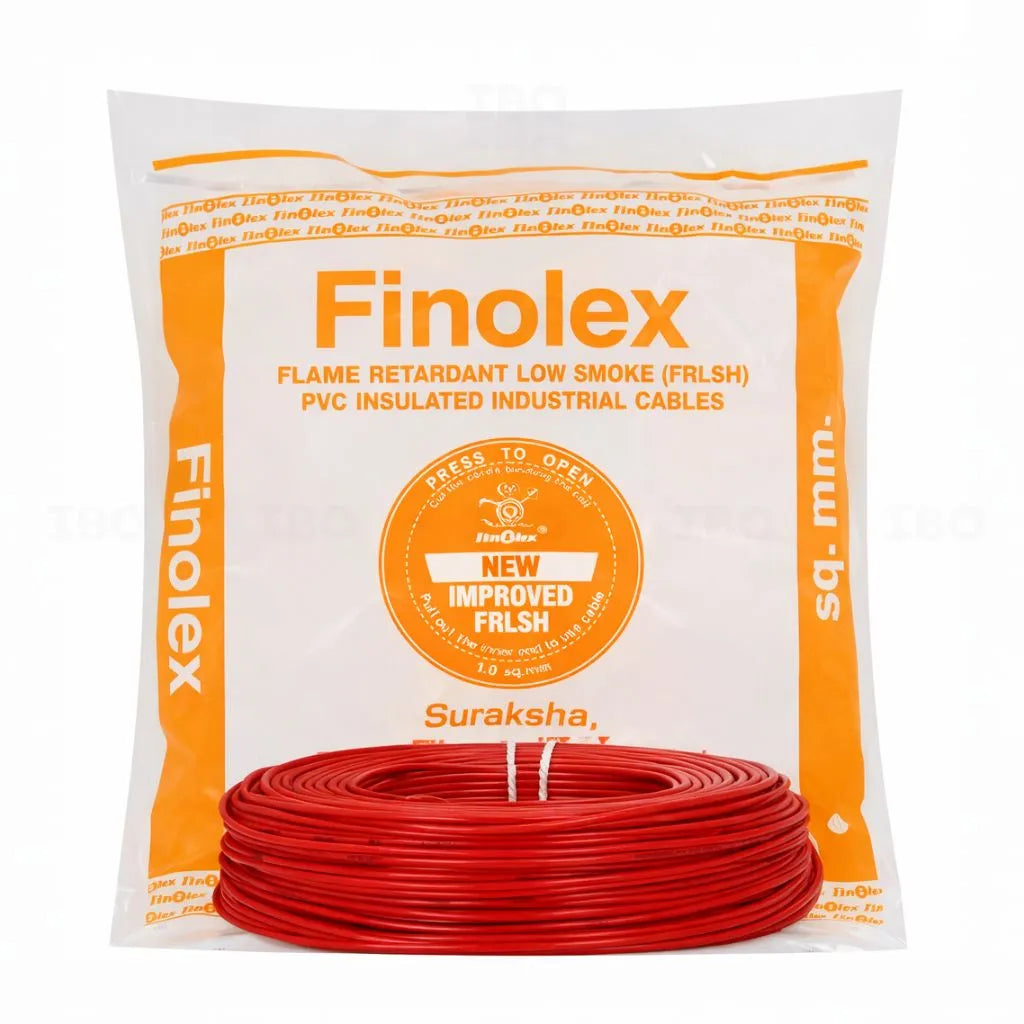

Finolex Flamegard FR-LSH Wire (200/300 meter)

Finolex Flamegard FR-LSH Wire (200/300 meter)

ಉಪಲಬ್ದವಿದೆ

Rs. 5,302.00
Rs. 9,641.00 Rs. 5,302.00
ಮಾರಾಟವಾಗಿದೆ
Incl GST ಚೆಕ್ಔಟ್ನಲ್ಲಿ ಶಿಪ್ಪಿಂಗ್ ಅನ್ನು ಲೆಕ್ಕಹಾಕಲಾಗುತ್ತದೆ.
Wire Thickness
Color: Red

Product Highlights

  • Manufacturer: Finolex Cables Ltd
  • Model: Finolex Flamegard FR-LSH Wire
  • Conductor: 99.97% pure electrolytic grade multi-stranded copper
  • Insulation: Flame Retardant Low Smoke Halogen (FR-LSH) PVC
  • Voltage Rating: Up to 1100V
  • Thickness Options: 1.0, 1.5, 2.5, 4.0, and 6.0 sq mm
  • Certification: ISI certified, compliant with IS: 694
  • Cores: 1 Core (Single Core)
  • Coil Length: 300 metres (1.0, 1.5, 2.5 sq mm) or 200 metres (4.0, 6.0 sq mm)
  • Colour: Each thickness available in 5 colours — Red, Blue, Green, Black, Yellow

Product Description

Finolex Flamegard FR-LSH Wire is a top-tier electrical cable range engineered for advanced fire protection and low-smoke emission. Built with 99.97% pure electrolytic grade multi-stranded copper, it delivers superior electrical conductivity across light-load and heavy-duty circuits for residential, commercial, and industrial use.

Unlike basic PVC wires, the FR-LSH compound restricts heat transmission and keeps visibility intact during emergencies by cutting smoke generation by more than 60%, while suppressing toxic halogen gases. The range spans five wire thicknesses (1.0 to 6.0 sq mm) and five colours, making it suitable for everything from LED lighting circuits to line-phase routing for ACs, HVAC systems, and main distribution boards.

Key Features

  • Advanced Flame Retardant: Aggressively resists flame spread during a fire
  • Low Smoke & Halogen-Free: Drastically reduces smoke density and toxic emissions
  • 100% Pure Copper: Electrolytic grade multi-stranded core conductors
  • ISI Certified Grade: Fully compliant with IS: 694 electrical standards
  • High Voltage Capacity: Safely handles installations up to 1100V

Technical Specifications

Technical Specifications (Quick Reference)

Specification Details
Brand Finolex
Size Options 1.0 / 1.5 / 2.5 / 4.0 / 6.0 sq mm
Coil Length 300 m (1.0, 1.5, 2.5 sq mm) / 200 m (4.0, 6.0 sq mm)
Colour Options Red, Black, Blue, Green, Yellow
Voltage Rating 1100 V
Rated Current Varies by thickness — see Variant Comparison below
Material & Finish 99.97% Pure Stranded Copper
Insulation Material Flame Retardant Low Smoke Halogen (FR-LSH) PVC
Number of Cores 1 Core (Single Core)
Certification IS: 694
Usage Suitability Residential / Commercial / Industrial

Variant Comparison — Thickness Options

Thickness Coil Length Best for
1.0 sq mm 300 m Light-load circuits, household LED lighting, fan wiring
1.5 sq mm 300 m Standard domestic wall outlets, moderate light loads
2.5 sq mm 300 m Power sockets, microwave lines, small geysers
4.0 sq mm 200 m Heavy appliances like 1.5–2 Ton ACs, main distribution
6.0 sq mm 200 m High-capacity industrial machines, main board connections

Available Colours

Every thickness in the Finolex Flamegard FR-LSH Wire range is available in 5 colours — Red, Black, Blue, Green, and Yellow — for standard phase, neutral, and earthing colour-coding.

Core Recommendations for Safe Installation

Installation Best Practices

  • Conduit Pulling: Pull wire carefully through conduits to avoid tearing the insulation
  • Load Calculation: Match the wire cross-section strictly with your appliance's power wattage
  • Terminal Connections: Always use crimped lugs or tight terminal pins to avoid sparking
  • Colour-Coding Routine: Use specific colours systematically for phases, neutral, and earthing

FAQs

1) What does FR-LSH stand for in electrical cables?

FR-LSH stands for Flame Retardant Low Smoke Halogen-Free. This insulation actively slows fire propagation, generates negligible smoke, and suppresses toxic halogen gases to support faster, safer emergency evacuations.

2) What coil sizes and colours are available across the range?

Coil length depends on wire thickness: 1.0 sq mm, 1.5 sq mm, and 2.5 sq mm sizes come in 300-metre coils, while the heavier-duty 4.0 sq mm and 6.0 sq mm sizes come in 200-metre coils. Every thickness is available in 5 colours: Red, Black, Blue, Green, and Yellow.

3) Which thickness should I choose for my home Air Conditioner?

The 4.0 sq mm thickness is rated for high-current loads (up to 30 Amps), making it well suited for power supply connections to domestic air conditioning units, water heaters, and heavy kitchen appliances. Lighter thicknesses (1.0–2.5 sq mm) are better suited to lighting, fans, and standard wall outlets.

4) How is FR-LSH different from standard FR or basic PVC wire?

Standard PVC and basic FR wires slow flame spread but still release dense smoke and halogen gases when burned. FR-LSH goes further — it cuts smoke density by more than 60% compared to basic PVC, keeping visibility clearer during a fire and reducing the release of toxic, corrosive halogen gases.

5) Is this wire certified and safe for commercial or industrial installations?

Yes. This wire is ISI certified and fully compliant with IS: 694 electrical standards, and is rated for residential, commercial, and industrial use up to 1100V.

Returns & Exchange Policy

  1. Return within 24 hours of delivery for:
    • Damaged or defective product
    • Wrong or missing item
  2. Product cannot be returned once installed or used
  3. Refer to Refund Policy for complete details
