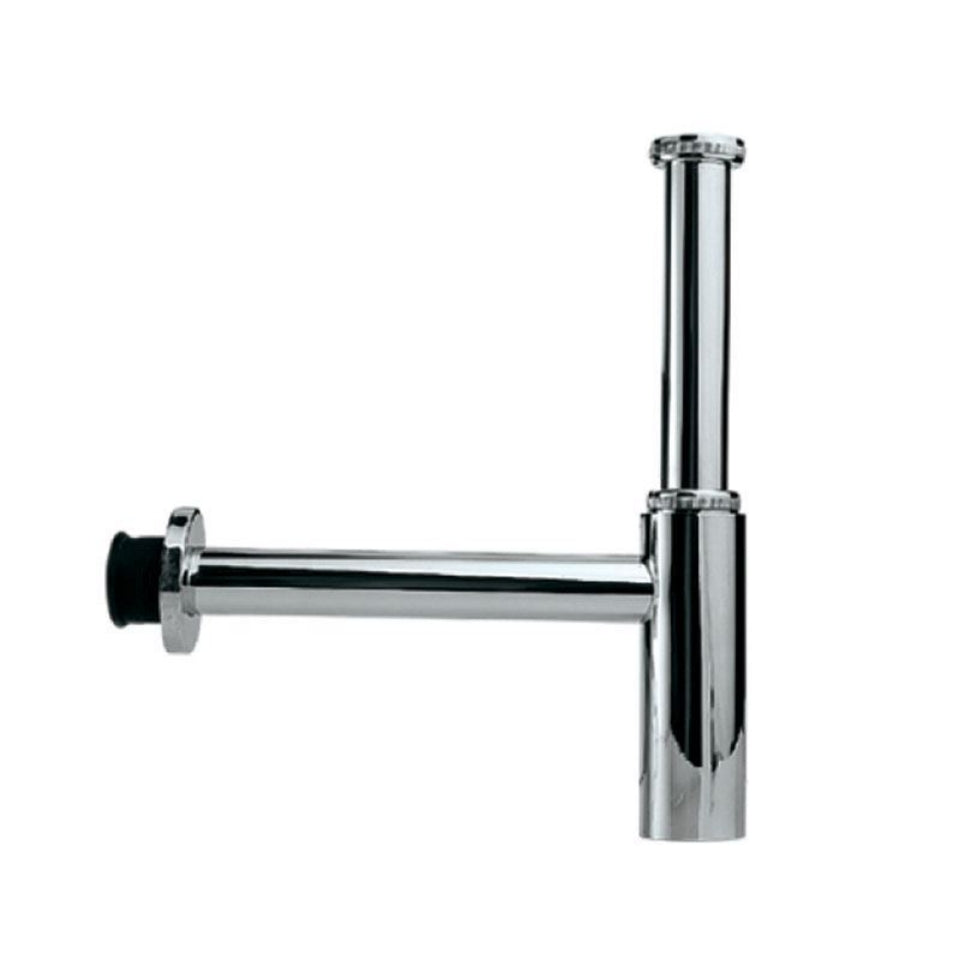

Jaquar Bottle Trap
Jaquar Bottle Trap
In stock
Regular price
Rs. 1,488.00
Regular price
Rs. 1,950.00
Sale price
Rs. 1,488.00
Unit price
per
Including GST
Shipping calculated at checkout.
Couldn't load pickup availability
Product Highlights
- Manufacturer: Jaquar Group - Allied Professional Plumbing Series
- Product Code: ALD-CHR-769L300X190
- Advanced Waste System: Bottle Trap 32mm - Professional Bathroom Drainage Solution with Odor Protection
- Complete Installation Kit: 32mm trap with 300mm & 190mm long wall connection pipes and wall flange included
- Internal Partition Design: Advanced internal partition prevents odor backflow and ensures superior water seal
- Premium Chrome Finish: Nickel-Chrome plating with corrosion resistance and mirror-like appearance
- Professional Grade Construction: IS standard brass materials ensure long-term reliability and performance
- Universal Compatibility: Standard 32mm size fits all conventional bathroom basins and vanity units
- Easy Maintenance Access: Removable bottle design allows thorough cleaning and debris removal
- Quality Assurance: Jaquar Allied series reliability with comprehensive warranty coverage
Product Description
🚿 Professional Bathroom Waste Management
- Odor Protection Excellence: Internal partition design creates superior water seal preventing sewer gas entry
- Complete Installation System: Includes 300mm & 190mm wall connection pipes with wall flange
- Space-Efficient Design: Compact bottle configuration fits in confined under-basin spaces
- Professional Grade Materials: IS standard brass construction with chrome finish for longevity
- Easy Service Access: Removable bottle body design for cleaning and maintenance convenience
- Universal Application: 32mm standard size compatible with all bathroom basin installations
Jaquar Bottle Trap 32mm represents the pinnacle of modern bathroom waste management technology, combining advanced odor protection with professional-grade construction for superior drainage performance. This premium Allied series bottle trap delivers reliable waste water management while preventing sewer gas infiltration through its innovative internal partition design.
Whether installing in luxury residential bathrooms, commercial washroom facilities, or upgrading existing drainage systems, this Jaquar bottle trap provides the perfect balance of functionality, durability, and aesthetic appeal. The complete installation kit with wall connection pipes and flange ensures professional results across all installation scenarios.
Advanced Internal Partition Technology
| Design Feature | Internal Partition System | Standard Bottle Trap | Protection Advantage |
|---|---|---|---|
| Odor Sealing | Dual-chamber water seal | Single-chamber water seal | Superior odor prevention |
| Water Retention | Enhanced water trap depth | Standard trap depth | Better seal maintenance |
| Backflow Prevention | Internal partition barrier | Open chamber design | Prevents gas backflow |
| Self-Cleaning Action | Improved water circulation | Limited circulation | Reduces debris buildup |
| Maintenance Frequency | Longer intervals required | More frequent cleaning | Reduced maintenance needs |
| Professional Grade | Commercial-grade design | Basic residential grade | Enhanced reliability |

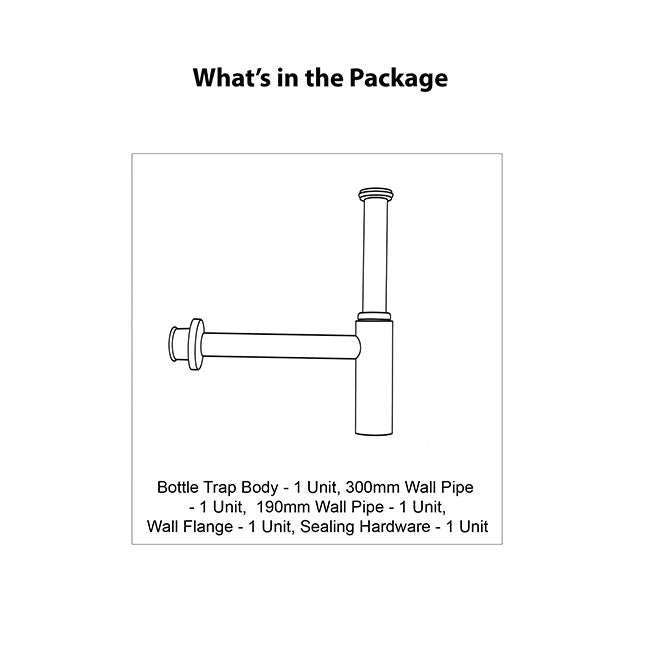

Complete Installation System Components
🔧 Professional Installation Kit
- Bottle Trap Body: 32mm chrome-finished brass body with internal partition and removable access
- 300mm Connection Pipe: Long wall connection pipe for extended reach and flexible installation
- 190mm Connection Pipe: Standard wall connection pipe for conventional installations
- Wall Flange: Chrome-plated wall flange ensures secure mounting and professional appearance
- Sealing Components: High-quality gaskets and washers for leak-proof connections
- Mounting Hardware: Complete set of nuts, washers, and fittings for secure installation

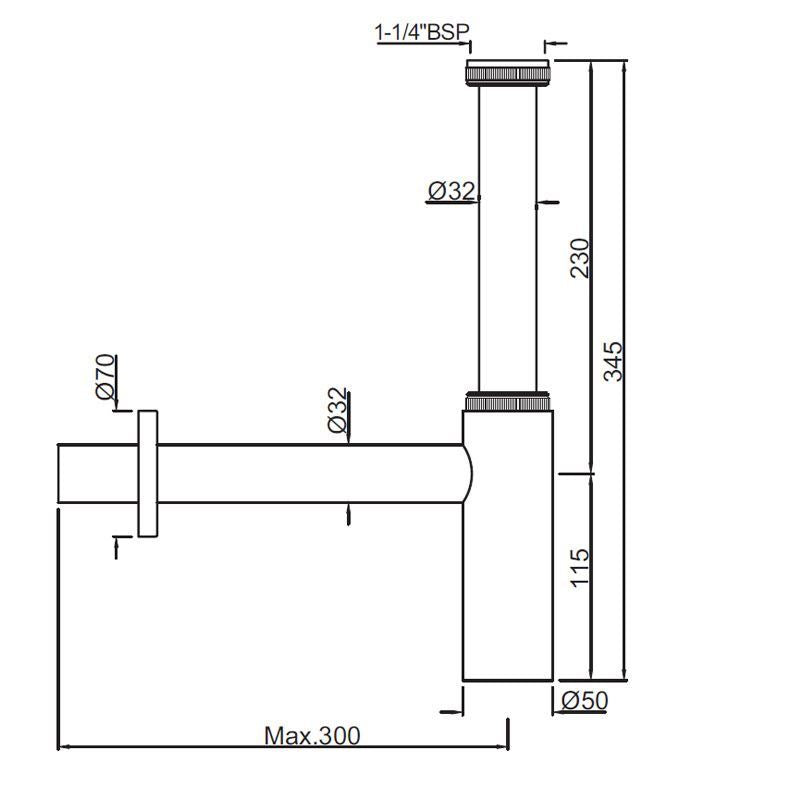

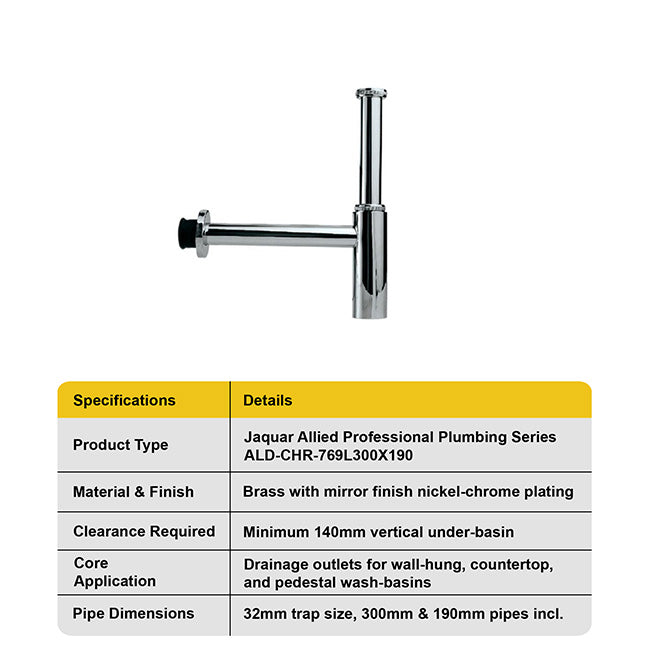

32mm Standard Size Specifications
| Specification | Measurement | Standard Compliance | Installation Benefit |
|---|---|---|---|
| Trap Diameter | 32mm (1.25 inches) | Indian Standard IS-2556 | Universal basin compatibility |
| Bottle Height | 125mm overall | Space-efficient design | Fits under most basins |
| Water Seal Depth | 50mm minimum | Building code compliance | Effective odor blocking |
| Wall Pipe Length | 300mm & 190mm options | Installation flexibility | Accommodates various depths |
| Connection Thread | 1.25" BSP standard | Universal plumbing thread | Compatible with all systems |
| Wall Flange Diameter | 60mm visible chrome | Professional appearance | Clean wall finishing |
Professional Installation Process
⚙️ Expert Installation Guidelines
- Basin Preparation: Ensure basin waste outlet is clean and properly sized for 32mm connection
- Wall Pipe Installation: Install appropriate length pipe (300mm or 190mm) through wall to sewer connection
- Wall Flange Mounting: Secure chrome wall flange ensuring proper alignment and seal
- Bottle Trap Assembly: Connect trap body to basin waste with proper gaskets and threading
- Pipe Connection: Join bottle trap outlet to wall pipe with secure threaded connection
- Water Seal Testing: Fill trap with water and verify proper seal depth and function
- Leak Testing: Test all connections under water flow for leak-proof operation
- Final Inspection: Verify proper operation, alignment, and access for future maintenance
Professional Market Applications
🏢 Complete Drainage Solutions
- Luxury Residences: Premium chrome finish complements high-end bathroom fixtures and finishes
- Modern Apartments: Space-efficient design perfect for compact bathroom layouts
- Commercial Buildings: Professional-grade construction handles heavy-duty usage
- Hotel Bathrooms: Reliable operation and easy maintenance for guest accommodation
- Healthcare Facilities: Superior odor control and easy cleaning for hygiene requirements
- Educational Institutions: Durable construction withstands high-traffic restroom use
- Restaurant Washrooms: Commercial-grade reliability for food service facility compliance
- Office Buildings: Professional appearance and low maintenance for corporate environments
Installation Compatibility Guide
📐 Universal Installation Compatibility
- Basin Types: Compatible with all standard bathroom basins, vanity units, and wash stations
- Wall Depths: 300mm pipe for thick walls, 190mm pipe for standard construction
- Plumbing Systems: Works with all residential and commercial drainage systems
- Installation Heights: Suitable for counter-top, under-mount, and pedestal basins
- Retrofit Applications: Easy replacement for existing bottle traps without modification
- Space Requirements: Minimum 140mm vertical clearance under basin required
- Access Needs: 200mm horizontal clearance for maintenance access recommended
- Building Codes: Complies with National Building Code plumbing requirements
Bangalore Express Delivery & Installation
Jaquar Bottle Trap Professional Service Network:
- 60-Minute Premium: Electronic City, HSR Layout, Koramangala, Whitefield, Indiranagar & More
- 90-Minute Standard: Marathahalli, JP Nagar, Hebbal, Banashankari, Jayanagar & More
- 120-Minute Extended: Rajajinagar, Yelahanka, BTM Layout, Malleshwaram, Basavanagudi & More
Returns & Exchange Policy
- Return Within 24 Hours of delivery under the following conditions:
- Damaged or defective product.
- Wrong or missing product.
- Product cannot be returned once used.
- Refer to Refund Policy for details.
