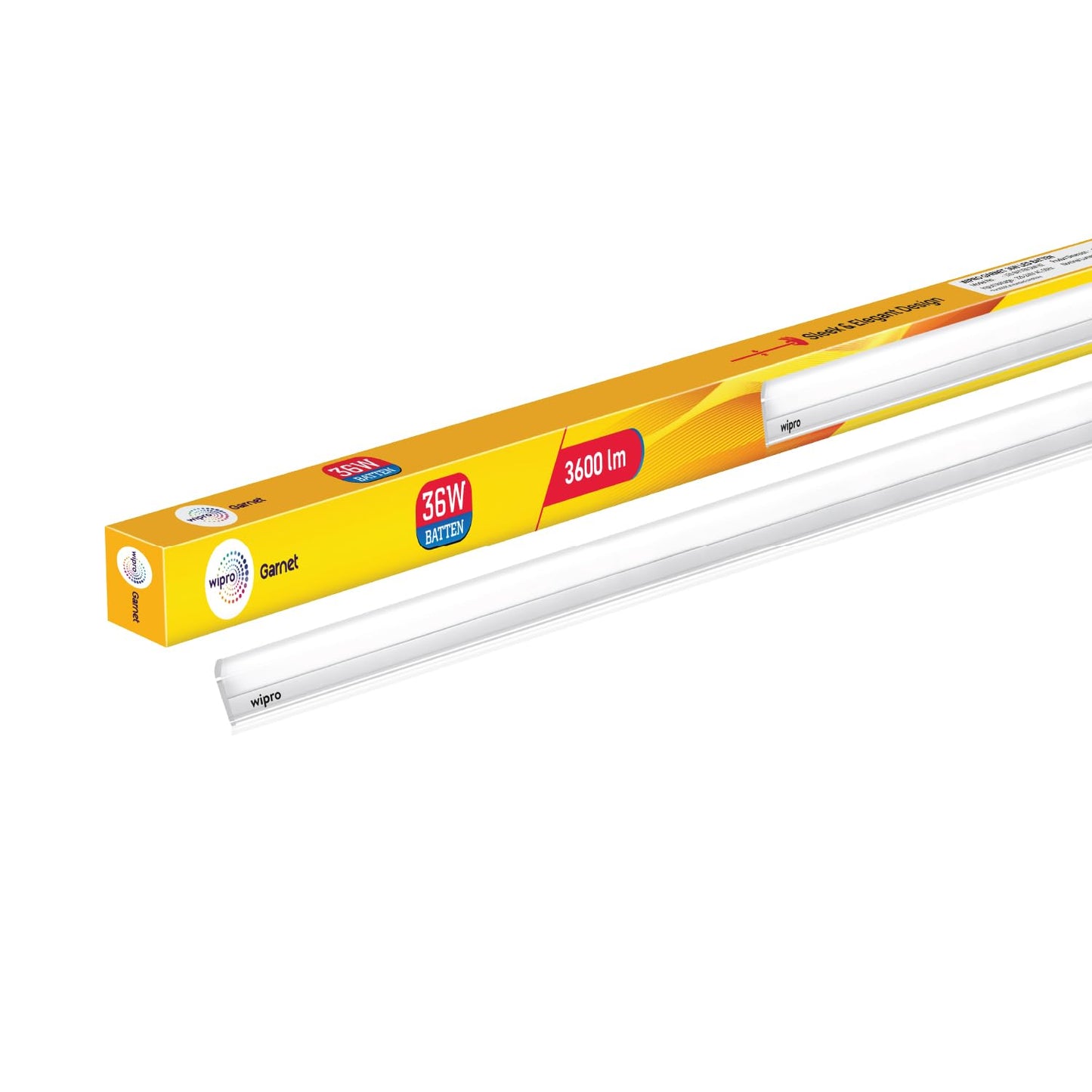

Wipro Garnet LED Batten (4ft, Cool Daylight)
Wipro Garnet LED Batten (4ft, Cool Daylight)स्टॉक में
नियमित रूप से मूल्य
Rs. 140.00
नियमित रूप से मूल्य
Rs. 450.00
विक्रय कीमत
Rs. 140.00
यूनिट मूल्य
₹0.0/
Incl GST
शिपिंग की गणना चेकआउट पर की जाएगी।
पिकअप उपलब्धता लोड नहीं की जा सकी
Product Highlights
- Manufacturer: Wipro
- Model Series: Garnet LED Batten
- Length: 4 Feet (~1200 mm)
- Colour Temperature: 6500K (Cool Daylight)
- Luminous Efficacy: ~100 lm/W
- Body Material: Polycarbonate (36W adds Aluminium Heat Sink)
- Lifespan: Up to 15,000 Hours
- Available Wattages: 22W and 36W
Product Description
Wipro Garnet LED Batten illuminates your home or commercial space with highly efficient, energy-saving lighting. Designed to replace outdated, energy-consuming glass tube lights, this sleek 4-foot slim linear batten distributes uniform, shadow-free illumination across any room. Featuring high-grade LM-80 tested LEDs and a robust heat sink, it provides non-flickering, glare-free lighting while keeping energy bills to a minimum.
Available in two high-performance variants — 22W for standard domestic spaces and 36W for high-brightness areas requiring intense clarity — this batten line represents the perfect synergy of modern aesthetic appeal and daily utility.
Key Features
- Industry-Leading Efficacy (~100 lm/W): Converts electricity into crisp light with minimal energy waste, slashing electricity consumption by up to 60% compared to traditional FTL fixtures.
- Glare-Free, Eye-Safe Uniform Light: A high-quality polycarbonate diffuser smoothly scatters the light, ensuring no dark spots, minimized shadows, and no eye strain during prolonged exposure.
- Advanced Thermal Management: An integrated aluminium extruded heat sink (36W) and premium composite materials efficiently channel away heat, guaranteeing longer product life without dimming over time.
- LM-80 Tested LED Technology: Top-tier LED chips verified by LM-80 testing standards ensure colour stability and excellent lumen maintenance over thousands of hours of operation.
- Grid Resiliency (Surge Protection): An internal driver handles volatile grid dynamics with a wide voltage range and up to 2.5 kV surge protection.
- Eco-Friendly and Safe Composition: Crafted entirely free from harmful mercury or lead, emitting zero UV or IR radiation, keeping your home environment completely safe.
Variant Comparison
| Variant | Lumen Output | Body Material | Best for |
|---|---|---|---|
| 22W | ~2200 Lumens | Polycarbonate | Standard-sized bedrooms, kitchens, dining areas, hallways, and covered balconies needing balanced, comfortable daylight visibility |
| 36W | ~3600 to 3660 Lumens | Polycarbonate with Aluminium Heat Sink | Home offices, study rooms, large drawing rooms, retail showrooms, garages, open workspaces, and commercial storage rooms |
Technical Specifications
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Colour Temperature (CCT) | 6500K (Cool Daylight) |
| Luminous Efficacy | ~100 to 102 lm/W |
| Light Type / Profile | Linear Straight T8/T5 Profile |
| Operating Voltage Range | 100V – 300V AC, 50/60 Hz |
| Surge Protection | Up to 2.0 kV / 2.5 kV (variant-dependent) |
| Mounting Mechanism | Wall/Ceiling Mounting Clips (Included) |
| Material & Finish | Polycarbonate (36W adds Aluminium Heat Sink) |
| Warranty | Up to 15,000 Hours rated lifespan |
Mounting & Maintenance Guidance
What to know before and after installation
- Mounting Height: For even illumination without strict directional shadows, mount the batten on walls centered at 7 to 8 feet from the floor level. It can also be anchored directly to concrete ceilings.
- No Choke or Starter Needed: The fully integrated electronic driver means you wire it directly into your 240V mains — no separate copper chokes or starters required.
- Cleaning: The polycarbonate frame resists dust accumulation; wipe the exterior casing with a dry microfiber cloth occasionally to keep light output at its brightest.
- Safety Note: Always turn off the main switch prior to surface cleaning.
Recommended Applications
Where this product fits best
- Bedrooms & Living Areas (22W): Balanced, comfortable daylight visibility for everyday residential rooms.
- Kitchens & Dining Areas (22W): Uniform, shadow-free light for daily household tasks.
- Hallways & Balconies (22W): Reliable general-purpose lighting for transitional and covered spaces.
- Home Offices & Study Rooms (36W): Sharp, intense visibility for reading, sewing, or focused task work.
- Retail Showrooms & Workspaces (36W): High-brightness clarity for commercial and product-showcasing environments.
Installation Guidelines
Step-by-Step Installation
- Unpack the batten along with the supplied mounting brackets/clips and wall plugs.
- Mark and drill two holes aligned to the clip positions on your wall or ceiling.
- Anchor the clips securely into place using the supplied screws.
- Lock the batten housing onto the mounted clips.
- Complete the basic electrical terminal connection to your mains wiring.
- Switch on the mains and confirm steady, flicker-free illumination.
Why Buy from HomeRun?
- Authentic Wipro Hardware: Verified genuine products with manufacturer warranty
- 60-Minute Bangalore Delivery: Express delivery to active service zones for urgent project needs
- Project-Friendly Pricing: Suitable for single-unit replacements and full bulk fitouts
FAQs
1) Does this LED tube light require an external choke or starter to operate?
No, it does not. Traditional fluorescent tubelights relied on separate copper chokes and starters that frequently failed or caused buzzing noises. The Wipro Garnet LED Batten features a fully integrated electronic driver embedded within its slim profile casing — you simply attach the fixture to the wall bracket and wire it directly into your 240V home mains.
2) What are the core differences between the 22W and 36W variants?
While both variants span 4 feet and emit a crisp 6500K Cool Daylight glow, they differ in brightness output. The 22W model produces roughly 2200 lumens, making it an energy-saving option for everyday rooms. The 36W model throws out over 3600 lumens, ideal for tasks requiring sharp, intense visibility like reading, sewing, or product showcasing.
3) Will this LED batten flicker during high voltage fluctuations?
Wipro has engineered the Garnet line to cope with variable Indian electrical grids, built to accept a broad input voltage range of 100V up to 300V AC. Within this range, light output remains constant, stable, and completely flicker-free.
4) What does "LM-80 tested" mean for this product?
LM-80 is an international standard testing method that evaluates how well an LED light source maintains its brightness and colour precision over extended operational timelines. Because the Wipro Garnet relies exclusively on LM-80 tested LEDs, the light won't shift colours or prematurely lose vibrancy, retaining high efficiency throughout its service life.
5) How easy is it to install this fixture on a wall?
Installation is straightforward. Every batten package comes with basic wall-mounting accessories, including mounting brackets/clips and wall plugs. You drill two holes aligned to the clips, anchor them with the supplied screws, lock the batten housing into place, and complete the basic electrical terminal connection.
