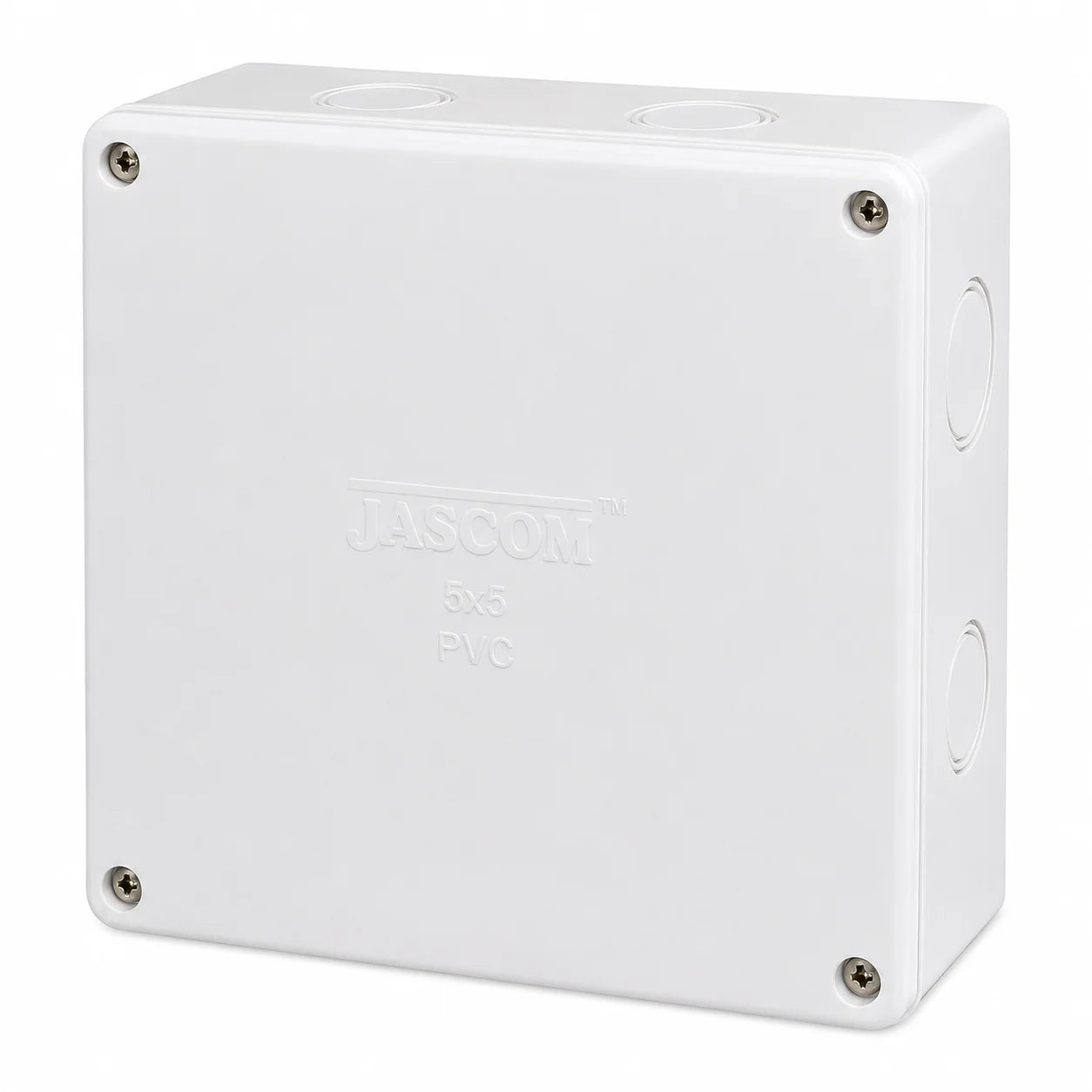

Jascom PVC Junction Box, 5x5 Inch
Jascom PVC Junction Box, 5x5 Inchस्टॉक में
नियमित रूप से मूल्य
Rs. 59.00
नियमित रूप से मूल्य
Rs. 599.00
विक्रय कीमत
Rs. 59.00
यूनिट मूल्य
₹0.0/
Incl GST
शिपिंग की गणना चेकआउट पर की जाएगी।
पिकअप उपलब्धता लोड नहीं की जा सकी
Product Highlights
- Manufacturer: Jascom
- Product Type: Surface-mount PVC junction box
- Box Size: 5 x 5 x 2 inches
- Material: High-impact resistant PVC polymer
- Thread Component: Heavy-duty brass/copper screw sleeves
- Colour: Industrial gloss white
- Mounting: Universal wall/ceiling surface mount
Product Description
The Jascom 5x5 PVC Junction Box is a premium, high-capacity surface-mount electrical enclosure designed to safely route, manage, and isolate delicate wiring connections. Specifically optimized for indoor and outdoor CCTV camera mounting, security installations, and general home or industrial grid splicing, this heavy-duty box protects wire points from dust, humidity, and accidental structural contact.
Built with high-grade PVC material and robust brass/copper internal pins, it eliminates messy wiring loops to deliver a clean, professional setup finish. The expanded 5x5-inch footprint gives it more working room than smaller enclosures, making it a practical choice wherever thick cable configurations, loops, or multiple connectors need to be housed together.
Key Features
- High-Capacity 5x5 Layout: An expanded 5x5-inch square space easily fits thick cable configurations, loops, baluns, and video connectors.
- Industrial PVC Composition: Forged from heat-resistant, non-conductive, and impact-resistant PVC polymer that stands up to heavy wear.
- Brass/Copper Thread Points: Robust copper/brass internal pin threads ensure secure, strip-resistant screw placements.
- Pre-Marked Knockouts: Multi-directional side knockouts enable flexible cable or conduit entries from any layout orientation.
- Weatherproof Protection: A flush-sealing lid design creates an effective barrier against rain splashes, dust settlement, and debris.
Technical Specifications
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Product Enclosure Type | Surface-mount square junction box |
| Chassis Dimensions | 5 x 5 x 2 inches (L x W x D) |
| Base Material Build | High-impact resistant PVC polymer |
| Thread Component | Heavy-duty brass/copper screw sleeves |
| Weather Protection Level | Dust-proof, splash-water resistant design |
| Entry Configurations | Integrated pre-marked circular wall knockouts |
| Mounting Capability | Universal wall/ceiling surface mount |
| Material & Finish | Industrial gloss white PVC |
Camera Mounting & Maintenance Details
Built for CCTV mounting and repeat access
- Direct Camera Mounting: The flat PVC lid can be drilled to anchor bullet or dome camera bases directly, feeding cables through a central hole to keep wiring joints out of sight.
- Strip-Resistant Threads: Threaded copper/brass pins in the internal corners allow the lid to be opened and resealed repeatedly during maintenance without stripping.
- Non-Conductive Mounting: The PVC construction naturally eliminates grounding problems when mounted straight onto metal framing bars.
- Splash-Resistant, Not Submersible: Fully weatherproof against rain and spray, but not IP68-rated — silicone sealant on open cable holes is recommended for heavy downpour exposure.
Recommended Applications
Where this product fits best
- CCTV Surveillance Mounts: Housing bulky video baluns, power DC plugs, and RJ-45 jacks safely beneath dome or bullet camera bases.
- Smart Home Automation: Concealing localized smart relays, controllers, and multi-wire terminal splices inside rooms.
- Conduit Network Routing: Serving as a clean transitional interface box where separate wall conduit pipes gather or branch outward.
- Outdoor Lighting Connections: Protecting cable connections for landscape LEDs, porch lighting, and gate lighting arrays from weather.
Why Buy from HomeRun?
- Genuine Jascom Hardware: Verified authentic instruments directly backed by full consumer protections.
- 60-Minute Bangalore Delivery: Express fulfillment directly to your current project site when time is tight.
- Project-Friendly Pricing: Transparent wholesale structures optimized for industrial supply pools and home workshops alike.
FAQs
1) Can I mount a security camera base directly onto the cover lid of this box?
Yes. This is one of its primary design functions. The robust PVC flat surface can be drilled through to anchor bullet or dome camera bases with standard self-tapping screws, feeding cables into the box through a central hole and keeping delicate wiring joints out of sight.
2) What is the main structural advantage of internal brass or copper pin sleeves?
Standard low-end plastic junction boxes feature simple plastic screw guides that easily crack or strip when tightened. Jascom integrates threaded copper/brass pins into the internal corners, allowing the lid to be opened and resealed repeatedly during maintenance without stripping the threads.
3) How do I break open the side cable entry ports properly?
The sides feature pre-scored, thin circular indentations known as knockouts. Avoid using a heavy hammer, as this can crack the main box frame. Instead, place the tip of a flathead screwdriver against the pre-marked edge line and tap it gently to pop the circular tab out cleanly.
4) Is this box certified to be completely submerged under deep water pools?
No. While the enclosure is fully weatherproof and splash-resistant against seasonal rain showers and spray back, it is not an IP68-rated underwater unit. For outdoor setups exposed to heavy downpours, sealing any open cable holes with silicone sealant or liquid gaskets is recommended.
5) Does the box come in colours other than white?
The standard finish is industrial gloss white. If you need a different colour or finish for a specific installation, please check with HomeRun before ordering, as this may vary by batch or require a custom request.
