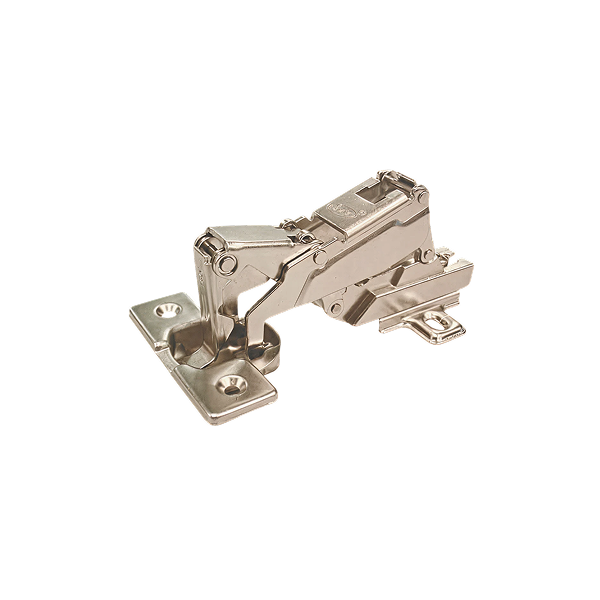

Ebco 165° Hinge, Regular Close, 1 Set (2 Nos)
Ebco 165° Hinge, Regular Close, 1 Set (2 Nos)
स्टॉक में
पिकअप उपलब्धता लोड नहीं की जा सकी
Product Highlights
Quick Answer: What is Ebco 165° Hinge used for?
Ebco 165° Hinge is a wide-angle concealed cabinet hinge with regular close mechanism, designed for corner cabinets, bi-fold doors, and special applications requiring extra-wide opening angles beyond standard 105° hinges.
- Model: Ebco 165° Hinge (Regular Close)
- Opening Angle: 165° for wide access
- Door Thickness: Suitable for 16–19 mm cabinet doors
- Cup Size: 35 mm (European standard)
- Finish: Nickel-plated steel
- Application: Corner cabinets, bi-fold doors, special installations

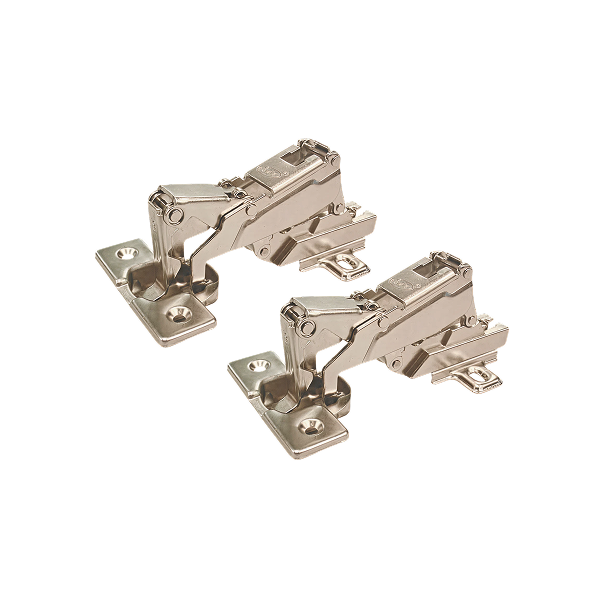

- Packaging: 1 Set (2 Hinges + Mounting Screws)
Product Description
Ebco 165° Hinges provide extra-wide opening angles for specialized cabinet applications where standard hinges cannot deliver sufficient access. With a 165° opening angle, these hinges are essential for corner cabinets, bi-fold door systems, and other configurations requiring maximum door swing.
The regular close mechanism provides reliable door operation without soft-close, making these hinges economical for applications where silent closing is not required. With a standard 35mm cup size, these hinges are compatible with existing hinge holes, simplifying installation in specialized cabinet configurations.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Hinge Type | Wide-angle concealed hinge |
| Cup Diameter | 35 mm (European standard) |
| Door Thickness | 16 – 19 mm |
| Opening Angle | 165° |
| Material & Finish | Nickel-plated steel |
| Mechanism | Regular close (no soft-close) |
| Packaging | 1 set (2 hinges + screws) |
Recommended Applications
- Corner Kitchen Cabinets: Maximum access to corner storage
- Bi-Fold Door Systems: Folding door configurations
- L-Shaped Cabinets: Special cabinet geometries
- Wardrobe Corner Units: Closet corner access
- Special Installations: Custom cabinet configurations
- Tight Spaces: Where wide opening is essential
Installation Guidelines
- Drill a 35 mm cup hole at appropriate depth.
- Fix hinge cup to the door panel.
- Mount base plate on cabinet side.
- Attach hinge to mounting plate.
- Verify 165° opening clearance before final installation.
Important: Ensure adequate clearance for 165° door swing in your cabinet configuration.
FAQs
1) What is special about 165° opening angle?
The 165° opening angle provides extra-wide access essential for corner cabinets and bi-fold door systems where standard hinges cannot open wide enough.
2) Does this hinge have soft-close?
No. This is a regular close hinge without soft-close mechanism, making it economical for specialized applications.
3) Can I use these for standard cabinets?
While possible, these are designed for special applications requiring wide opening angles. Standard 105° hinges are more suitable for typical cabinets.
4) Are these suitable for corner kitchen cabinets?
Yes. These hinges are ideal for corner cabinets where maximum door swing is needed for proper access.
5) What door thickness do these fit?
These hinges are designed for 16–19 mm cabinet doors.
6) Can I replace my existing hinges with these?
Yes, if your current doors have standard 35mm concealed hinge holes. However, verify you have clearance for the 165° opening angle.
7) How many hinges do I need per door?
Use 2 hinges for doors up to 1000mm height, and 3 hinges for taller or heavier doors.
