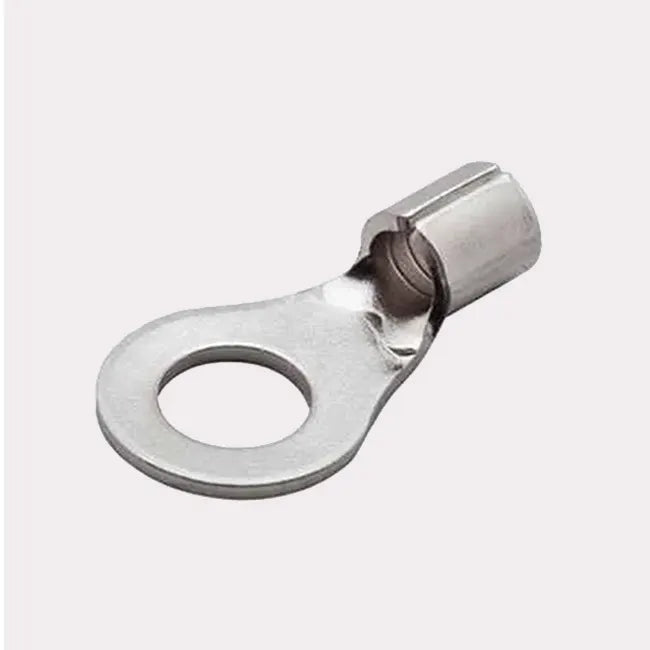

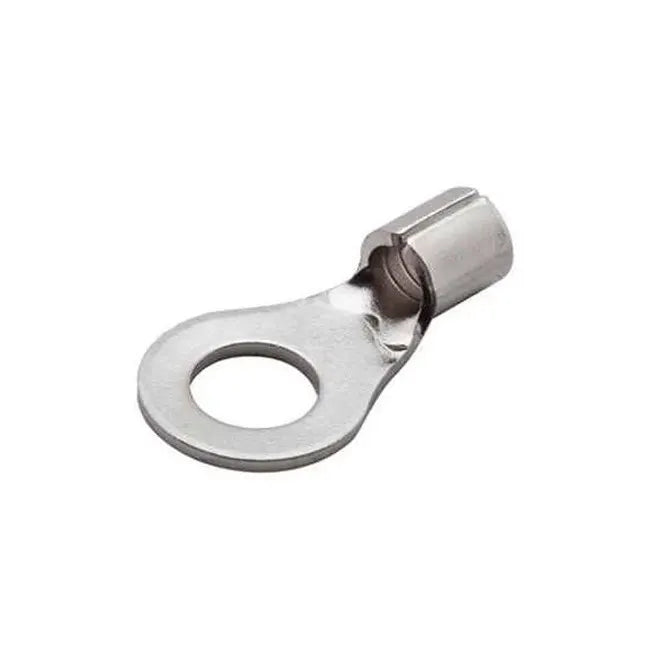

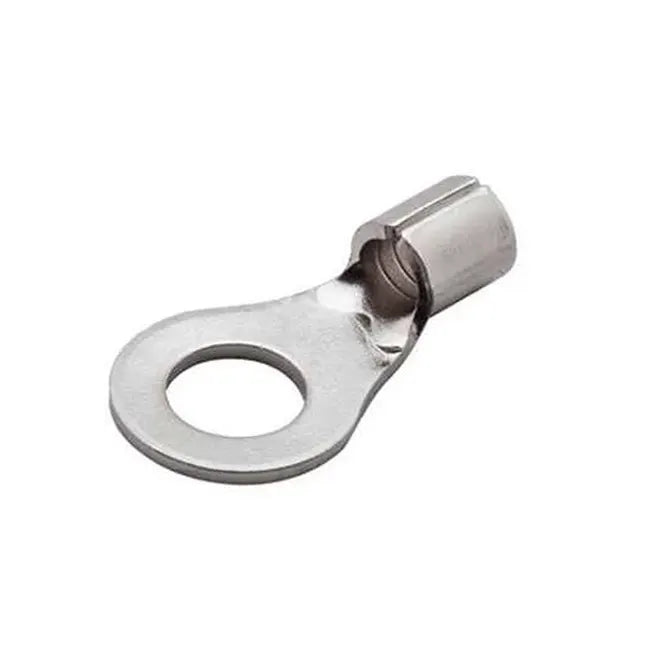

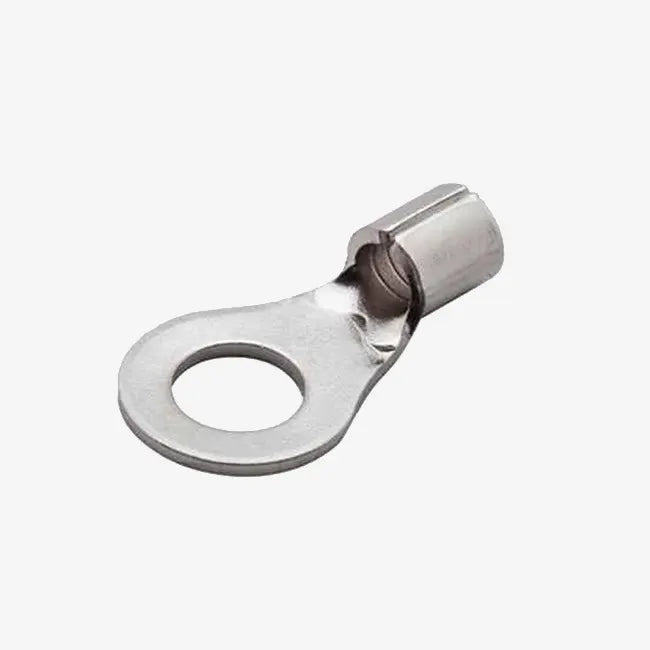

Dowells Copper Ring Terminal (Crimp-on Cable Lug)- 200 Nos/Pack
Dowells Copper Ring Terminal (Crimp-on Cable Lug)- 200 Nos/Packस्टॉक में
नियमित रूप से मूल्य
Rs. 714.00
नियमित रूप से मूल्य
विक्रय कीमत
Rs. 714.00
यूनिट मूल्य
₹0.0/
Incl GST
शिपिंग की गणना चेकआउट पर की जाएगी।
पिकअप उपलब्धता लोड नहीं की जा सकी
Product Highlights
- Manufacturer: Dowells (Polycab India Ltd.)
- Product: Copper Ring Terminal - Crimp-on Cable Lug
- Pack Size: 200 pieces per pack
- Material: EC-Grade Electrolytic Copper (IS-191)
- Finish: Electro-Tin Plated - corrosion and oxidation resistant
- Insulation: Non-Insulated
- Installation: Compression crimp - no soldering required
- Application: Power distribution panels, control racks, industrial motors, and automotive electricals
Product Description
Dowells Copper Ring Terminal (Crimp-on Cable Lug) is a non-insulated, electro-tin plated EC-grade copper ring lug for high-performance electrical termination in industrial panels, control racks, and automotive wiring. The seamless malleable barrel compresses uniformly under crimping pressure without cracking, creating a cold-weld bond between the copper strands and the barrel wall - no soldering required. The tin plating protects wire joints from moisture and oxidative corrosion. Supplied in packs of 200 pieces, available across 4 variants covering cable cross-sections from 1.5 sqmm to 6.0 sqmm and stud sizes from M4 to M6 - select the correct item code for your wire size and terminal bolt diameter.
Key Features
- EC-Grade electrolytic copper: High-purity copper for minimal electrical resistance and maximum conductivity
- Electro-tin plated: Full tin coating protects against moisture, rust, and oxidative corrosion
- Seamless malleable barrel: Uniform compression under crimping - no cracking under heavy tool pressure
- No soldering required: Compression crimp creates a cold-weld bond - faster installation, no heat risk
- Ring / circular lug design: Stays anchored to the terminal stud even under vibration in heavy machinery
Variant Selection - Choose the Correct Item Code
| Item Code | Cable Cross-Section | Stud / Bolt Hole Size | Pack Qty |
|---|---|---|---|
| RS-7004 | 1.5 sqmm | M4 (4mm) | 200 pcs |
| RS-7009 | 2.5 sqmm | M4 (4mm) | 200 pcs |
| RS-7010 | 2.5 sqmm | M5 (5mm) | 200 pcs |
| RS-7017 | 4.0 - 6.0 sqmm | M6 (6mm) | 200 pcs |
Technical Specifications
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Brand | Dowells (Polycab India Ltd.) |
| Terminal Shape | Ring / Circular Lug |
| Material | Electrolytic Copper - IS-191 Standard |
| Finish | Electro-Tin Plated |
| Insulation | Non-Insulated |
| Installation | Compression Crimp - Solderless |
| Dimensional Accuracy | Within ±5% standard industrial tolerance |
Installation Notes
Important - Read Before Crimping
- Use a calibrated crimping tool: Always use a manual or hydraulic crimping tool matched to the wire thickness - an undersized or oversized die will produce a weak joint
- Strip cleanly: Use stripping pliers to remove the outer insulation without scratching the copper core strands
- Add insulation after crimping: These lugs are non-insulated - wrap or slide a heat-shrink tube or insulating sleeve over the bare crimp barrel after compression to protect against short circuits and accidental contact
Recommended Applications
Where Dowells Copper Ring Terminals fit best
- Power distribution panels: Wire terminations in industrial switchgears, busbars, and distribution boards
- Control and automation racks: Secure multi-point terminations inside relay cabinets and PLC boards
- Industrial motors: Connecting power supply cables to motor terminal boxes
- Automotive electricals: Vehicle chassis grounding, battery terminals, and alternator connections
Why Buy from HomeRun?
- Authentic Dowells Product: Verified genuine Polycab India manufactured terminals
- 60-Minute Bangalore Delivery: Express delivery to active service zones - ideal for panel construction and wiring projects
- Project-Friendly Availability: Delivered as a 200-piece pack - order the variant and quantity your project needs
FAQs
1) What is the difference between RS-7009 and RS-7010 - both show 2.5 sqmm?
Both fit 2.5 sqmm wire but differ in stud hole size. RS-7009 has an M4 (4mm) hole for panels with M4 terminal screws. RS-7010 has an M5 (5mm) hole for panels with M5 studs. Select based on the bolt or terminal screw size in your panel - not the wire size.
2) Do these terminals require soldering?
No - these are compression crimp lugs. A properly crimped joint creates a cold-weld between the copper strands and barrel wall that is mechanically and electrically superior to soldering. Use a calibrated crimping tool matched to the wire cross-section.
3) Can RS-7017 handle multi-strand flexible cables up to 6 sqmm?
Yes - the RS-7017 barrel accommodates cable cross-sections from 4.0 to 6.0 sqmm, including multi-strand flexible copper cables, and terminates at an M6 stud point.
4) Why must I add insulation after crimping these lugs?
These are non-insulated lugs - the bare crimp barrel is exposed after fitting. Slide a heat-shrink tube or insulating sleeve over the barrel and a portion of the cable jacket after crimping to prevent short circuits, accidental contact, and moisture ingress at the joint.
5) Why are these supplied in packs of 200?
200 pieces is the standard industrial distribution count for panel wiring projects, ensuring uniform crimps across all terminations in a panel and reducing frequent re-ordering during commercial fit-outs and large-scale wiring installations.
Returns & Exchange Policy
- Return within 24 hours of delivery for:
- Damaged or defective product
- Wrong or missing item
- Product cannot be returned once installed or used
- Refer to Refund Policy for complete details
