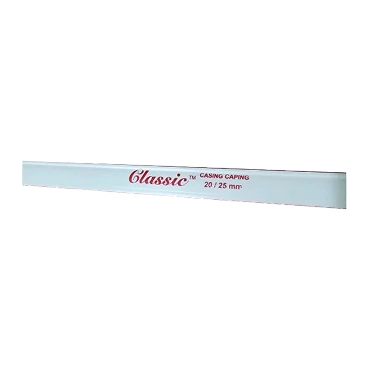

Classic PVC Casing Capping, White, 2m Length

Product Highlights

• Brand: Classic
• Color: White
• Length: 2 metres per unit
• Available Sizes: 19mm, 25mm, and 35mm widths
• Components: Casing (base channel) + Capping (cover lid) pair
• Also Known As: Casing Patti, Cable trunking, Wire raceway

Product Description

Classic PVC Casing Capping is a two-piece wire management system consisting of a base channel (casing) and snap-on cover (capping), designed to conceal and protect surface-mounted electrical wiring while providing a clean, professional aesthetic. This system is ideal for situations where concealed wiring is impractical or when adding new circuits to existing spaces without wall demolition.

Available in three sizes (19mm, 25mm, and 35mm) to accommodate different wire capacities, the white finish blends seamlessly with modern interiors. The 2-metre length allows for efficient installation with minimal joints. Widely used in residential renovations, commercial fit-outs, and industrial facilities, this casing capping system provides easy access to wiring for future modifications while maintaining a neat appearance.

Recommended Applications

• Residential Renovations: Adding new circuits without wall demolition in homes and apartments
• Commercial Fit-Outs: Office spaces, retail stores requiring visible but neat wiring
• Industrial Facilities: Factories and warehouses with surface-mounted electrical systems
• Data Cabling: Organizing network cables, phone lines, and low-voltage wiring
• Temporary Installations: Exhibition spaces, trade shows, and temporary structures
• Outdoor Covered Areas: Covered patios, carports (with proper weatherproofing)

Installation Guidelines

FAQs

1) What size casing capping do I need for my wiring?

Choose based on wire quantity: 19mm accommodates 2-3 cables, 25mm handles 4-6 cables, and 35mm fits 8-10 cables depending on wire gauge. Always follow the 40-50% fill rule to prevent overheating and allow for future additions. Measure your cable bundle and add 20% for clearance.

2) Can I paint casing capping to match my wall color?

Yes, PVC casing capping can be painted using acrylic or latex paint after light sanding for better adhesion. Clean the surface thoroughly before painting. However, white is the most common color and blends well with most interiors, so painting is often unnecessary.

3) How do I join two casing capping pieces together?

Use casing capping joint connectors or couplers available separately. These snap-on accessories create seamless joints between 2-metre lengths. Alternatively, butt the pieces tightly together and secure with the capping cover. For professional results, always use proper corner pieces and accessories.

4) Is casing capping suitable for outdoor use?

While PVC is weather-resistant, standard casing capping is designed for indoor or covered outdoor areas. For fully exposed outdoor installations, use UV-stabilized or weatherproof cable trunking specifically rated for outdoor use. Ensure all joints are properly sealed to prevent moisture ingress.

5) Can I run data cables and electrical wires in the same casing?

It's not recommended to mix power and data cables in the same trunking due to electromagnetic interference (EMI) that can affect data transmission. Use separate casing capping runs for power and data, or use larger trunking with internal dividers to maintain separation between cable types.

6) How do I remove the capping cover for future access?

Use a flat-head screwdriver or putty knife to gently pry the capping cover from one end. Work along the length, releasing the snap-fit clips. Avoid excessive force to prevent cracking. For frequent access points, consider using hinged or removable cover sections available in some trunking systems.

7) What accessories do I need for a complete installation?

Essential accessories include: internal corners, external corners, flat bends, tee-pieces, end caps, and joint connectors. Plan your route and count the number of each accessory needed. Purchase 10-15% extra for mistakes or future modifications. Accessories ensure a professional, seamless finish.
