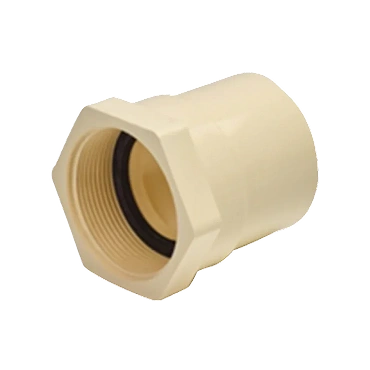

Ashirvad Flowguard Plus CPVC Female Adapter Plastic Threaded - FAPT

Product Highlights

• Material: CPVC with plastic female threads
• Function: CPVC to male plastic thread transition
• Temperature Rating: Up to 93°C (200°F)
• Pressure Rating: PN 15 (15 kg/cm²)
• Connection: Socket (solvent weld) + Female plastic thread

Product Description

Ashirvad Flowguard Plus CPVC Female Adapter Plastic Threaded (FAPT) provides an economical all-plastic solution for connecting CPVC pipes to male threaded components. Unlike brass threaded adapters, this fitting features integrated CPVC threads molded directly into the body, eliminating metal components while maintaining full system compatibility. The female plastic threads accept male threaded plastic fittings, valves, or accessories.

The monolithic CPVC construction ensures uniform thermal expansion characteristics throughout the fitting, preventing stress from differential expansion between materials. Ideal for applications where metal contact is undesirable or where cost optimization is important. The plastic threads provide adequate strength for residential plumbing while offering corrosion immunity and lighter weight compared to brass alternatives.

Recommended Applications

• Plastic Valve Connections: Connecting to plastic ball valves and shut-off valves
• Tank Fittings: Overhead tank connections with plastic threaded nipples
• Cost-Sensitive Projects: Budget-conscious installations where brass is not required
• Corrosive Environments: Applications where metal corrosion is a concern
• Temporary Installations: Removable connections in non-critical applications
• Residential Plumbing: Standard home plumbing where plastic threads are adequate

Installation Guidelines

FAQs

1) What's the difference between FAPT and FABT fittings?

FAPT (Female Adapter Plastic Threaded) has molded CPVC threads, while FABT (Female Adapter Brass Threaded) has brass threaded inserts. FABT offers superior strength and durability for high-stress applications, while FAPT provides cost savings and corrosion immunity for standard residential use.

2) Can FAPT fittings handle the same pressure as FABT?

Yes, both are rated for PN 15 (15 kg/cm²) system pressure. However, plastic threads are more susceptible to damage from over-tightening and may have lower fatigue resistance with repeated assembly/disassembly compared to brass threads.

3) Do I need PTFE tape on plastic threaded connections?

Yes, but use less tape than with brass threads - typically 2-3 wraps instead of 3-4. Plastic threads require gentler tightening, and excessive tape can cause the threads to crack when tightened.

4) Can FAPT fittings be used for hot water?

Yes, FAPT fittings are rated for hot water up to 93°C (200°F). However, for high-temperature applications with frequent thermal cycling, brass threaded fittings (FABT) may provide better long-term reliability due to superior thread strength.

5) How tight should I make plastic threaded connections?

Hand-tighten firmly, then use a wrench for only 1/2 to 1 additional turn. Plastic threads are much more fragile than brass and can easily crack or strip if over-tightened. The connection should be snug and leak-free with minimal force.
