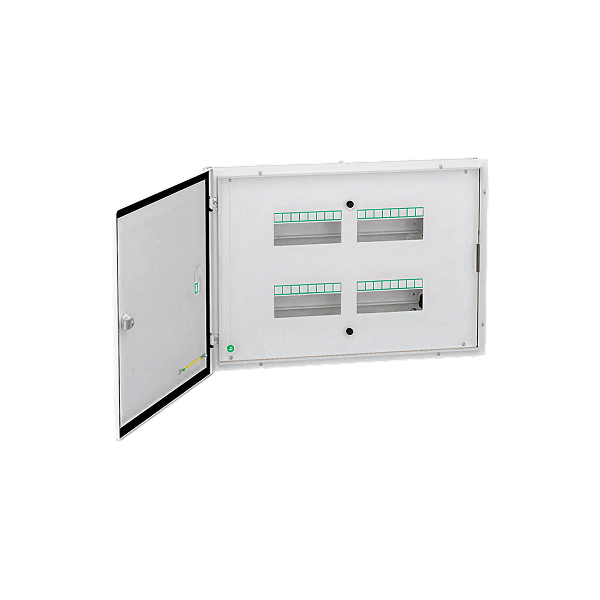

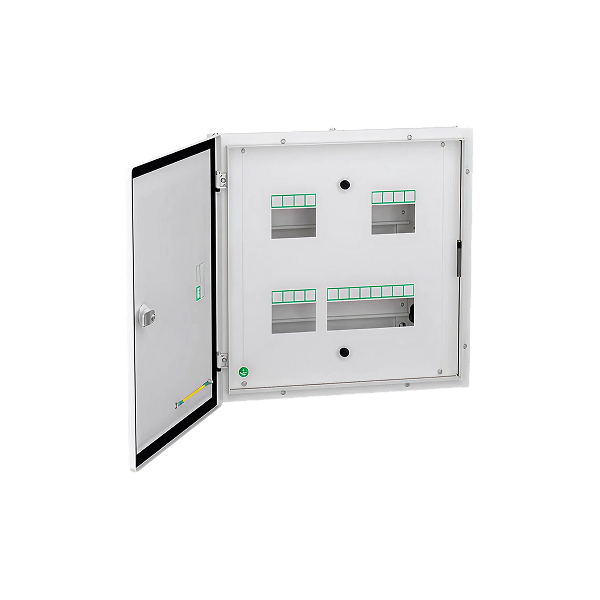

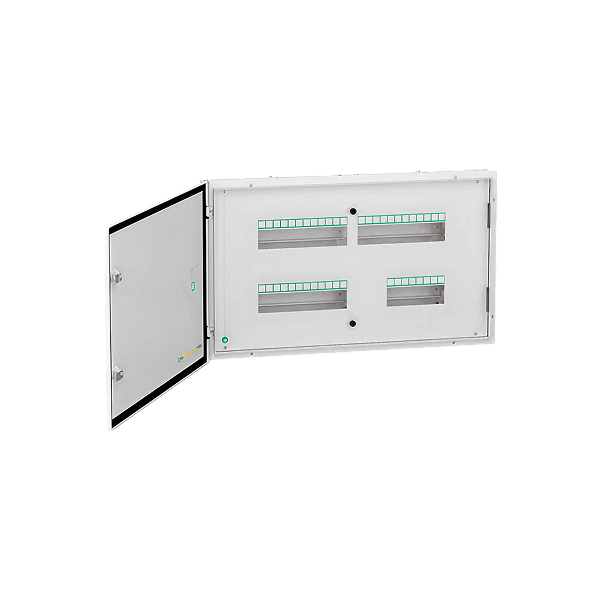

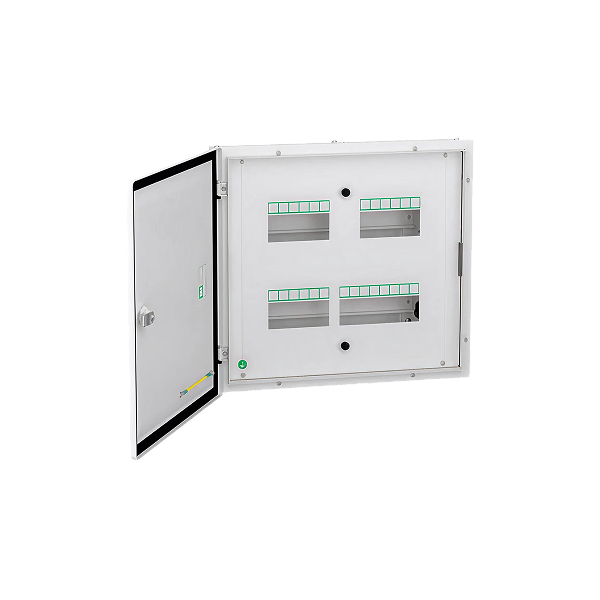

Schneider Electric Acti9 TPN DB, Double Door

Product Highlights

• Type: Three-Phase Neutral (TPN) Distribution Board
• Series: Acti9
• Configuration: Double door enclosure
• Application: Residential and commercial electrical distribution
• Brand: Schneider Electric - global electrical leader

Product Description

Schneider Electric Acti9 TPN Distribution Board is a three-phase neutral distribution board with double door enclosure, engineered for organizing and protecting electrical circuits in residential and commercial installations. The Acti9 series offers modular design for easy installation and maintenance of MCBs, RCCBs, and other protection devices.

Perfect for three-phase electrical systems in homes, offices, and commercial buildings, the double door configuration provides convenient access to circuit breakers and wiring. The robust construction and quality Schneider Electric engineering ensure reliable electrical distribution for installations in Bangalore requiring professional-grade distribution boards.

Recommended Applications

• Three-Phase Residential: Ideal for homes with three-phase electrical supply
• Commercial Buildings: Perfect for offices, retail spaces, and commercial establishments
• Industrial Applications: Suitable for light industrial electrical distribution
• High-Load Installations: Essential for installations with heavy electrical loads
• Modular Circuit Protection: Organize MCBs, RCCBs, and protection devices
• Professional Installations: Reliable distribution board for professional electrical work

Installation Guidelines

FAQs

1) What is a TPN distribution board?

TPN stands for Three-Phase Neutral, meaning the distribution board is designed for three-phase electrical systems with neutral. It accommodates circuit breakers for all three phases plus neutral for complete electrical distribution.

2) What is the advantage of double door configuration?

Double door configuration provides convenient access to circuit breakers and wiring from both sides, making installation and maintenance easier. It also offers better organization of circuits in larger installations.

3) How many MCBs can fit in Acti9 TPN DB?

Capacity depends on the specific model size. Acti9 distribution boards are available in various sizes accommodating different numbers of modules. Check product specifications for exact module capacity.

4) Is Schneider Acti9 suitable for residential use?

Yes, Schneider Acti9 TPN DB is excellent for residential use, particularly for homes with three-phase electrical supply. The quality construction and modular design make it ideal for modern homes.

5) Can I use this for commercial buildings?

Yes, Acti9 TPN DB is perfect for commercial buildings. The robust construction and modular design make it suitable for offices, retail spaces, and commercial establishments requiring reliable electrical distribution.

6) What protection devices can I install in Acti9 DB?

Acti9 DB accommodates Schneider Electric Acti9 series devices including MCBs, RCCBs, RCBOs, isolators, and surge protection devices. The modular DIN rail design allows flexible configuration of protection devices.

7) Is professional installation required?

Yes, distribution board installation should be performed by qualified electricians. Proper installation ensures safety, compliance with electrical codes, and reliable operation of the electrical distribution system.
