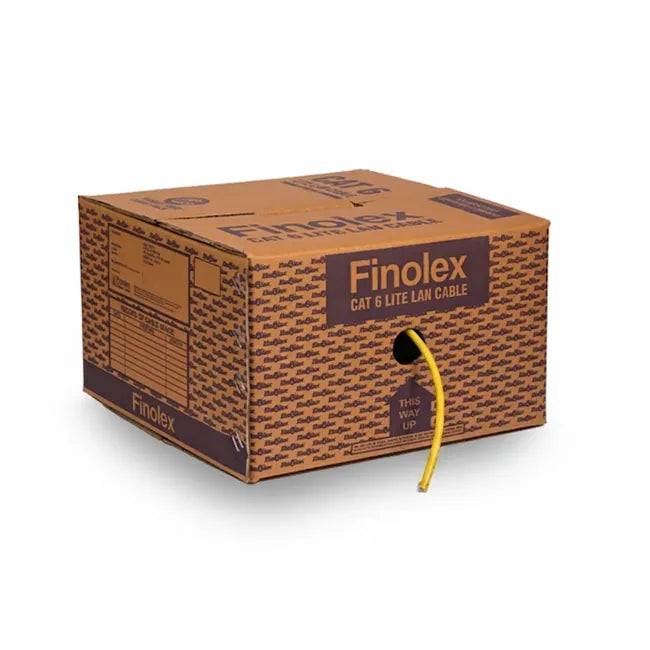

Finolex CAT6 LAN Cable, 100m Coil

Product Highlights

• Manufacturer: Finolex
• Product Type: LAN Cable - CAT 6 UTP (Unshielded Twisted Pair)
• Specification: 0.5 x 4P UTP
• Length: 100 Metres
• Available Colours: Yellow, Grey
• Conductor: 23 AWG Annealed Bare Solid Copper
• Certifications: ANSI/TIA-568C.2, ETL Verified, UL Listed and Verified for CAT 6
• Application: Corporate IT, smart homes, IP CCTV, PoE installations

Product Description

Finolex CAT 6 UTP LAN Cable is a 100-metre networking cable built with a 23 AWG annealed bare solid copper conductor - not copper-clad aluminium (CCA) - ensuring full conductivity, lower resistance, and long-term signal integrity. The four twisted pairs are insulated with High-Density Polyethylene and separated by a Low-Density Polyethylene spine separator that isolates each pair, reducing crosstalk and electromagnetic interference at frequencies up to 250 MHz. This makes it capable of supporting Gigabit Ethernet (1000BASE-T) and high-bandwidth applications without signal degradation.

The outer jacket is a Fire Retardant PVC Compound (FRPVC) rated to 75 degrees C - self-extinguishing and resistant to physical wear in indoor routing environments. Fully certified to ANSI/TIA-568C.2 standards and verified by both ETL and UL for CAT 6 performance - confirming it meets internationally recognised structured cabling benchmarks. Suitable for structured cabling in offices, data centres, smart homes, IP CCTV installations, and any PoE (Power over Ethernet) application requiring reliable data and power delivery over a single cable.

Technical Specifications

Installation Guidelines

Recommended Applications

Why Buy from HomeRun?

FAQs

1) What is the difference between solid copper and CCA (Copper Clad Aluminium) CAT 6 cable - and why does it matter?

CCA cable uses an aluminium core coated with a thin layer of copper - it looks identical to solid copper cable from the outside but has significantly higher electrical resistance and poorer signal performance, particularly over longer runs. Solid copper cable like this Finolex CAT 6 has lower DC resistance (9.38 Ohms per 100m), better signal integrity at full Gigabit speeds, and longer service life. CCA cable is also not compatible with PoE (Power over Ethernet) applications - the higher resistance causes voltage drop and overheating. Always verify "solid copper" or "bare copper conductor" when purchasing structured cabling for permanent installations.

2) What is the maximum cable run length for Gigabit Ethernet using this cable?

The standard maximum cable run for Gigabit Ethernet (1000BASE-T) on CAT 6 UTP is 100 metres per segment - from the network switch or patch panel to the end device. This 100-metre box covers one complete maximum-length run. For longer distances, a network switch or media converter must be used to extend the run. In practice, most residential and office runs are well within this limit - the 100-metre coil is sufficient for most structured cabling projects in a single floor or apartment.

3) Is this cable suitable for PoE (Power over Ethernet) applications like IP cameras?

Yes - solid copper CAT 6 cable is the correct choice for PoE. PoE delivers both data and electrical power over the same cable. CCA cables are not suitable for PoE because their higher resistance causes voltage drop and heat buildup in the cable, which can damage both the cable and connected devices over time. This Finolex solid copper CAT 6 cable handles PoE safely and reliably for IP cameras, Wi-Fi access points, VoIP phones, and other PoE-powered devices.

4) What certifications does this cable carry and why do they matter?

This cable is certified to ANSI/TIA-568C.2 (the industry standard for CAT 6 structured cabling performance) and verified by both ETL and UL - two internationally recognised independent testing laboratories. These certifications confirm the cable has been independently tested and verified to meet CAT 6 electrical performance requirements - not just self-declared by the manufacturer. For permanent structured cabling in offices, data centres, and commercial buildings, certified cable is typically required for compliance and warranty purposes.

5) Can I use CAT 6 cable for CAT 5e installations, and is it backward compatible?

Yes - CAT 6 is fully backward compatible with CAT 5e equipment. You can use this CAT 6 cable with CAT 5e switches, routers, and patch panels without any issues - it will operate at CAT 5e performance levels in that setup. Using CAT 6 in a CAT 5e installation is common practice for future-proofing - if you upgrade to Gigabit or faster switching equipment later, the cable is already rated for the higher performance without needing to be replaced.
