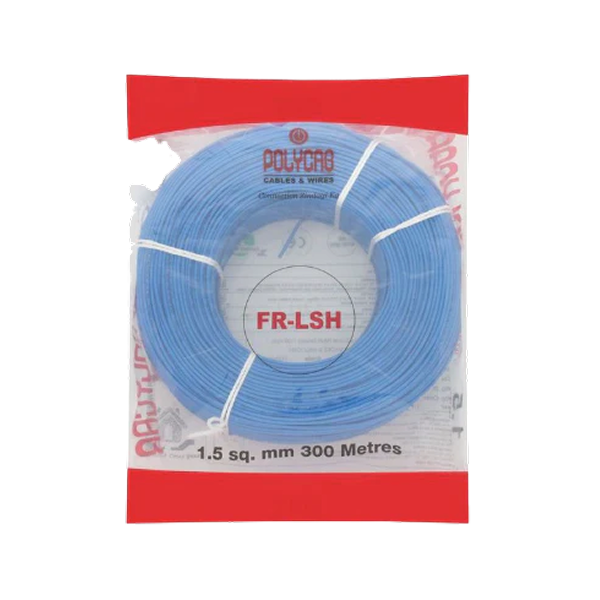

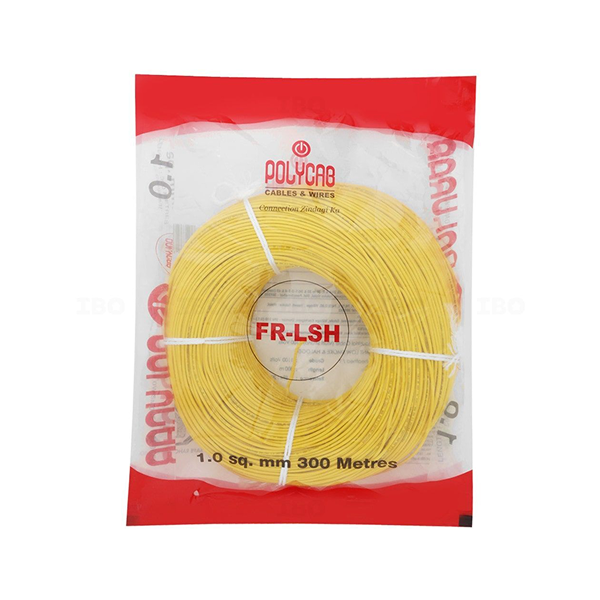

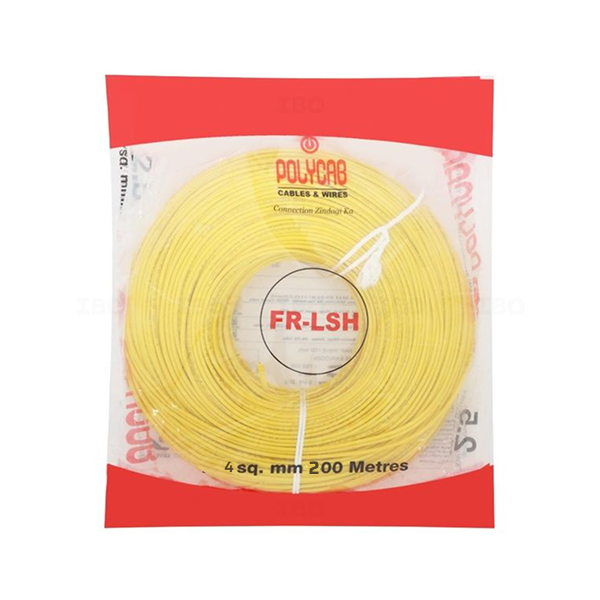

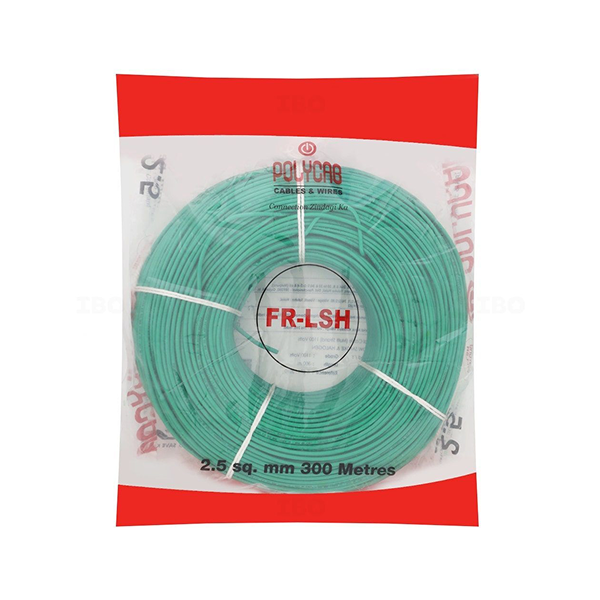

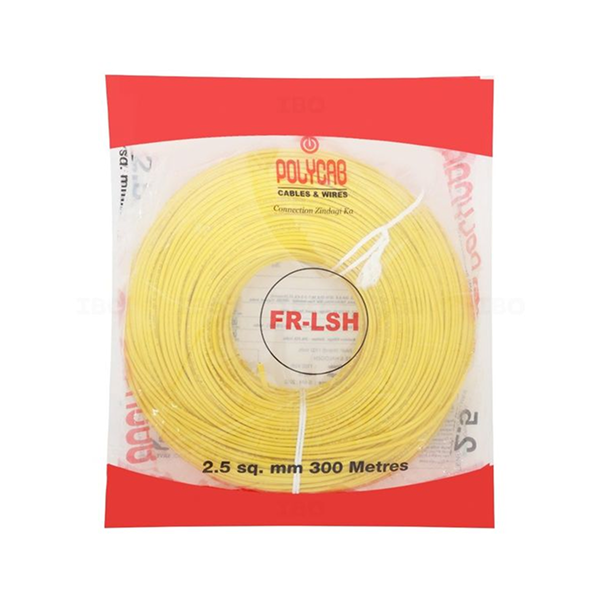

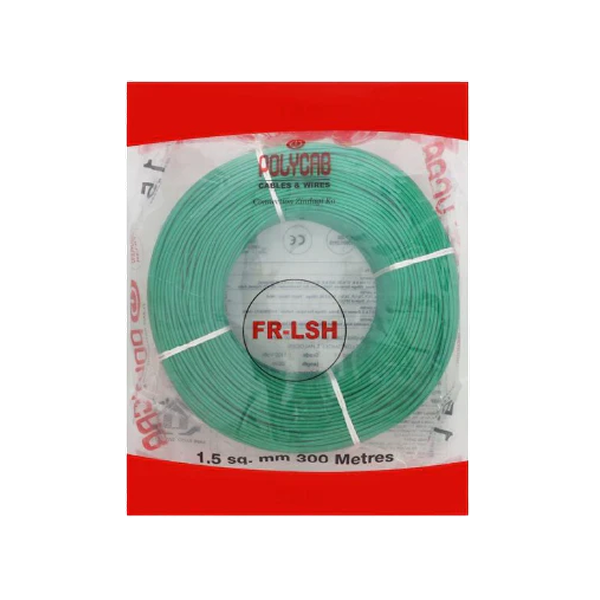

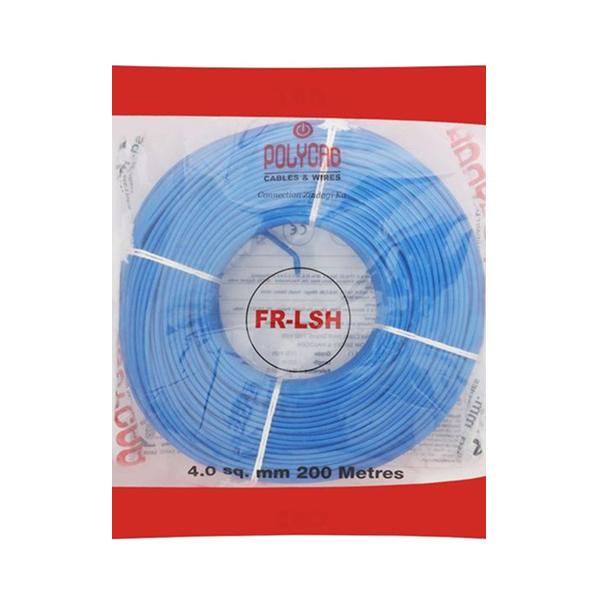

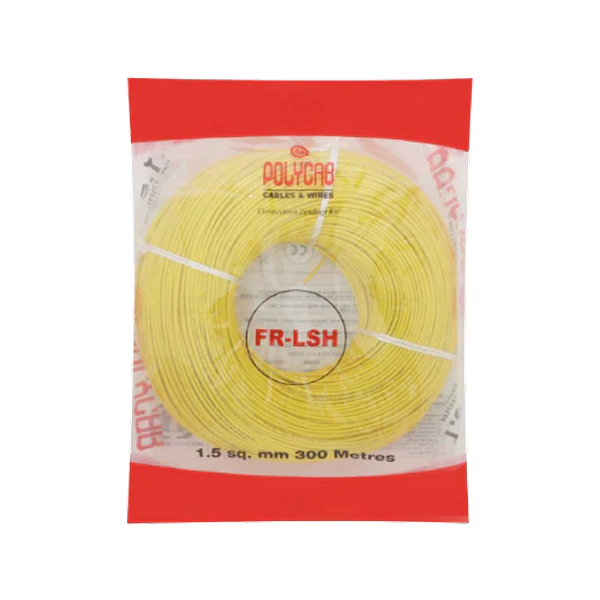

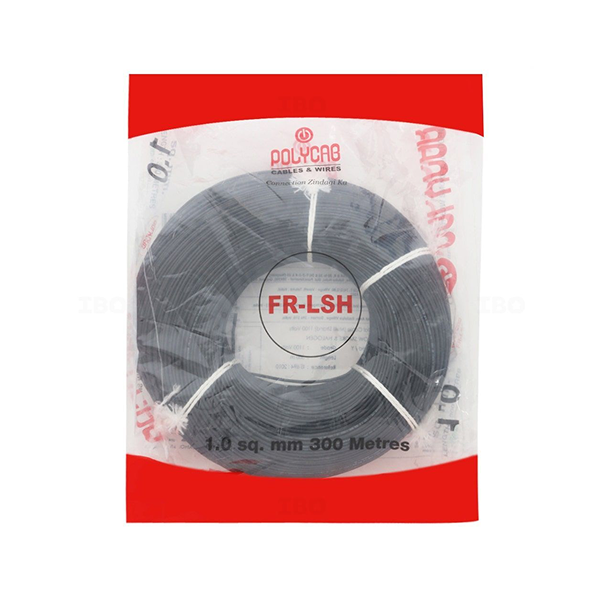

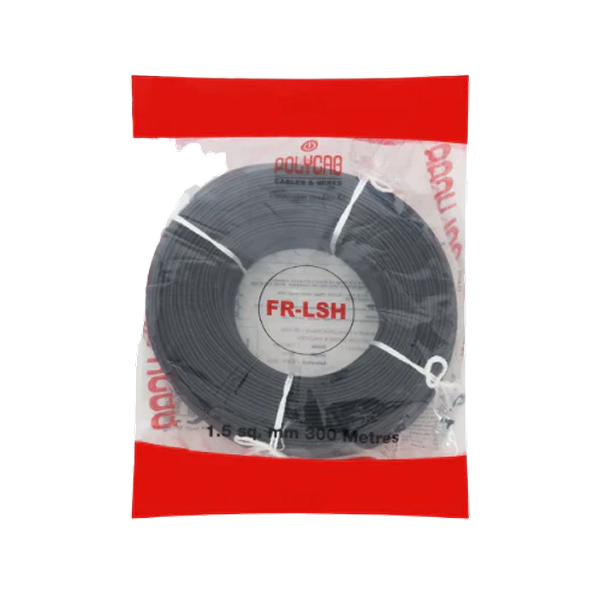

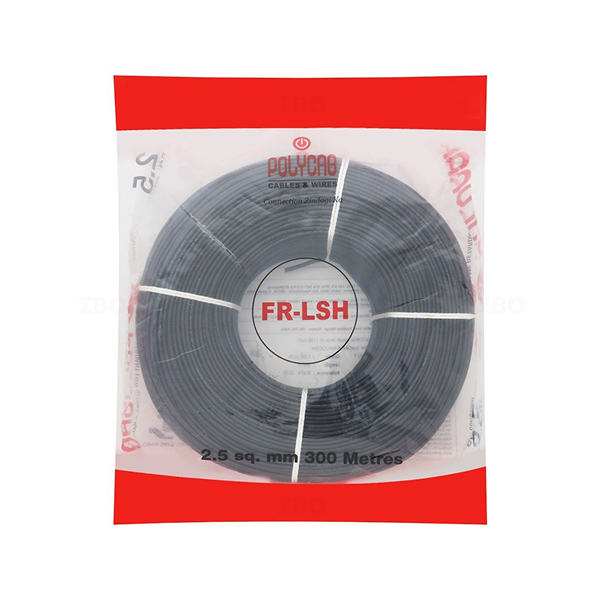

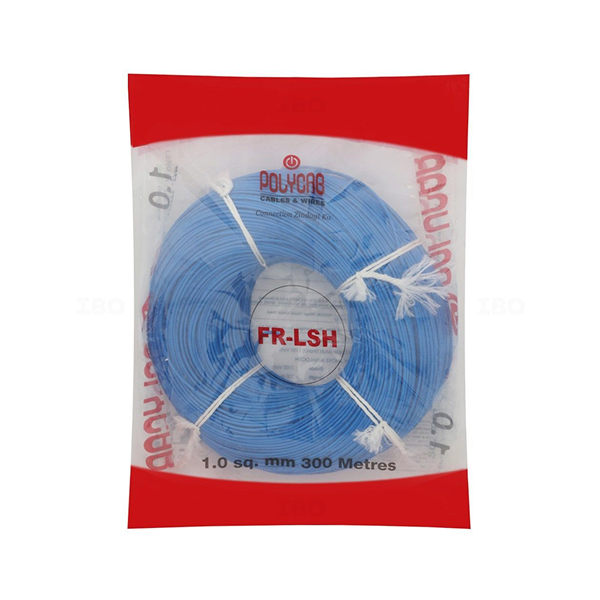

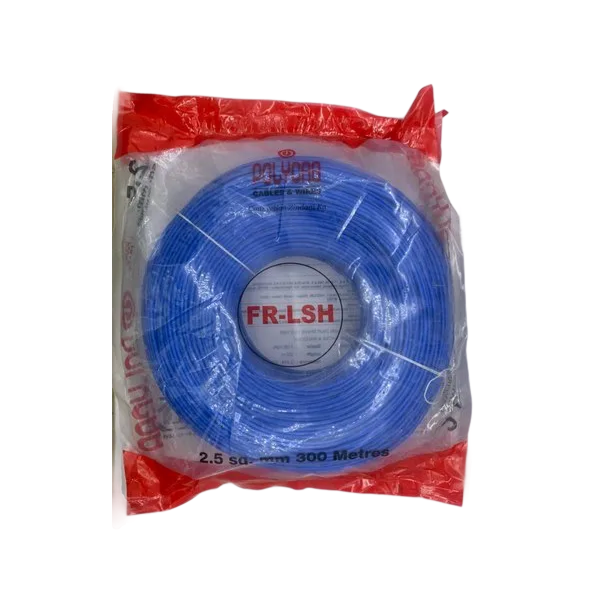

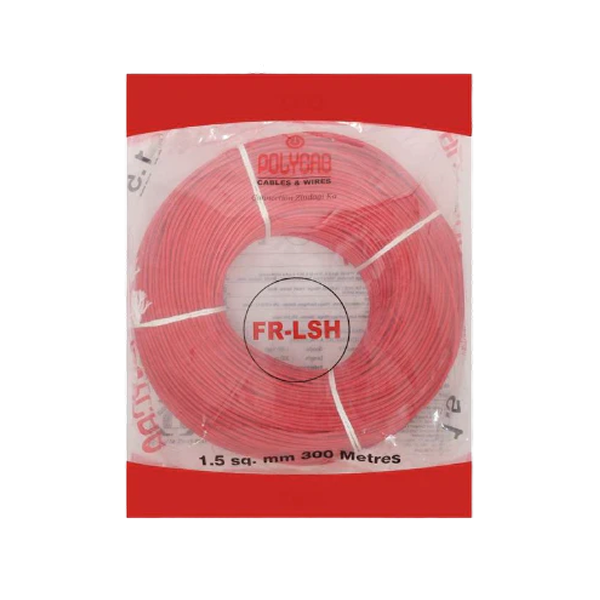

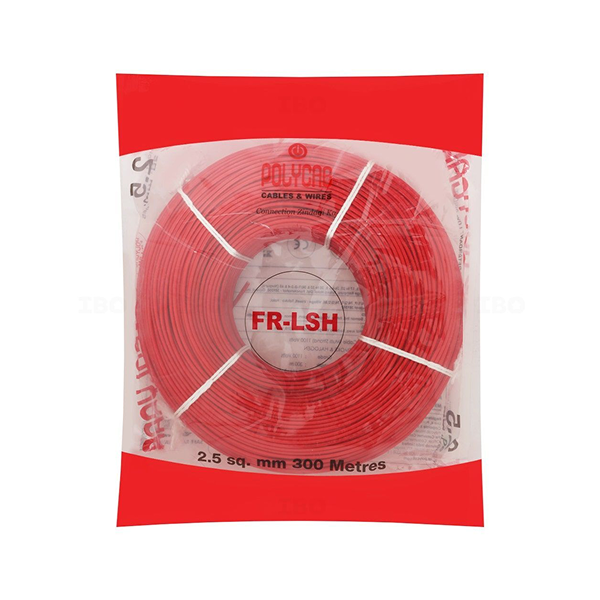

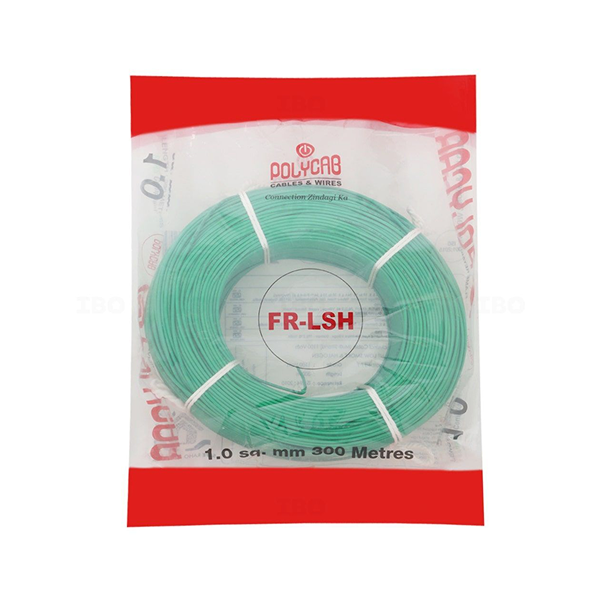

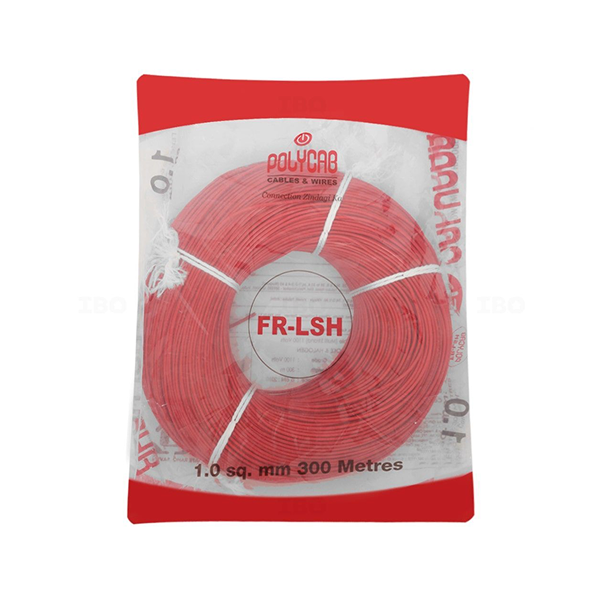

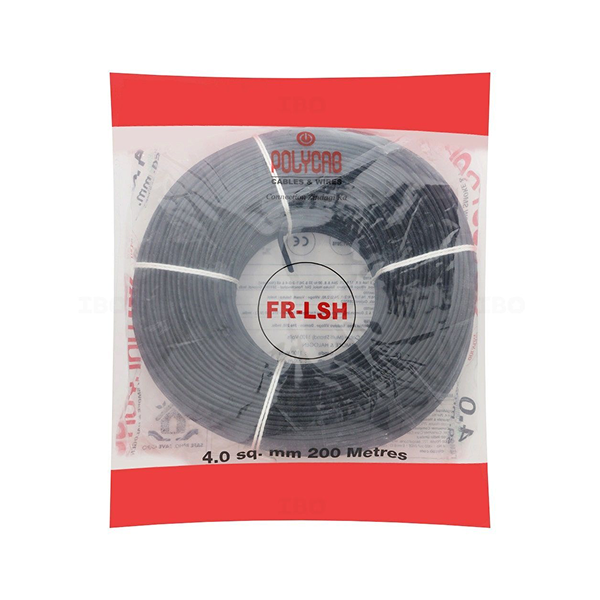

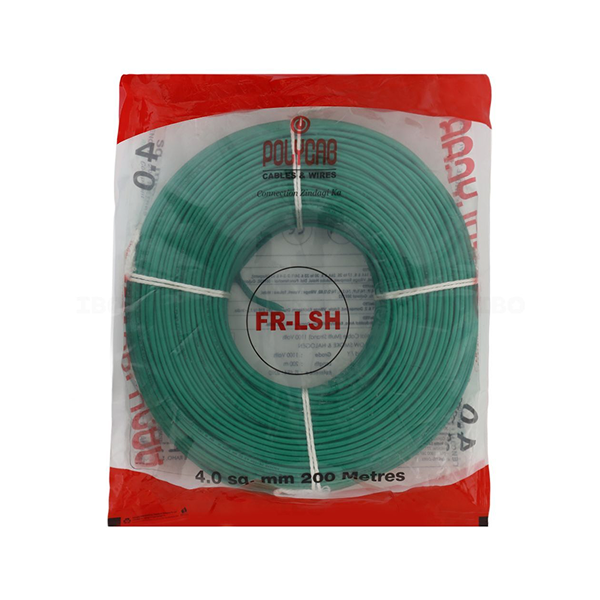

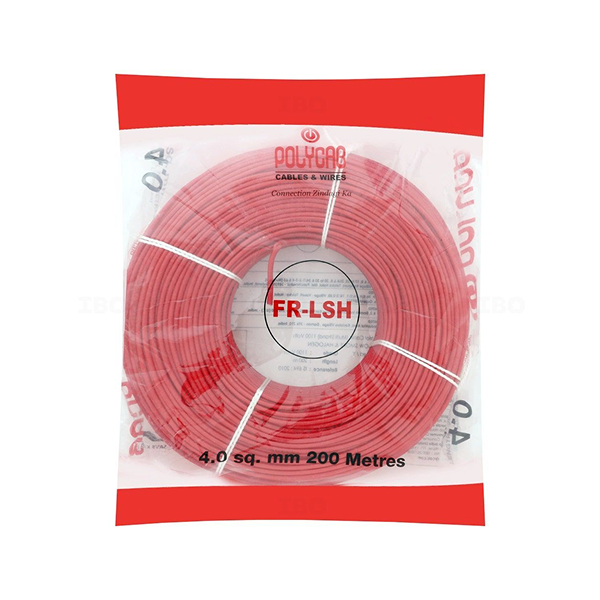

Polycab FRLS-H Single Core Wire

Polycab FRLS-H Single Core Wire

In stock

Rs. 4,180.00
Rs. 8,855.00 Rs. 4,180.00
Sale Sold out
Including GST Shipping calculated at checkout.
Wire Thickness
Colour

Product Highlights

Manufacturer: Polycab India Limited (Market Leader)

Grade: FRLS-H (Flame Retardant Low Smoke & Halogen-Free)

Conductor: 99.97% Pure Electrolytic Copper (Class 5 Flexible)

Available Sizes: 1.0, 1.5, 2.5 & 4.0 mm²

Coil Options: 200m and 300m professional packing

Voltage Rating: 1100V AC (Industrial Grade)

Certification: IS 694:2010 & BIS Approved

Current Rating: 16-29 Amps (depending on size)

Product Description

Key Safety Advantages:

  • Zero Halogen Emission: Safe for enclosed spaces - no toxic gas release during fire
  • Low Smoke Density: 60% less smoke generation aids emergency evacuation
  • Flame Self-Extinguishing: Prevents fire spread along wire runs
  • Lead-Free Formulation: Environmentally safe, complies with RoHS standards
  • High Oxygen Index: 32% vs 21% in standard PVC (superior fire resistance)

Polycab FRLS-H Single Core Wire represents the pinnacle of electrical safety technology, engineered specifically for modern Indian construction requirements. This premium building wire combines Polycab's advanced flame-retardant compound with high-purity copper conductors to deliver uncompromised safety and performance in residential, commercial, and industrial applications.

Unlike standard PVC wires that emit toxic gases and dense smoke during fires, FRLS-H wires use halogen-free insulation that significantly reduces smoke generation while eliminating dangerous hydrogen halide gas emissions. This makes them essential for high-occupancy buildings, hospitals, schools, and premium residential projects across Bangalore.

Advanced Technical Features:

  • Class 5 Flexible Conductor: Multi-strand construction (14-56 strands) for superior flexibility
  • Optimized Current Rating: Enhanced ampacity due to improved heat dissipation
  • Temperature Resistance: Continuous operation up to 90°C, emergency rating 160°C
  • Insulation Thickness: 0.7-0.8mm precision extrusion for consistent performance
  • Low Resistance: 18.1-4.95 ohms/km ensuring minimal power loss
  • UV Stabilized: Suitable for exposed installations with sunlight resistance

Size-Wise Specifications & Applications

Size (mm²) Current Rating Typical Applications Price/Meter
1.0 mm² 16 Amps LED lighting, control circuits, small appliances ₹68-75
1.5 mm² 20 Amps General lighting, ceiling fans, 5A sockets ₹85-92
2.5 mm² 26 Amps Power outlets, refrigerators, washing machines ₹118-128
4.0 mm² 35 Amps Water heaters, ACs, high-load circuits ₹142-155

Critical Applications for Bangalore Projects

  • High-Rise Residential: Essential for apartments above 15 floors per NBC requirements
  • Commercial Buildings: Mandatory for malls, offices, hotels in fire safety zones
  • Healthcare Facilities: Hospitals, clinics requiring zero-toxic emission wiring
  • Educational Institutions: Schools, colleges prioritizing student safety
  • IT Parks & Data Centers: Preventing toxic gas damage to sensitive equipment
  • Metro Stations & Airports: Public infrastructure with high evacuation requirements

Quality Assurance & Certifications:

  • IS 694:2010 Certified: Meets latest Indian electrical safety standards
  • BIS License: Government-approved quality mark for consumer protection
  • CPRI Tested: Central Power Research Institute laboratory verification
  • RoHS Compliant: Lead-free, environmentally safe manufacturing
  • ISO 9001:2015: Quality management system certified production
  • Polycab Warranty: Comprehensive product performance guarantee

Installation Guidelines for Bangalore Climate

Best Practices:

  • Conduit Installation: Use ISI marked PVC conduits for protection and easy maintenance
  • Bend Radius: Minimum 8x wire diameter to prevent conductor damage
  • Termination: Use Polycab-recommended lugs and ferrules for connections
  • Ambient Conditions: Suitable for Bangalore's 15-35°C temperature range
  • Loading: Derate by 10% for ambient temperatures above 30°C
  • Color Coding: Follow IS 732 standards - Red (Phase), Blue (Neutral), Green/Yellow (Earth)

Why Choose Polycab FRLS-H for Your Project?

Polycab's Market Leadership: As India's largest wire manufacturer with 60+ years of experience, Polycab has invested over ₹500 crores in R&D to develop advanced safety technologies. Their Halol facility produces over 1 million km of wires annually under strict quality control.

HomeRun Advantage:

  • Expert Consultation: Free technical guidance on wire sizing and specifications
  • Rapid Delivery: 60-minute delivery across HSR Layout, Electronic City, Sarjapur & more.
  • Genuiness Guaranteed: Wires can be qr verified on the Polycab Experts app

Comparison with Standard PVC Wires:

Parameter Polycab FRLS-H Standard PVC
Oxygen Index 32% (Excellent) 21% (Standard)
Smoke Density 60% Reduced High Dense Smoke
Toxic Gas Emission Zero Halogen Toxic HCl Gas
Temperature Rating 90°C Continuous 70°C Standard
Current Rating 15-20% Higher Standard Rating

Bangalore Delivery Zones

Fast Delivery Coverage:

  • 60-Minute Delivery: Kengeri, Electronic City, Sarjapur, Varthur, Kothanur
  • 90-Minute Delivery: HSR Layout, Whitefield, Marathahalli, Indiranagar, Rajajinagar, Banashankari, JP Nagar, Hebbal
  • 120-Minute Delivery: Malleshwaram, Bommanahalli, BTM Layout, Nagasandra
  • Free Delivery: On orders above ₹10,000 across all zones

Returns & Exchange Policy

  1. Return within 24 hours of delivery under the following conditions:
    • Damaged or defective product
    • Wrong or missing product
  2. Product cannot be returned once installed or coil opened
  3. Refer to Refund Policy for details
