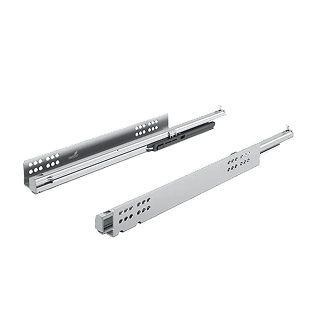

Hettich Quadro-V6 Drawer Runners, Full Extension, 30 Kgs Capacity, Silent System

₹2,952
₹1,463
Incl GST Shipping calculated at checkout.

Bulk Prices

Hettich Quadro-V6 Drawer Runners, Full Extension, 30 Kgs Capacity, Silent System

No bulk prices available right now.

Length
300mm/12" (9243229)
₹1,463
350mm/14" (9243230)
₹1,463
400mm/16" (9243231)
₹1,594
450mm/18" (9243232)
₹1,650
500mm/20" (9243233)
₹1,720
550mm/22" (9243234)
₹1,846
600mm/24" (9243235)
₹2,039

  • Brand: Hettich
  • Product: Quadro V6 Full-Extension Drawer Runner – Silent System (Soft Close)
  • Closing: Integrated Silent System soft close
  • Load Capacity: 30 kg (per pair)
  • Extension: Full extension for complete drawer access
  • System: Quadro modular drawer system – drawer connects to runners with catches
  • Finish: Zinc-plated steel
  • Package Content: 1 pair (left and right runners) + 2 Quadro catches (L+R) – catches are packed separately from the runner box. Note: installation screws are not provided and must be purchased separately
  • Application: Kitchen drawers, wardrobes, vanities, pantries and office pedestals

Hettich Quadro V6 Drawer Runner combines full-extension access with Hettich's Silent System for smooth, quiet drawers. Part of Hettich's Quadro modular drawer system, it is ideal for modern kitchens, wardrobes and quality furniture where reliable everyday performance matters.

The Silent System engages automatically to close the drawer gently, without slamming, and full extension lets the drawer open completely so you can reach everything inside. The drawer connects to the runners with the Quadro catches included in the pack, making installation and removal easy. With 30 kg capacity per pair and a zinc-plated steel finish, it suits kitchen drawers for utensils, dishes and cookware, as well as wardrobe, vanity and office storage.

Key Features

  • Silent System Soft Close: Drawers close gently and quietly every time
  • Full Extension: Drawer opens completely for easy access to everything inside
  • 30 kg Capacity: Per pair, for everyday kitchen and wardrobe use
  • Quadro Catches Included: Connect and remove the drawer easily
  • Zinc-Plated Steel: Durable finish for long-term use

Product Specifications Table

Technical Specifications (Quick Reference)

Specification Details
Brand Hettich
Model Quadro V6 (Silent System)
Type Concealed full-extension drawer runner
Closing Mechanism Silent System – integrated soft close
Load Capacity 30 kg (per pair)
System Quadro modular drawer system
Finish Zinc-plated steel
In the Box 2 runners (left and right) + 2 Quadro catches (L+R), packed separately
Sold Separately Installation screws

Note: Load capacity applies under standard installation conditions with proper cabinet construction.

Recommendations & Ideal Use-Cases

Where this fits best

  • Modular Kitchen Drawers: Base units and tall storage cabinets
  • Wardrobe Drawers: Clothing and accessory storage
  • Bathroom Vanities: Neat, organised storage
  • Pantry Storage: Food and kitchen items
  • Office Storage: Filing and storage pedestals

Installation Guidelines

  1. Cabinet Preparation: Check the cabinet's internal dimensions suit the Quadro system
  2. Runner Mounting: Fix the runners level and parallel with suitable screws (sold separately)
  3. Catch Installation: Attach the Quadro L+R catches to the drawer
  4. Drawer Assembly: Connect the drawer to the runners using the catches
  5. Testing: Check full extension and soft-close action before final use

Installation by an experienced carpenter is recommended.

1) Does Quadro V6 have soft close?

Yes. Quadro V6 has an integrated Silent System that slows the drawer as it closes, so it shuts gently and quietly without slamming. This protects the drawer, its contents and the cabinet over time.

2) What is its load capacity?

Up to 30 kg per pair, which suits typical kitchen and wardrobe drawers holding utensils, dishes, cookware or clothes. For very heavy loads in a single drawer, consider a higher-capacity runner.

3) Is it full extension?

Yes. The drawer slides out completely, so you can see and reach everything inside without stretching into the cabinet – making full use of the drawer's depth.

4) What is in the package?

Each pack has 2 runners (left and right) and 2 Quadro catches (L+R). The catches are packed separately from the runner box, so check you have both parts when unpacking. Installation screws are sold separately.

5) What is the Quadro system?

Quadro is Hettich's modular drawer system, where catches on the drawer connect it to the runners. This makes the drawer easy to fit, remove and refit, and gives carpenters flexibility when building drawers.

6) Can it be used for kitchen drawers?

Yes. Quadro V6 is ideal for modular kitchen drawers storing utensils, dishes and cookware, as well as wardrobe, vanity and pantry drawers.

Why Buy from HomeRun?

  • Authentic Hettich Product: Verified genuine product sourced from authorized Hettich channels
  • 60-Minute Bangalore & Hyderabad Delivery: Express delivery to active service zones – ideal for urgent installations
  • Complete Set: Runners and catches supplied together
