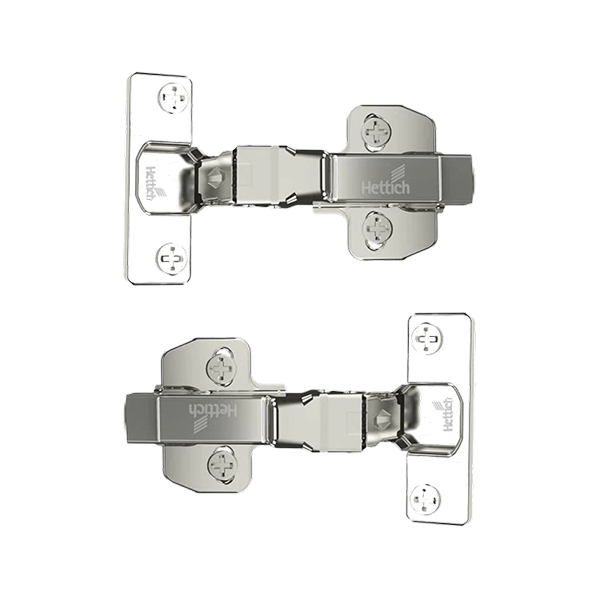

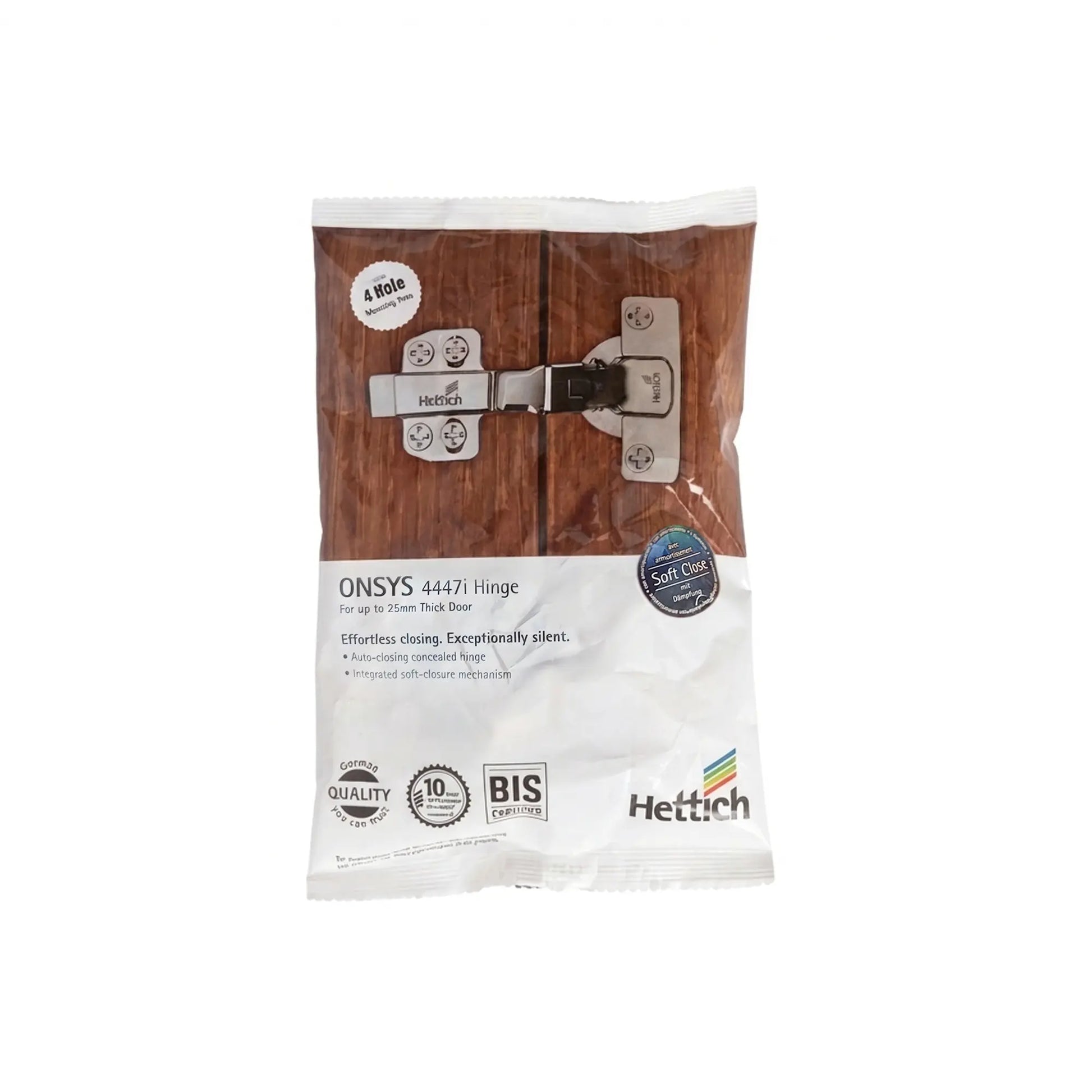

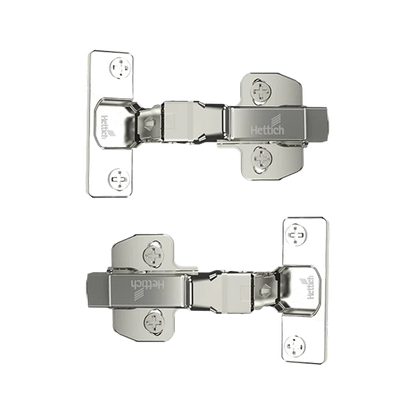

Hettich Onsys 4447i Soft Close Hinges, 1 Set (2 Nos)
Hettich Onsys 4447i Soft Close Hinges, 1 Set (2 Nos)
In stock
Couldn't load pickup availability
Product Highlights
Quick Answer: What is Hettich Onsys 4447i hinge used for?

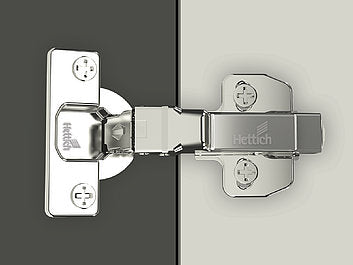

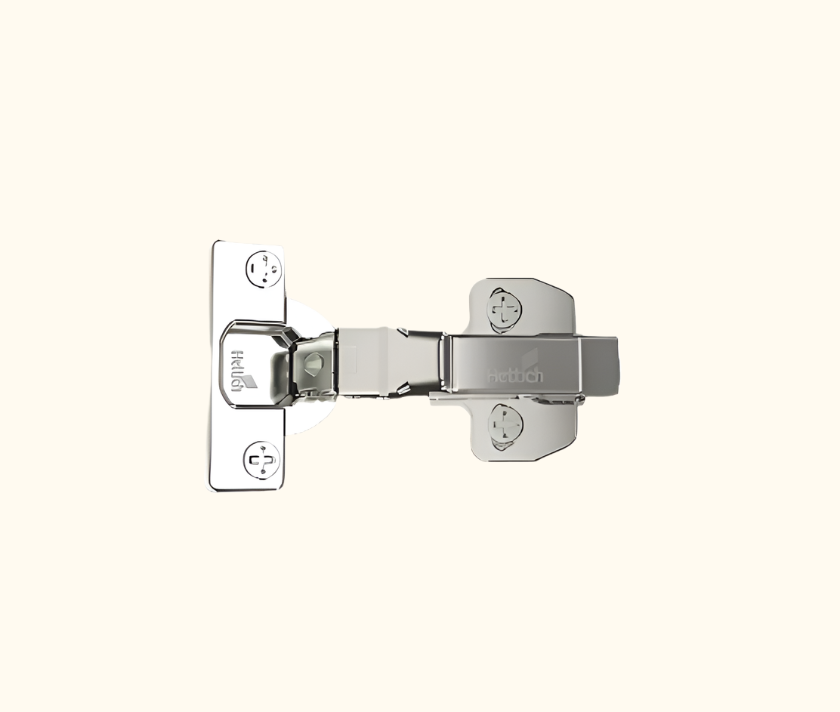

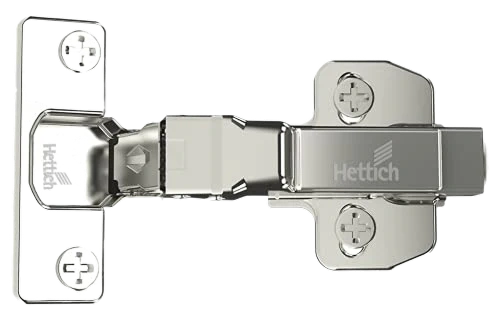

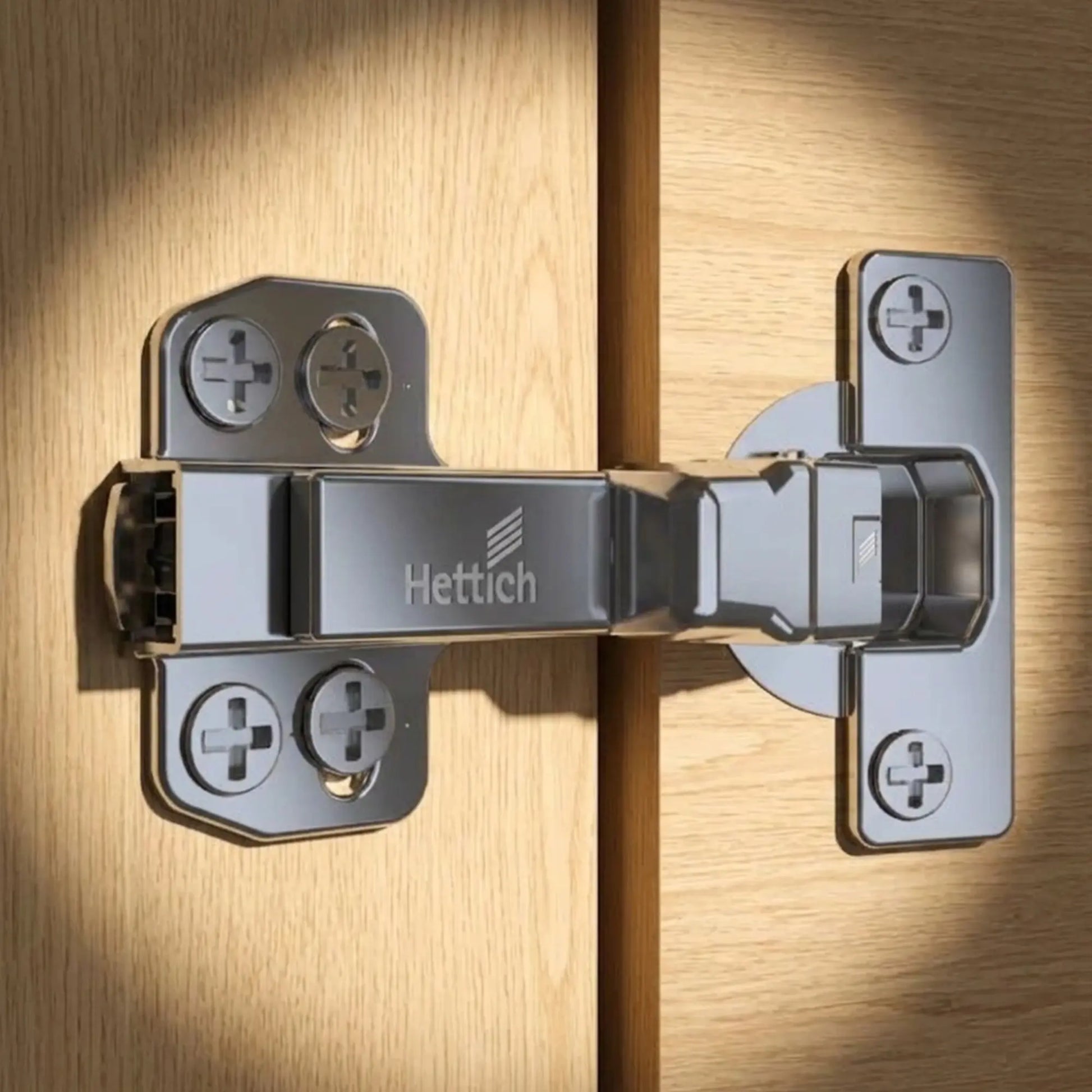

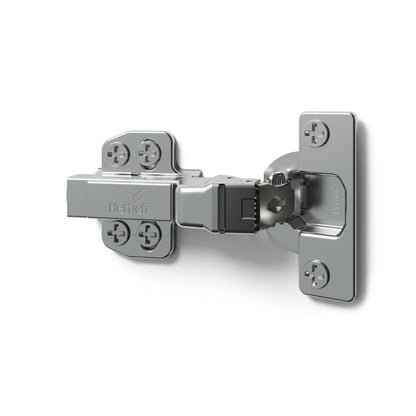

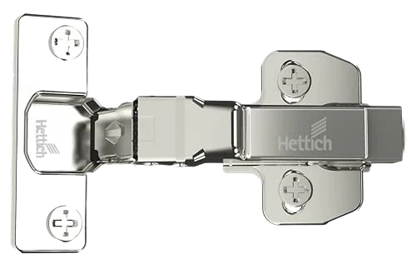

Hettich Onsys 4447i Soft Close Hinge is a concealed cabinet hinge with integrated soft-close mechanism, designed for kitchen cabinets, wardrobes, and storage units to ensure silent door closing, precise alignment, and long-term durability.
- Model: Hettich Onsys 4447i (Soft Close)
- Opening Angle: 105° for comfortable access
- Door Thickness: Suitable for 15–24 mm cabinet doors
- Adjustment: 3D adjustment for perfect door alignment
- Installation: Clip-on hinge system for quick fitting
- Warranty: 10-year functional warranty
- Certification: EN 15570 – Level 2
Product Description
Hettich Onsys 4447i Soft Close Hinges are designed to bring silent operation, smooth movement, and professional-grade alignment to modern cabinetry. Built with Hettich’s proven engineering and manufactured in India, Onsys hinges offer the ideal balance between performance, durability, and value.
The integrated soft-close system automatically engages during closing, preventing door slams and reducing stress on cabinet panels and carcasses. With a 105° opening angle and precise 3-dimensional adjustment, these hinges are widely used by carpenters and modular kitchen installers for residential interiors.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Hinge Type | Concealed soft-close hinge |
| Cup Diameter | 35 mm (European standard) |
| Cup Depth | 11.5 mm |
| Door Thickness | 15 – 24 mm |
| Opening Angle | 105° |
| Adjustment | Overlay ±2 mm, Depth +2.5 / −1.5 mm |
| Material & Finish | Nickel-plated steel |
| Warranty | 10 years (functional) |
Crank Options Explained
- 0 Crank (Full Overlay): Door fully covers the cabinet side panel – most common in modular kitchens.
- 8 Crank (Half Overlay): Two doors share a common partition.
- 16 Crank (Inset): Door sits flush inside the cabinet opening.
Recommended Applications
- Modular kitchen cabinets
- Wardrobes and bedroom storage
- Bathroom vanities
- TV units and display cabinets
- Office and utility cupboards
Installation Guidelines
- Drill a 35 mm cup hole with 11.5 mm depth.
- Fix hinge cup to the door panel.

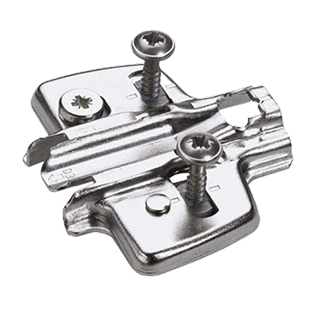

- Mount base plate on cabinet side.
- Clip hinge onto mounting plate.
- Adjust overlay and depth for perfect alignment.
FAQs
1) Is the soft-close mechanism built into the hinge?
Yes. The soft-close system is integrated within the hinge and does not require any external dampers.
2) Can I use Hettich Onsys 4447i hinges for kitchen cabinets?
Yes. Onsys 4447i hinges are commonly used for modular kitchen and wardrobe doors in residential interiors.
3) Are these hinges suitable for humid areas like kitchens and bathrooms?
Yes. The nickel-plated steel finish provides good corrosion resistance and performs reliably in humid Indian conditions.
4) Can cabinet doors be adjusted after installation?
Yes. The hinge offers 3-dimensional adjustment for overlay, depth, and height, allowing precise door alignment even after installation.
5) What is the difference between Hettich Onsys and premium Hettich hinge ranges?
Onsys offers the same soft-close comfort with EN 15570 Level 2 certification, making it ideal for residential use at a more economical price point.
