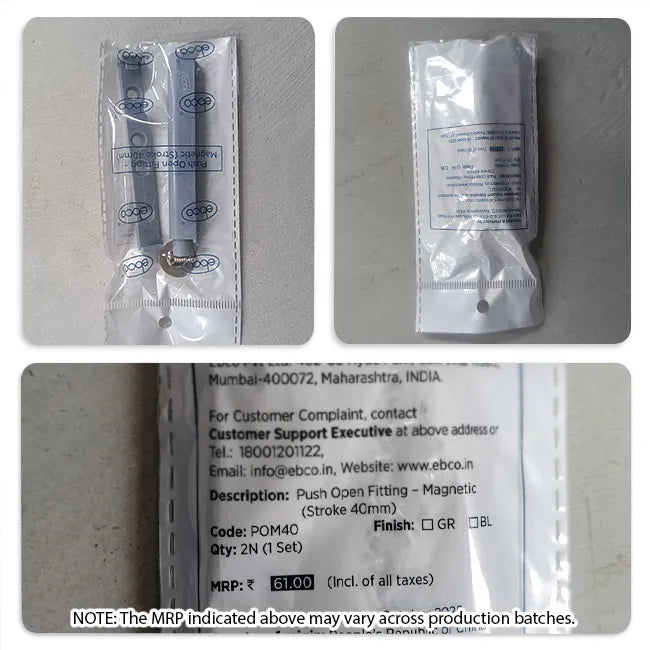

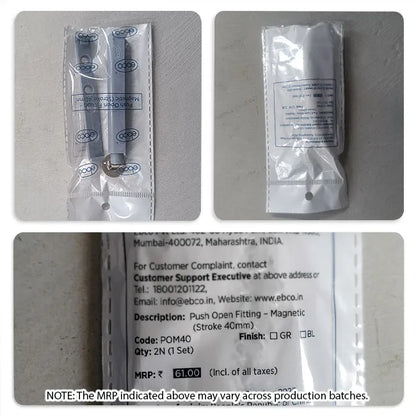

Ebco Push Open Fitting, Magnetic, Stroke 40mm (1.57"), POM40

Ebco Push Open Fitting, Magnetic, Stroke 40mm (1.57"), POM40

Out of stock

Rs. 48.00
Rs. 69.00 Rs. 48.00
Sold out
Incl GST Shipping calculated at checkout.

Product Highlights

  • Brand: Ebco
  • Product: Push Open Fitting - Magnetic
  • Model Code: POM-40
  • Installation Type: Concealed mounting bracket with magnetic catch
  • Stroke: 40mm (1.57")
  • Body Diameter: 10mm (0.39")
  • Overall Body Length: 124mm (4.88")
  • Body Segments: 78mm (3.07") main body + 44mm (1.73") nose section

Product Description

Push Open Fitting - Magnetic (POM-40) is a concealed push-to-open mechanism with a magnetic catch, designed for handleless cabinet doors and drawers. It allows doors to pop open with a gentle push, eliminating the need for external handles for a clean, minimalist cabinet front.

The fitting has a slim 10mm (0.39") body diameter, a 40mm (1.57") stroke, and an overall length of 124mm (4.88"), made up of a 78mm (3.07") main body section and a 44mm (1.73") nose section. It mounts using a dedicated 4-hole bracket with an 82mm (3.23") total hole spread, designed to sit flush and concealed within the cabinet construction.

Technical Specifications

Technical Specifications (Quick Reference)

Specification Details
Model Code POM-40
Stroke 40mm (1.57")
Body Diameter 10mm (0.39")
Overall Body Length 124mm (4.88")
Body Segments 78mm (3.07") + 44mm (1.73")
Mounting Bracket Holes 4 holes, 82mm (3.23") total spread
Bracket Width 10mm (0.39")

Fitting Instructions

Mounting Bracket Drilling Diagram — POM-40

  • Hole Spacing: First hole at 14.5mm (0.57") from the cabinet edge, then 20mm (0.79") to the second hole, then 12mm (0.47") to the third hole, then 20mm (0.79") to the fourth hole
  • Bracket Width: 10mm (0.39")
  • Total Hole Spread: 82mm (3.23") from the first to the last mounting hole

Position the mounting bracket relative to the edge of the cabinet as shown in the manufacturer's drilling diagram — accurate hole spacing is essential for the fitting to align and operate smoothly.

Recommended Applications

Where this fits best

  • Handleless Cabinet Doors: Eliminates the need for external handles or knobs for a clean, minimalist front
  • Modular Kitchen Cabinets: Ideal for base and wall cabinets in contemporary handleless kitchen designs
  • Wardrobe Doors: Suitable for handleless wardrobe and closet door installations
  • Drawer Fronts: Can be adapted for drawer applications requiring a push-to-open mechanism

Installation Guidelines

Step-by-Step Installation

  1. Confirm your cabinet has sufficient internal depth to accommodate the fitting's 124mm (4.88") overall body length
  2. Mark the mounting bracket hole positions on the cabinet panel using the POM-40 drilling diagram — 4 holes spaced 14.5mm, 20mm, 12mm, and 20mm apart
  3. Drill the mounting holes at the marked positions, maintaining the correct edge inset shown in the drilling diagram
  4. Fix the mounting bracket to the cabinet using the drilled holes, then attach the push open fitting body to the bracket
  5. Test the push-open action and confirm the magnetic catch holds the door securely closed until pushed

FAQs

1) What are the overall dimensions of the POM-40 fitting?

The POM-40 has a slim 10mm (0.39") diameter body with a 40mm (1.57") stroke and an overall length of 124mm (4.88"), made up of a 78mm (3.07") main body section and a 44mm (1.73") nose section.

2) What is the mounting bracket hole pattern for POM-40?

The POM-40 mounting bracket uses a 4-hole pattern with a total spread of 82mm (3.23"). Hole spacing runs 14.5mm (0.57") from the cabinet edge to the first hole, then 20mm (0.79"), 12mm (0.47"), and 20mm (0.79") between the remaining holes.

3) What tools do I need to install this fitting?

You will need a drill with an appropriately sized bit for the mounting holes, a screwdriver to fix the bracket, and a measuring tape or the printed drilling template to accurately mark hole positions per the manufacturer's diagram.

4) How much cabinet depth do I need for this fitting?

Ensure your cabinet has sufficient internal depth to accommodate the fitting's 124mm (4.88") overall body length, plus clearance for the door to open fully when the mechanism is triggered.

5) Does the magnetic catch require any maintenance?

The magnetic catch is a self-contained component and generally requires no lubrication or adjustment beyond correct initial installation. Periodically check that the mounting bracket screws remain tight, as loose mounting can affect the reliability of the push-open action over time.

Why Buy from HomeRun?

  • Quality Cabinet Hardware: Reliable push-open mechanisms for handleless cabinet designs
  • Bangalore Fulfilment: Quick local availability
  • Project-Friendly Availability: Single units or bulk quantities for full kitchen and wardrobe fitouts

Returns & Exchange Policy

  1. Return within 72 hours of delivery for:
    • Damaged or defective product
    • Wrong or missing item
  2. Product cannot be returned once installed or used
  3. Refer to Refund Policy for complete details
