Ebco Pro Lift Cabinet Gas Pump, 20 Kg, Regular Close
Ebco Pro Lift Cabinet Gas Pump, 20 Kg, Regular Close
In stock
Couldn't load pickup availability
Product Highlights
Quick Answer: What is Ebco Pro Lift Cabinet Gas Pump used for?

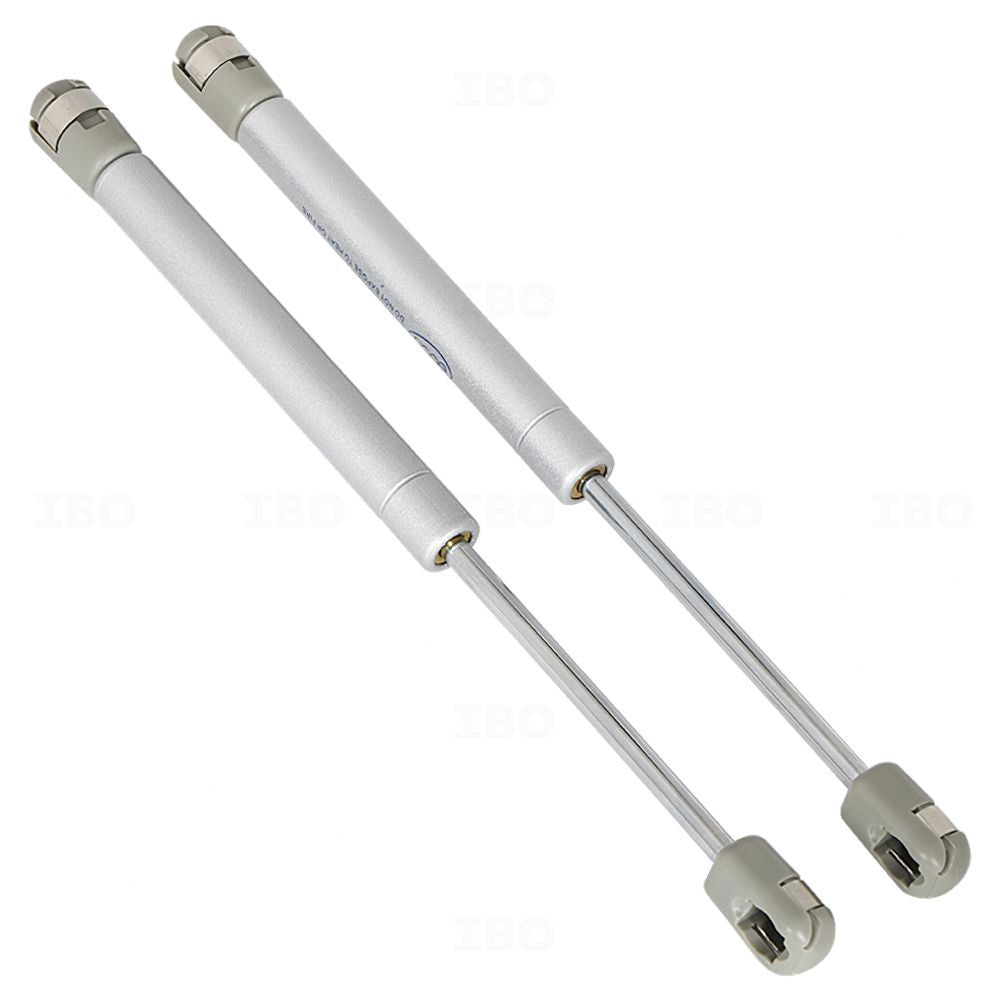

Ebco Pro Lift Cabinet Gas Pump PLC-20 is a hydraulic gas spring lift-up mechanism with 200N force, designed for smooth, controlled opening of overhead kitchen cabinets supporting doors up to 20kg with soft-close functionality.
- Manufacturer: EBCO
- Model Code: PLC-20
- Force Rating: 200N (Newton)
- Weight Capacity: 20Kg maximum
- Finish: Silver powder-coated
- Warranty: 12 months manufacturer warranty
Product Description
Ebco Pro Lift Cabinet Gas Pump PLC-20 provides effortless overhead cabinet access with premium gas spring technology. The 200N hydraulic mechanism ensures smooth, controlled lift-up operation with soft-close function that prevents slamming and protects your cabinet structure.
This complete installation kit supports cabinet doors up to 20kg and holds them at any angle for convenient access. The corrosion-resistant construction withstands kitchen humidity and heat, while the silver finish complements contemporary kitchen designs. Perfect for modular kitchens, wardrobes, and commercial installations.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Manufacturer | EBCO |
| Model Code | PLC-20 |
| Type | Hydraulic Gas Pump Lift-Up System |
| Force Rating | 200N (Newton) |
| Weight Capacity | 20Kg maximum |
| Finish | Silver powder-coated |
| Material | High-grade steel with hydraulic damper |
| Opening Angle | Up to 90-100 degrees |
| Warranty | 12 months manufacturer warranty |
Complete Package Includes
- 1 × Hydraulic Gas Pump Unit (200N, 20Kg capacity)
- Mounting Brackets (Left and Right)
- Installation Clips for secure attachment
- Fixing Screws and hardware kit
- Installation Instructions with mounting guide
Recommended Applications
- Overhead Kitchen Cabinets: Perfect for wall-mounted upper cabinets in modular kitchens
- Appliance Garages: Ideal for lift-up doors concealing microwaves and small appliances
- Wardrobe Top Boxes: Great for upper storage compartments in wardrobes and closets
- Commercial Kitchens: Suitable for restaurant and hotel cabinet installations
- Utility Cabinets: Excellent for laundry room and storage area overhead units
Installation Guidelines
- Measure Cabinet Door Weight: Ensure door weight does not exceed 20Kg maximum capacity
- Mark Mounting Positions: Mark bracket positions on cabinet frame and door according to instructions
- Install Bottom Bracket: Attach bottom bracket to cabinet base using provided screws
- Install Top Bracket: Fix top bracket to cabinet door at marked position
- Test and Adjust: Test opening and closing motion, adjust bracket positions for optimal performance
Professional Tip
Use one set of gas pumps for cabinet doors up to 600mm width. For wider doors (600-900mm), install two sets for balanced lifting and optimal performance.
Important Safety Notice
Do not exceed 20Kg weight capacity. Ensure proper installation by qualified professionals for warranty validity. Check door weight before purchase to select appropriate force rating.
FAQs
1) What is the maximum door weight this gas pump can support?
This gas pump supports cabinet doors up to 20Kg maximum weight. Exceeding this limit may cause malfunction and void the warranty.
2) How many gas pumps do I need for my cabinet door?
For doors up to 600mm width, use one set. For wider doors (600-900mm), install two sets for balanced operation and optimal performance.
3) Does this have soft-close functionality?
Yes, the hydraulic mechanism provides soft-close function that prevents slamming and protects your cabinet structure from damage.
4) What is the warranty coverage?
This product comes with a 12-month manufacturer warranty against manufacturing defects. Professional installation is recommended for warranty validity.
5) Can this be used for wardrobe cabinets?
Yes, this gas pump works perfectly for wardrobe top boxes, overhead storage compartments, and any lift-up cabinet door application within the 20Kg weight limit.
