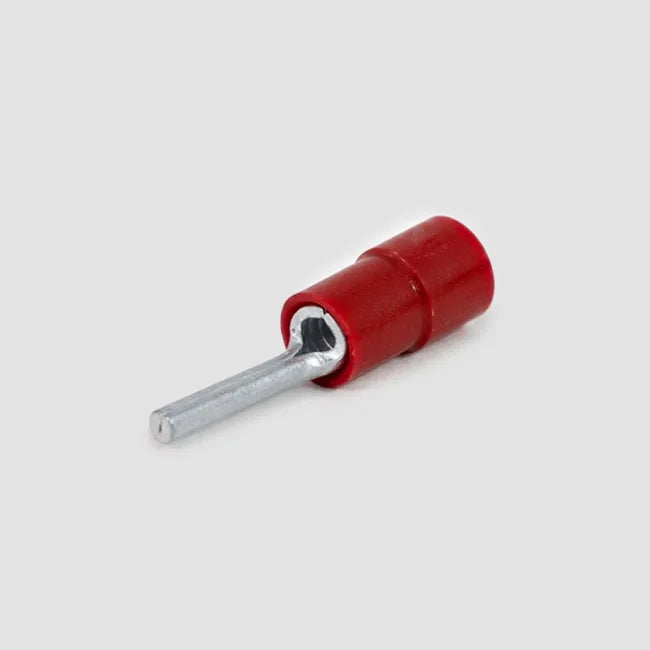

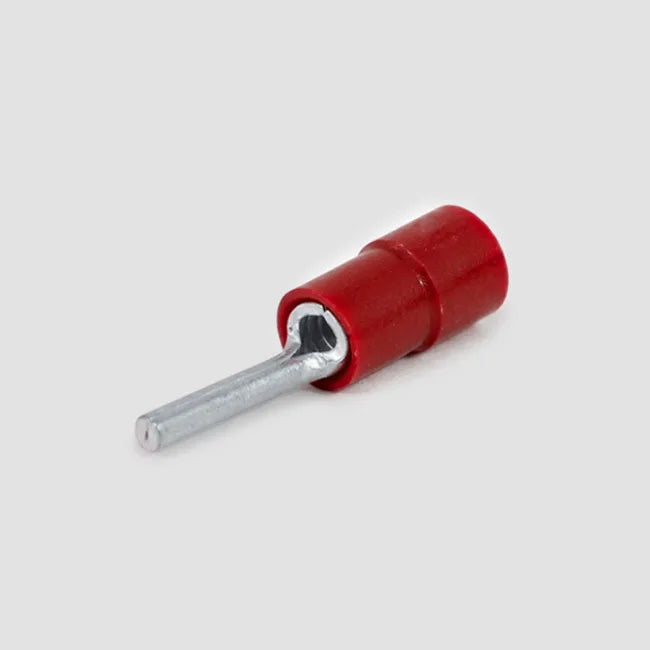

Dowells Insulated Pin Terminal (Pre-insulated Cable Lug) - 200 Nos/Pack

Dowells Insulated Pin Terminal (Pre-insulated Cable Lug) - 200 Nos/Pack

Out of stock

Rs. 0.00
Rs. 0.00
Sale Sold out
Incl GST Shipping calculated at checkout.
Models

Product Highlights

  • Manufacturer: Dowells (Polycab India Ltd.)
  • Product: Copper Insulated Pin Terminal - Crimp-on Cable Lug
  • Pack Size: 200 pieces per pack
  • Material: EC-Grade Electrolytic Copper
  • Finish: Electro-Tin Plated - corrosion and oxidation resistant
  • Insulation: Insulated Sleeve Provided
  • Installation: Compression Crimp - no soldering required
  • Application: Control panels, PLC racks, HVAC systems, industrial automation, and commercial machinery

Product Description

Dowells Copper Insulated Pin Terminal (CPI Series) is an EC-grade electrolytic copper, electro-tin plated, insulated crimp pin terminal for high-density electrical panel wiring. The integrated insulation sleeve prevents exposed wire ends from touching adjacent terminals in dense panel boards, eliminating short circuit risk. The solid cylindrical pin tip inserts smoothly into narrow terminal blocks, push-in connectors, and breakers. The compression crimp barrel gathers multi-strand flexible conductors into a solid cold-welded copper mass, eliminating wire splaying. Supplied in packs of 200 pieces, available in 4 variants covering cable cross-sections from 1.5 sqmm to 6.0 sqmm - select the correct item code for your wire size.

Key Features

  • Insulated sleeve: Eliminates exposed wire risk in dense panel boards - prevents short circuits and accidental contact
  • EC-Grade electrolytic copper: High-purity copper for minimal electrical resistance and maximum conductivity
  • Electro-tin plated: Full tin coating protects against moisture, rust, and oxidative corrosion
  • Solid cylindrical pin tip: Smooth insertion into narrow terminal blocks, push-in connectors, and breakers
  • No soldering required: Compression crimp creates a cold-weld bond - faster installation, no heat risk

Variant Selection - Choose the Correct Item Code

Item Code Cable Cross-Section Pack Qty
CPI-17 1.5 sqmm 200 pcs
CPI-18 2.5 sqmm 200 pcs
CPI-20 4.0 sqmm 200 pcs
CPI-22 6.0 sqmm 200 pcs

Technical Specifications

Technical Specifications (Quick Reference)

Specification Details
Brand Dowells (Polycab India Ltd.)
Terminal Profile Pin Type
Material EC-Grade Electrolytic Copper
Finish Electro-Tin Plated
Insulation Insulated Sleeve Provided
Installation Compression Crimp - Solderless
Country of Origin India

Installation Notes

Important - Read Before Crimping

  • Use a ratchet-action crimping tool: A professional ratchet crimping tool locks the barrel correctly - standard wire pliers will not produce a reliable joint
  • Strip to correct length: Strip wire strands to the exact length of the internal metal barrel before insertion - under-stripping leaves insulation inside the crimp zone
  • Use colour-coded insulation boots: When routing multiple channels side by side, use the multi-coloured insulation sleeves to visually map separate power phases or signal blocks

Recommended Applications

Where Dowells Insulated Pin Terminals fit best

  • Control panels and relay racks: Multi-point terminations inside PLC assemblies and distribution boxes
  • Industrial automation: Repeatable, secure connection points within multi-core wiring layouts
  • HVAC systems: Connecting flexible core wires inside environmental temperature controllers
  • Commercial machinery: Controller wiring connections inside production modules and equipment panels

Why Buy from HomeRun?

  • Authentic Dowells Product: Verified genuine Polycab India manufactured terminals
  • 60-Minute Bangalore Delivery: Express delivery to active service zones - ideal for panel construction and wiring projects
  • Project-Friendly Availability: Delivered as a 200-piece pack - order the variant and quantity your project needs

FAQs

1) How do I select the correct variant for my wire size?

Select based on your cable cross-section: CPI-17 for 1.5 sqmm, CPI-18 for 2.5 sqmm, CPI-20 for 4.0 sqmm, and CPI-22 for 6.0 sqmm wire. Using an incorrectly sized terminal will result in a loose crimp or an over-compressed barrel - both cause unreliable electrical contact.

2) What is the advantage of a pin terminal over a ring terminal for panel wiring?

Pin terminals are engineered for insertion into narrow terminal blocks, push-in connectors, and breakers where a ring lug cannot fit. The insulation sleeve also eliminates exposed wire risk in dense panel boards where adjacent terminals are close together, preventing short circuits without additional sleeving.

3) Can these terminals accommodate flexible multi-strand copper cables?

Yes - the crimp barrel is designed to gather loose multi-strand conductors into a solid cold-welded copper mass inside the pin tip, preventing wire splaying that causes intermittent contact or shorts in terminal blocks.

4) Does each pack contain 200 pieces of one selected variant?

Yes - each item code is sold as a single-variant pack of 200 pieces. Select the item code matching your wire size. If you need multiple sizes, order separate packs for each variant.

5) Do these terminals require soldering?

No - these are compression crimp terminals. A properly crimped joint using a ratchet-action crimping tool produces a cold-weld between the copper strands and the barrel wall that is mechanically and electrically reliable without any heat or solder.
