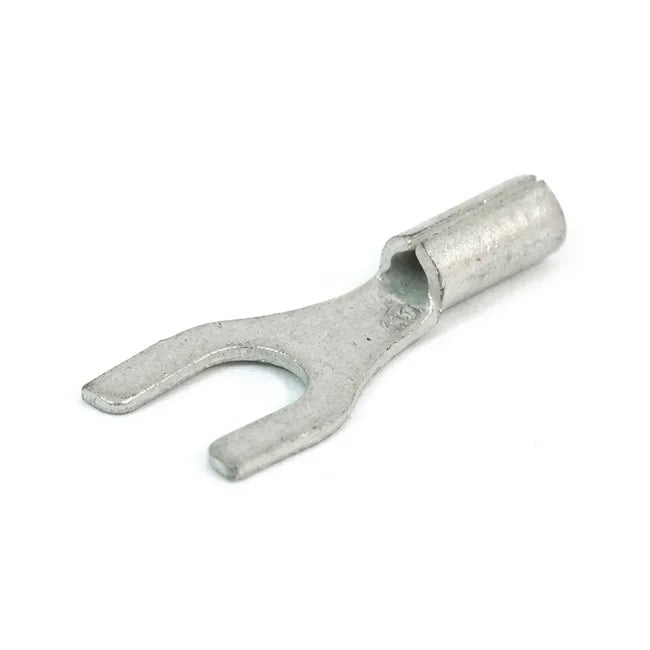

Dowells Copper Fork Terminal (Spade Cable Lug) - 200 Nos/Pack

Dowells Copper Fork Terminal (Spade Cable Lug) - 200 Nos/Pack

In stock

Rs. 617.00
Rs. 617.00
Sale Sold out
Incl GST Shipping calculated at checkout.
Models

Product Highlights

  • Manufacturer: Dowells Cable Accessories Pvt. Ltd. (A Subsidiary of Polycab India Ltd.)
  • Brand: Dowells (Polycab India Ltd.)
  • Product: Copper Fork Terminal - Spade Cable Lug
  • Pack Size: 200 pieces per pack
  • Material: EC-Grade Electrolytic Copper
  • Finish: Electro-Tin Plated - corrosion and oxidation resistant
  • Insulation: Non-Insulated
  • Stud Size: M3.5 (3.5mm) - all variants
  • Installation: Compression Crimp - no soldering required
  • Application: Control panels, terminal block junctions, industrial machinery, and commercial building automation

Product Description

Dowells Copper Fork Terminal (Spade Cable Lug) is a non-insulated, electro-tin plated EC-grade copper spade lug for fast, efficient electrical termination in control panels, terminal block junctions, and industrial machinery. The open-ended fork profile allows rapid connection without fully removing the terminal screw - simply loosen the fastener, slide the spade in, and tighten down. This saves significant installation time in dense panels and fast-paced assembly lines compared to ring terminals. The specially annealed barrel compresses uniformly without cracking, preventing wire fraying and accidental pull-outs. Supplied in packs of 200 pieces across 3 variants covering 1.5 sqmm to 6.0 sqmm cable cross-sections, all with M3.5 stud holes.

Key Features

  • Fork / spade profile - faster installation: Slide in and out without fully removing the terminal screw - faster than ring lugs in dense panels
  • EC-Grade electrolytic copper: High-purity copper for minimal electrical resistance and stable current flow
  • Electro-tin plated: Full tin coating protects against oxidation, rust, and harsh environment deterioration
  • Annealed barrel: Uniform crimp compression without cracking - prevents wire fraying and pull-outs
  • No soldering required: Compression crimp creates a cold-weld bond - faster installation, no heat risk

Variant Selection - Choose the Correct Item Code

Item Code Cable Cross-Section Stud / Bolt Hole Pack Qty
RS-7249 1.5 sqmm M3.5 (3.5mm) 200 pcs
RS-7251 2.5 sqmm M3.5 (3.5mm) 200 pcs
RS-7253 4.0 - 6.0 sqmm M3.5 (3.5mm) 200 pcs

Technical Specifications

Technical Specifications (Quick Reference)

Specification Details
Brand Dowells (Polycab India Ltd.)
Terminal Profile Fork / Spade - Open-Ended
Material Electrolytic Copper
Finish Electro-Tin Plated
Insulation Non-Insulated
Stud Size M3.5 (3.5mm) - all variants
Installation Compression Crimp - Solderless

Installation Notes

Important - Read Before Crimping

  • Use a matched crimping tool: Use a verified Dowells crimping tool matched to the lug barrel size - standard pliers will not produce a reliable joint
  • Strip to barrel depth: Strip the conductor jacket cleanly to match the exact barrel depth - no bare strands should be exposed outside the entry point
  • Add insulation after crimping: These lugs are non-insulated - apply heat-shrink tubing or insulation tape over the bare crimped barrel where adjacent line isolation is required

Recommended Applications

Where Dowells Fork Terminals fit best

  • Industrial control panels: Clean terminations inside switchgear, relay panels, and power distribution blocks
  • Terminal block junctions: Compact multi-point terminal rails using M3.5 threaded screws
  • Vibration-prone environments: Machinery, automotive applications, and heavy motors where connection stability is critical
  • Commercial building automation: HVAC units, lighting control boxes, and corporate circuitry setups

Why Buy from HomeRun?

  • Authentic Dowells Product: Verified genuine Polycab India manufactured terminals
  • 60-Minute Bangalore Delivery: Express delivery to active service zones - ideal for panel construction and wiring projects
  • Project-Friendly Availability: Delivered as a 200-piece pack - order the variant and quantity your project needs

FAQs

1) What is the main advantage of a fork terminal over a ring terminal?

A fork terminal allows faster installation and replacement without fully removing the screw - simply loosen the terminal fastener, slide the open spade in or out, and re-tighten. Ring terminals require the screw to be completely removed before the lug can be fitted or swapped, which takes significantly longer in dense multi-circuit panels.

2) All three variants show M3.5 stud size - how do I choose between them?

Select based on your cable cross-section only - all three variants fit the same M3.5 terminal screw. Use RS-7249 for 1.5 sqmm wire, RS-7251 for 2.5 sqmm wire, and RS-7253 for 4.0 to 6.0 sqmm wire.

3) Can these be used for outdoor wiring?

The electro-tin plating resists oxidation and rust, but these are non-insulated lugs. For outdoor or damp environments, apply heavy-duty heat-shrink sleeves or use a weatherproof enclosure to fully seal the bare connection from ambient moisture and dust.

4) Do these terminals prevent wire strand splaying?

Yes - inserting stranded wire into the copper barrel and crimping with a proper tool compresses all strands into a solid cold-welded mass, eliminating loose wire fraying, hot spots, and accidental short circuits inside crowded control panels.

5) Do these terminals require soldering?

No - these are compression crimp lugs. A properly crimped joint using a matched crimping tool produces a mechanically and electrically reliable cold-weld bond without any heat or solder.
