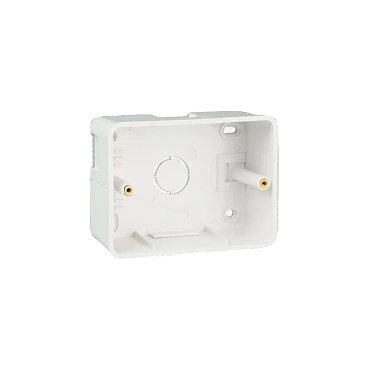

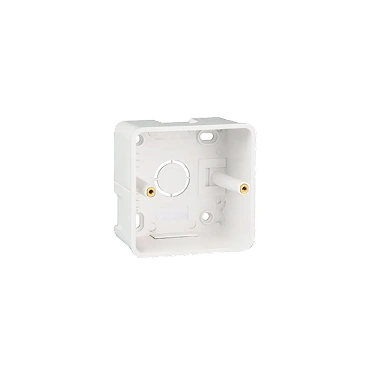

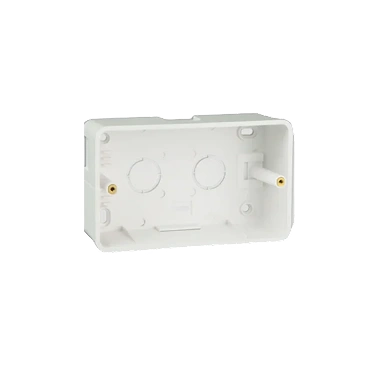

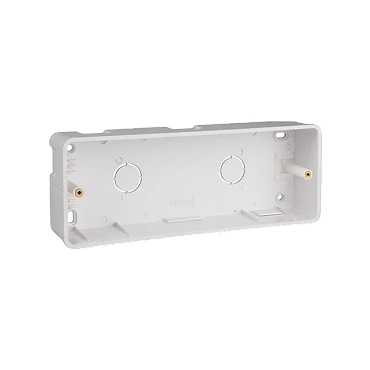

Anchor PVC Surface Box, White

Product Highlights

• Material: PVC (Polyvinyl Chloride)
• Brand: Anchor by Panasonic
• Color: White
• Configurations: 2, 3, 4, 6, 8, and 12 module sizes
• Mounting Type: Surface mounting for exposed installations
• Applications: Industrial, commercial, and residential buildings
• Benefits: Protects cables from external damage, prevents fire spread from electrical faults

Product Description

Anchor PVC Surface Box is a premium white PVC electrical enclosure manufactured by Anchor Panasonic, engineered to provide lightweight and cost-effective mounting for modular switches, sockets, dimmers, and other electrical accessories in surface-mounted applications. Constructed from high-quality PVC, this surface box offers excellent insulation, corrosion resistance, and long-term durability for exposed wiring installations.

Available in multiple module configurations from 2 to 12 modules, these surface boxes accommodate various installation requirements from single switch points to multi-gang switch panels. The white finish provides a clean, professional appearance that blends seamlessly with modern interiors. Ideal for basements, garages, workshops, industrial facilities, and retrofit installations where concealed wiring is impractical, these boxes protect electrical cables from physical damage while preventing fire spread in case of electrical faults.

Recommended Applications

• Surface Wiring Systems: Basements, garages, workshops, and utility areas where exposed wiring is acceptable
• Industrial Facilities: Factories and warehouses requiring surface-mounted switch panels
• Renovation Projects: Retrofit electrical installations without wall demolition or extensive plastering
• Temporary Installations: Construction sites and temporary power distribution systems
• Commercial Spaces: Warehouses, storage areas, and back-of-house locations
• Outdoor Covered Areas: Covered patios, carports, and semi-outdoor spaces (with proper weatherproofing)

Installation Guidelines

FAQs

1) What is the difference between surface boxes and flush-mount back boxes?

Surface boxes mount directly on wall surfaces, sitting proud of the wall for exposed installations. Flush-mount back boxes are concealed within walls, sitting flush with the plastered surface. Surface boxes are ideal for retrofits, basements, and industrial settings where exposed wiring is acceptable or wall demolition is impractical.

2) Why choose PVC over GI metal surface boxes?

PVC surface boxes offer several advantages: lighter weight for easier installation, corrosion resistance in damp environments, no grounding required (non-conductive), lower cost, and easier to work with. However, metal boxes provide superior fire resistance and impact protection, making them better for high-risk or heavy-duty applications.

3) How do I choose the right module size?

Count the number of modular switches, sockets, or accessories you need at that location. Each standard switch/socket occupies 1 module. For example, a 2-switch + 1-socket setup requires a 3-module surface box. For complex panels with dimmers, USB chargers, and multiple switches, choose 6, 8, or 12-module configurations.

4) Are Anchor surface boxes compatible with other brands' switches?

While Anchor surface boxes are designed for Anchor modular switches and accessories, they generally accommodate other brands following standard modular dimensions. However, for guaranteed fit, optimal aesthetics, color matching, and warranty coverage, we recommend using Anchor switches with Anchor surface boxes.

5) Can I use these surface boxes outdoors?

While PVC is weather-resistant, standard surface boxes are designed for dry or damp indoor locations. For outdoor use, ensure the box has appropriate weatherproof rating and use weatherproof gaskets, conduit seals, and weatherproof switch covers. For fully exposed outdoor locations, consider boxes specifically rated for wet locations.

6) Do I need to ground a PVC surface box?

No, PVC surface boxes do not require grounding because they are non-conductive. However, you must still run a ground wire through the box to maintain circuit grounding continuity. The ground wire connects to outlets, switches, and metal fixtures, but not to the PVC box itself.

7) How do I ensure a professional-looking installation?

For professional results: (1) Use a level to ensure boxes are perfectly horizontal/vertical, (2) Align multiple boxes at the same height for consistency, (3) Use matching white conduit and accessories for a cohesive look, (4) Secure all cables neatly with cable clips, and (5) Use proper cover plates that match the box and switch brand.
