Ebco Pro Motion Tandem Box, S3 Series, 50Kg, Full Set, Anthracite

Product Highlights

• Manufacturer: Ebco
• Series: Pro Motion S3 (Premium)
• System Type: Tandem Box Drawer System
• Load Capacity: 50 kg per drawer
• Closing Mechanism: Integrated soft-close
• Extension: Full extension for complete access
• Finish: Anthracite
• Application: Heavy-duty kitchen drawers and modular furniture
• Note: Facia, bottom panel, and back panel are not included

Product Description

Ebco Pro Motion Tandem Box S3 Series is a premium drawer system with a 50 kg load capacity and integrated soft-close mechanism, designed for heavy-duty kitchen drawer applications requiring smooth, silent operation and long-term durability. The full extension design gives complete access to the drawer's contents - nothing is hidden behind a partial-travel runner. The anthracite finish gives the system a dark grey metallic appearance suited to modern and contemporary modular kitchen interiors.

The system is sold as a complete tandem box set including the drawer box and runners. Facia, bottom panel, and back panel are not included and must be supplied separately by the installer or cabinet maker. Available in multiple height and depth combinations to suit different drawer configurations - refer to the size selection table below and always verify the actual measurements from the MRP sticker on the product box before installation, as the size printed on the outer brown box may not always match.

Technical Specifications

Size Reference Guide

Installation Guidelines

Recommended Applications

Why Buy from HomeRun?

FAQs

1) What is the load capacity and is it suitable for heavy cookware?

The Pro Motion S3 Series is rated at 50 kg per drawer - suitable for heavy pots, pans, cast iron cookware, and kitchen appliances. This is significantly higher than standard drawer systems which are typically rated at 25-30 kg, making the S3 the correct choice for kitchen drawers that carry heavy loads on a daily basis.

2) The size on the box says 400mm but the actual measurement is 390mm - is my product correct?

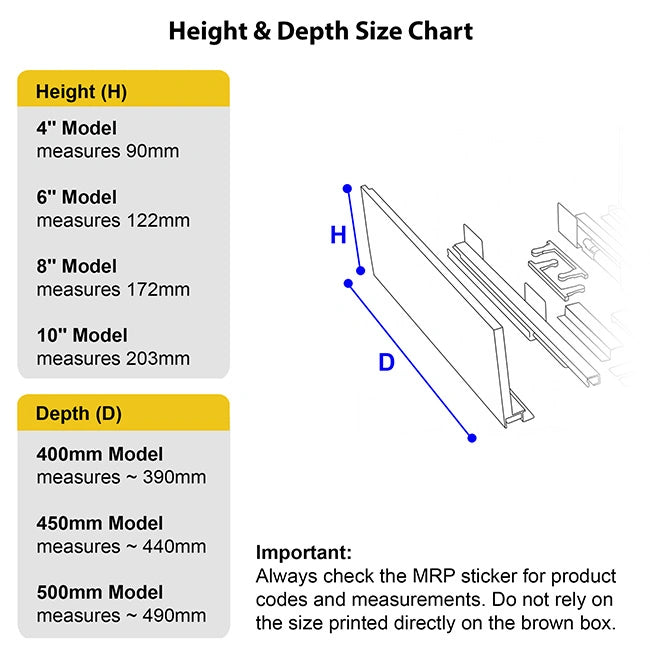

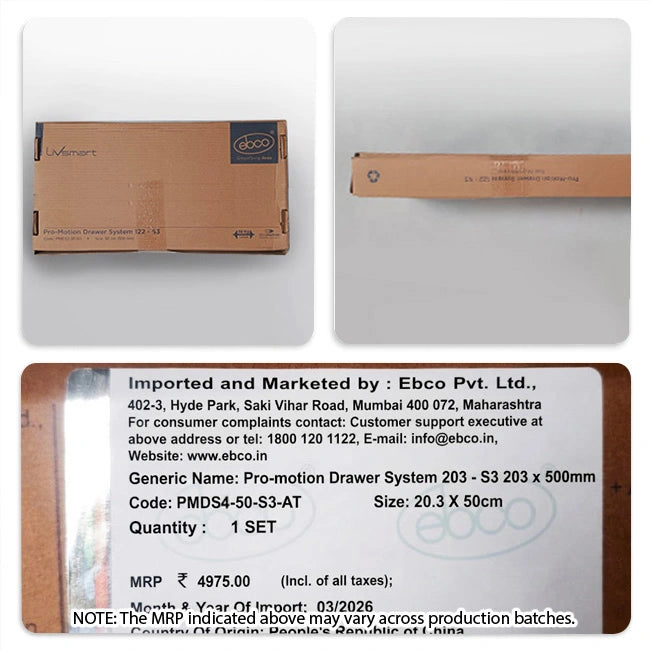

Yes - this is expected. The size label on the box (e.g. 400mm, 450mm, 500mm) is the nominal model designation, not the exact physical measurement. The actual drawer depth is slightly smaller than the nominal size to account for installation clearances - a 400mm model measures approximately 390mm actual, a 450mm model measures approximately 440mm, and a 500mm model measures approximately 490mm. The same applies to height - a 4" model measures 90mm actual, not 101mm. Always confirm the correct size by checking the MRP sticker on the product box, not the size printed on the outer brown box.

3) What is the nominal vs actual size - why do they differ?

The nominal size is the model designation used in catalogues and orders. The actual physical measurement is always slightly smaller - this is standard practice in drawer system manufacturing so the installed drawer sits correctly within the cabinet with proper clearances on all sides. When planning your cabinet dimensions, always design around the actual measurements, not the nominal size. Refer to the size reference table above for all available height and depth combinations.

4) What is included in the box - are the panels included?

The package is a complete tandem box system including the drawer box sides and runners. Facia, bottom panel, and back panel are not included - these must be supplied separately by your carpenter or cabinet maker to match your kitchen design and material specification. Confirm with your installer what additional components are needed before ordering.

5) Do you have open delivery?

Yes, we have open delivery.
