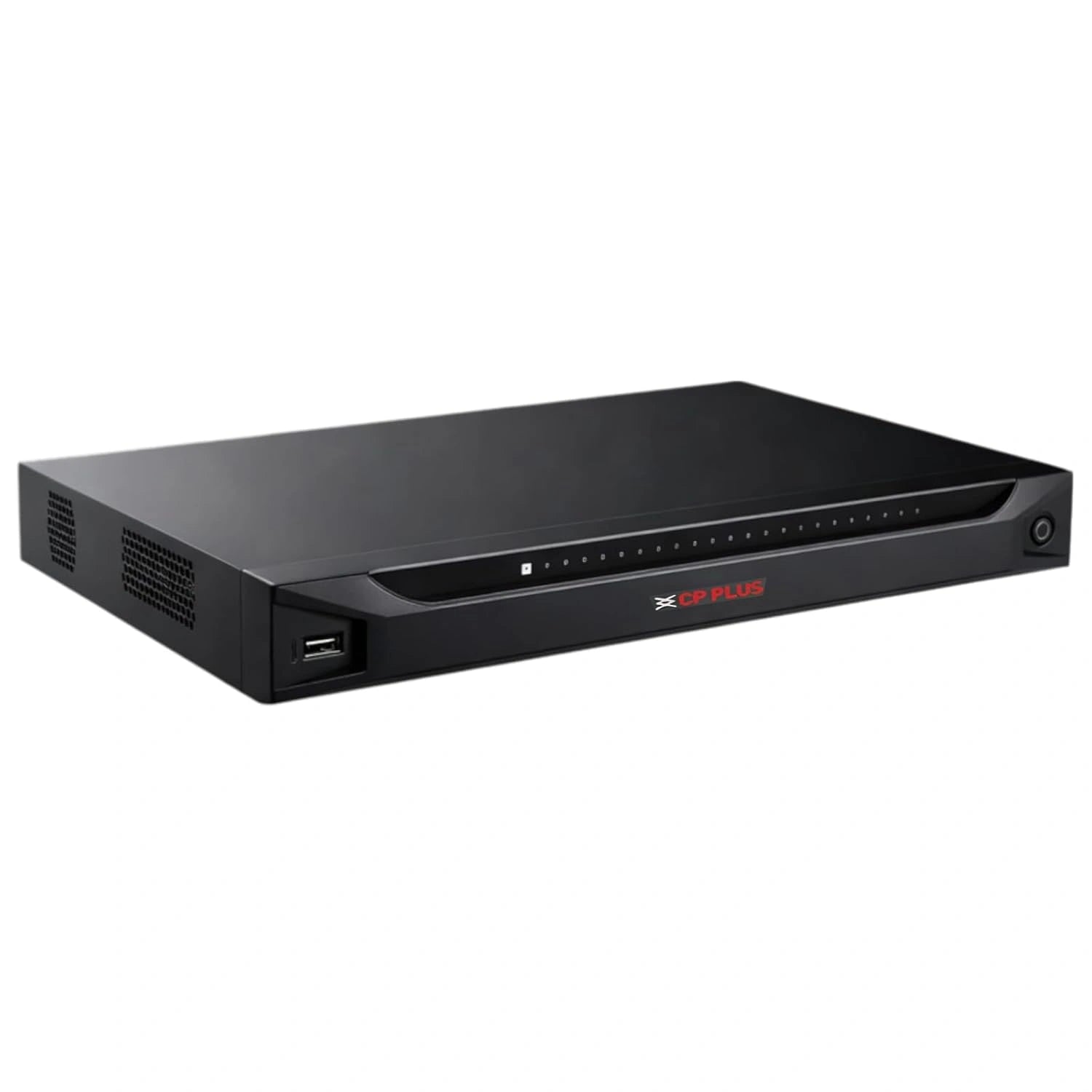

CP Plus 16 Channel NVR

CP Plus 16 Channel NVR

In stock

Rs. 9,145.00
Rs. 11,999.00 Rs. 9,145.00
Sold out
Incl GST Shipping calculated at checkout.



Product Highlights

  • Manufacturer: CP Plus
  • Model: CP-UNR-4K2161-V4 (16 Channel 4K NVR)
  • Channel Support: Up to 16 IP cameras, up to 12MP each
  • Video Output: 4K HDMI (3840×2160) + simultaneous VGA
  • Compression: Instastream, H.265, H.264+, H.264, MJPEG
  • Storage: 1 SATA HDD bay, supports up to 20TB
  • AI Features: AI by Camera, NVR-based Smart Motion Detection, SMD Plus (up to 4 channels)
  • Warranty: 2 Years standard CP Plus warranty

Product Description

CP Plus 16 Channel 4K NVR (CP-UNR-4K2161-V4) is a network video recorder built for medium-to-large surveillance setups, letting you connect and manage up to 16 IP cameras from a single unit. It delivers native 4K (3840×2160) HDMI output alongside simultaneous VGA output, giving crisp, high-resolution live viewing and playback for offices, warehouses, retail stores, schools, and residential complexes.

Behind the scenes, the NVR runs CP Plus's proprietary Instastream compression, which saves up to 70% more bandwidth than standard H.265 — cutting both bandwidth and storage costs on longer recording runs. It also supports H.265, H.264+, H.264, and MJPEG for flexible integration across camera types, plus AI-powered smart detection (perimeter protection, smart motion detection, and human/vehicle-filtering SMD Plus on up to 4 channels) to reduce false alarms.

Key Features

  • 16-Channel IP Support: Connect and manage up to 16 IP cameras from a single unit.
  • 4K Ultra HD Output: Native 4K (3840×2160) HDMI output with simultaneous VGA output for crisp live viewing and playback.
  • Up to 12MP Camera Input: Supports high-resolution IP cameras up to 12MP for sharper identification and evidence detail.
  • Instastream Compression: Proprietary smart encoding saving up to 70% more bandwidth than standard H.265.
  • Multi-Codec Support: Instastream, H.265, H.264+, H.264, and MJPEG for flexible camera integration.
  • AI-Powered Smart Detection: AI by Camera (Perimeter Protection & Smart Motion Detection) plus NVR-based SMD and SMD Plus (human/vehicle filtering) on up to 4 channels.
  • Large Storage Capacity: 1 SATA HDD bay supporting drives up to 20TB for long-duration continuous recording.
  • ONVIF Compliant: Supports Profiles S, T & G for interoperability with third-party IP cameras.

Technical Specifications

Technical Specifications (Quick Reference)

Specification Details
Model Number CP-UNR-4K2161-V4
Channels 16 Channel IP Camera Input
Video Compression Instastream, H.265, H.264+, H.264, MJPEG
Max Camera Resolution Up to 12MP
Video Output 1 HDMI (4K @ 3840×2160), 1 VGA (simultaneous)
Decoding Capability 6 × 1080p @ 30fps
Bandwidth (In/Rec/Out) 144 / 144 / 72 Mbps (AI disabled mode)
Storage 1 SATA HDD port, supports up to 20TB
USB Ports 2 × USB 2.0 (backup & mouse)
Network Port 1 × Gigabit Ethernet (RJ-45)
Audio RCA Audio In/Out (1 channel), Two-way Talk supported
AI Features AI by Camera – Perimeter Protection, SMD; NVR-based SMD; SMD Plus (human/vehicle filter, up to 4 channels)
ONVIF Compliance Profiles S, T & G
Operating System Embedded Linux
Processor Dual-core embedded processor
Mobile App iCMOB / gCMOB
CMS Software KVMS Pro Lite
Playback Multi-channel synchronous playback (up to 16 channels)
Recording Modes Manual, Scheduled, Motion-based, Event-based
Warranty 2 Years (standard CP Plus warranty; some sellers offer extended off-site warranty with GST bill)

Recommendations & Use Cases

This NVR is best suited for small-to-medium businesses, residential societies, and institutions that need centralized 16-camera monitoring with reliable remote access and high-resolution playback.

Where this product fits best

  • Retail, Offices & Warehouses: Small-to-medium businesses and showrooms looking for centralized 16-camera monitoring.
  • Residential Societies & Gated Communities: Wide-area coverage with high-resolution recording.
  • Schools & Hospitals: Reliable remote monitoring and multi-channel playback for institutional sites.
  • Analog-to-IP Upgrades: Users moving off analog DVR systems for better image quality and smarter analytics.

Pairing Suggestions

Get the most out of this NVR

  • Cameras: Pair with CP Plus 4MP/8MP/12MP IP bullet or dome cameras for maximum resolution benefit.
  • PoE Switch: Combine with a PoE switch (e.g., CP Plus 8/16 port PoE switch) to simplify cabling and power delivery to IP cameras.
  • Hard Disk: Pick a surveillance-grade HDD (up to 20TB) rather than a standard desktop HDD, for 24×7 recording reliability.
  • Higher AI Needs: For AI-based human/vehicle detection on more than 4 channels, consider higher-tier models such as the CP-UNR-4K4162-V4 with 2 HDD bays.

Points to Note Before Buying

  • Single HDD Bay: This model has only 1 HDD bay — for larger storage redundancy (RAID/dual HDD), look at the 2-bay variant (V4 4162 series).
  • AI Camera Pairing: AI Smart Motion/Perimeter features work best when paired with CP Plus AI-enabled cameras; performance may vary with third-party ONVIF cameras.
  • Bandwidth Planning: Bandwidth drops when AI features are enabled — factor this into camera count/resolution planning for busy sites.

Why Buy from HomeRun?

  • Genuine CP Plus Hardware: Verified authentic units directly backed by full manufacturer warranty.
  • 60-Minute Bangalore Delivery: Express fulfillment directly to your current project site when time is tight.
  • Project-Friendly Pricing: Transparent wholesale structures optimized for surveillance installers and businesses alike.

FAQs

1) How many cameras can I connect to this NVR, and what's the maximum resolution supported?

This NVR supports up to 16 IP cameras simultaneously, with individual camera resolution support up to 12MP. However, total incoming bandwidth is capped at 144 Mbps (AI disabled), so the resolution/frame-rate mix across all 16 channels needs to stay within that limit for smooth recording.

2) What is the maximum hard disk size I can install, and is it included in the box?

The NVR supports 1 SATA HDD up to 20TB capacity. The hard disk is not included by default — it needs to be purchased separately and installed. We recommend a surveillance-rated HDD (e.g., WD Purple or Seagate SkyHawk) for continuous 24×7 recording durability.

3) Can I access live feed and recordings remotely on my phone?

Yes. The NVR supports remote viewing through CP Plus's mobile apps — iCMOB (iOS) and gCMOB (Android) — allowing live streaming, playback, and alerts from anywhere with an internet connection. Desktop access is available via KVMS Pro Lite CMS software.

4) Does this NVR work with cameras from other brands, or only CP Plus cameras?

It's ONVIF compliant (Profiles S, T & G), so it can work with many third-party IP cameras that follow the ONVIF standard. That said, CP Plus's own AI features (like SMD Plus, Perimeter Protection via camera) are optimized for and work best with CP Plus-branded IP cameras.

5) What's the difference between this and other CP Plus NVR models like the V2 or 4162 series?

The V4 (this model) supports Instastream compression (up to 70% more bandwidth savings than H.265) and higher AI feature integration compared to the older V2 series. Compared to the CP-UNR-4K4162-V4, this model has 1 HDD bay vs. 2 HDD bays on the 4162 — so if you need larger redundant storage, the 4162 series is the better choice; if 20TB single-drive storage is sufficient, this V4 model offers better value.

Returns & Exchange Policy

  1. Return within 24 hours of delivery for:
    • Damaged or defective product
    • Wrong or missing item
  2. Product cannot be returned once installed or used
  3. Refer to Refund Policy for complete details
