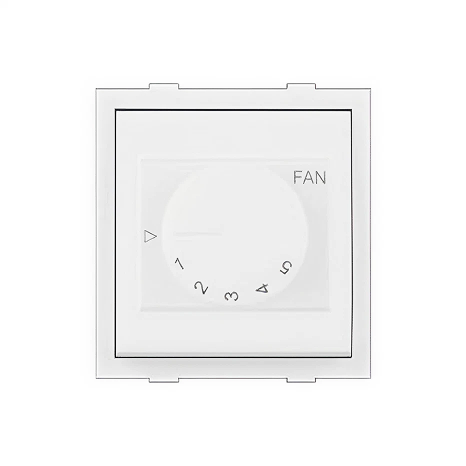

Anchor Roma Fan Regulator, 5 Step, 100W, White, 2 Module
Anchor Roma Fan Regulator, 5 Step, 100W, White, 2 Module
In stock
Couldn't load pickup availability
Product Highlights
Quick Answer: What is Anchor Roma Fan Regulator used for?
Anchor Roma Fan Regulator is a 100W 5-step rotary fan speed controller, designed for reliable ceiling fan speed adjustment with economical pricing and proven Roma series durability.
- Power Rating: 100 Watts
- Control Type: 5-step rotary regulator
- Module Size: 2 Module
- Color: White
- Brand: Anchor Panasonic Roma Classic
Product Description
Anchor Roma Fan Regulator offers reliable 5-step fan speed control with its proven rotary mechanism. Part of India's most trusted modular electrical range, this regulator provides dependable performance for standard ceiling fans at an economical price point.
The 100W rating makes it suitable for standard ceiling fans, while the 5-step design provides adequate speed variation for most comfort needs. Built with Anchor Panasonic's decades of manufacturing expertise, the Roma fan regulator delivers consistent performance and long service life, making it the preferred choice for budget-conscious residential and commercial installations.
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Brand | Anchor Panasonic Roma Classic |
| Power Rating | 100 Watts |
| Control Type | 5-Step Rotary |
| Module Size | 2 Module |
| Technology | Resistor-based speed control |
Recommended Applications
- Bedroom Ceiling Fans: Reliable speed control for comfortable sleep at different temperatures
- Living Room Fans: Adjust airflow for varying comfort levels throughout the day
- Office Spaces: Cost-effective fan speed control for commercial environments
- Rental Properties: Economical choice for landlords and property managers
- Budget Projects: Value-priced solution for builder projects and new construction
- Replacement Installations: Direct replacement for existing Roma fan regulators
Installation Guidelines
- Power Disconnection: Switch off the main supply and the fan circuit breaker before starting installation
- Wire Connection: Connect incoming live wire to input terminal and outgoing wire to fan using 1.5 sq mm copper wire. Ensure neutral wire bypasses the regulator directly to the fan
- Module Mounting: Insert the regulator module into the 2-module space in your Anchor Roma plate
- Testing: Restore power and test all 5 speed steps to ensure proper operation from minimum to maximum
FAQs
1) What is the difference between 5-step and electronic fan regulators?
5-step regulators use resistors to provide fixed speed levels, offering simple, economical operation. Electronic regulators provide stepless, smooth control with better energy efficiency but at a higher cost. 5-step regulators are proven, reliable, and budget-friendly.
2) Will this regulator work with all ceiling fans?
This regulator works with most standard ceiling fans up to 100W. It's compatible with conventional induction motor fans. For BLDC (brushless DC) fans, check if they support external regulators, as many have built-in electronic controls.
3) Why does my fan make a humming noise with this regulator?
Some humming is normal with resistor-based regulators, especially at lower speeds. Excessive humming may indicate loose connections, incompatible fan motor, or worn regulator. Ensure all wire connections are tight and the fan is compatible.
4) Can I use this regulator for exhaust fans or table fans?
This regulator is designed for ceiling fans specifically. While it may work with some exhaust fans, it's not recommended for table fans or other motor types without verifying compatibility, as motor characteristics vary.
5) Why does my fan need a separate switch along with this regulator?
While the regulator controls speed, a separate switch allows you to completely turn off the fan without adjusting the regulator to zero. This is more convenient and helps maintain your preferred speed setting for the next use.
6) How long will this fan regulator last?
With proper installation and normal use, Anchor Roma fan regulators typically last 5-10 years or more. The simple resistor-based design has fewer components to fail compared to electronic regulators, contributing to long service life.
