Jaquar High-Flow Single Lever Diverter Exposed Parts Kit

Jaquar High-Flow Single Lever Diverter Exposed Parts Kit

In stock

Rs. 2,992.00
Rs. 3,400.00 Rs. 2,992.00
Sale Sold out
Incl GST Shipping calculated at checkout.
Models

Product Highlights

  • Manufacturer: Jaquar India
  • Product: High-Flow Single Lever Diverter Exposed Parts Kit
  • Variants Available: Kubix Prime - KUB-CHR-35079NK, Opal Prime - OPL-CHR-15079NK, Alive - ALI-CHR-85079NK
  • Material: Extruded Brass Rods
  • Finish: Polished Chrome - Nickel
  • Operation: Single Lever with smooth hot/cold control
  • Diverter: Pull-type automatic return button - resets to default outlet when water turns off
  • Includes: Wall flange with integrated water seals, single control lever, brass cartridge sleeve, automatic return diverter button assembly
  • Application: Luxury shower and bath diverter setups in residential and commercial bathrooms

Important - Exposed Trim Kit Only

This listing contains the exposed decorative trim parts only - the wall flange, control lever, cartridge sleeve, and diverter button. The internal in-wall concealed valve body (Jaquar ALD-079N) must be purchased and installed separately during the masonry stage before this kit can be fitted.

Product Description

Jaquar High-Flow Single Lever Diverter Exposed Parts Kit is the premium brass decorative trim set that completes a concealed bath-shower diverter installation. The kit includes the designer wall flange with integrated water seals, single control lever, solid brass cartridge sleeve, and heavy-duty automatic return diverter button - all manufactured from IS:319-1989 extruded brass rods and IS:410-1977 stamped brass sheets, finished with Nickel 10.0µm and Chrome 0.3µm plating validated to 500+ hours salt spray. The pull-type diverter button automatically resets to the default outlet when water is turned off, preventing the next user from being caught by an unexpected overhead shower.

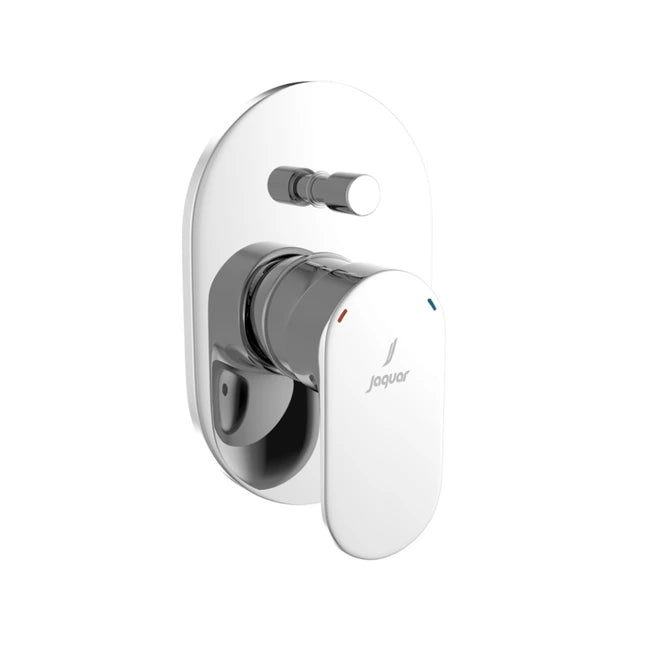

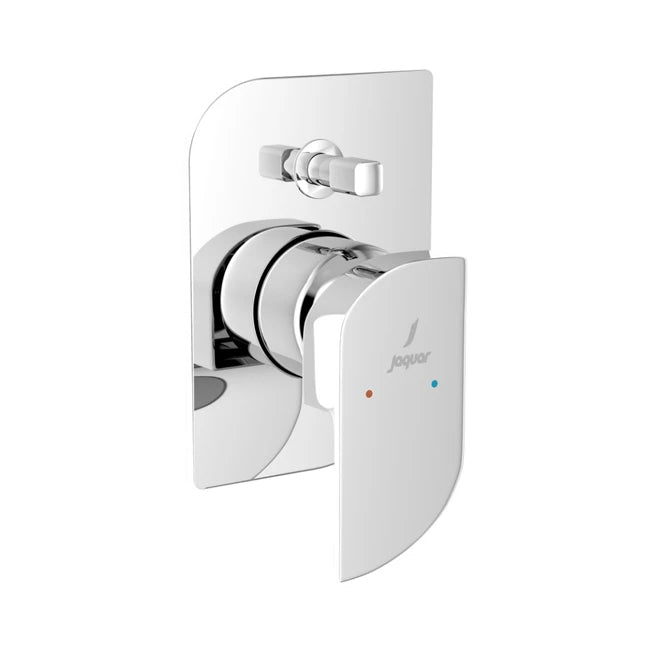

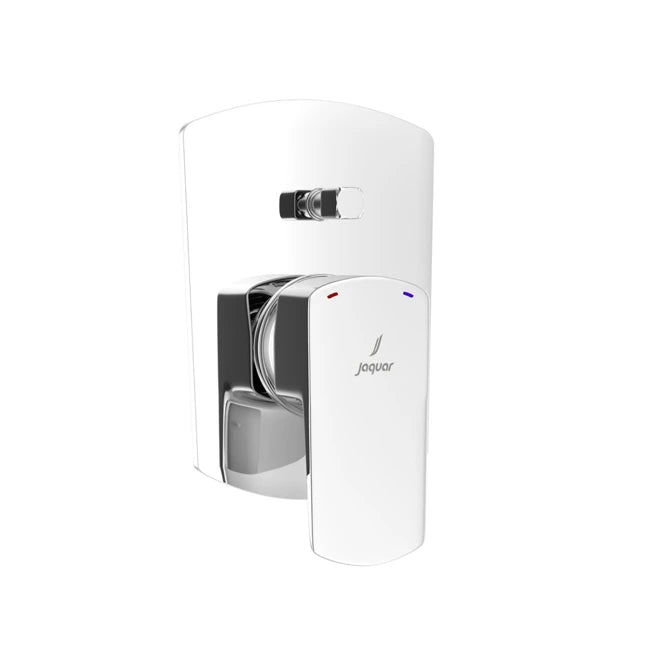

Available in three design styles - Kubix Prime (150 x 150mm square plate), Opal Prime (150 x 185mm soft rectangle), and Alive (150 x 200mm oblong shield) - all sharing the same mechanical footprint on the ALD-079N concealed body. Trim styles can be swapped at any time without disturbing the in-wall plumbing or tiles.

Key Features

  • 500+ hour salt spray validated finish: Nickel 10.0µm and Chrome 0.3µm plating resists hard water staining and tarnishing
  • Auto-return diverter button: Resets to default outlet when water turns off - prevents surprise overhead shower on next use
  • Certified brass construction: IS:319-1989 extruded rods and IS:410-1977 stamped sheets - no corrosion, long-term durability
  • 3 interchangeable design styles: Kubix Prime, Opal Prime, and Alive - swap trim without any tile or wall work
  • Polished chrome finish: Nickel 10.0µm and Chrome 0.3µm - 500+ hour salt spray validated for long-term durability

Design Variant Comparison

Feature Kubix Prime Opal Prime Alive
Product Code KUB-CHR-35079NK OPL-CHR-15079NK ALI-CHR-85079NK
Design Style Sharp square / geometric Soft rounded rectangle Fluid oblong / organic
Plate Dimensions 150 x 150 mm 150 x 185 mm 150 x 200 mm
Best Paired With Square shower arms, angular accessories Rounded spouts and accessories Organic-shaped spouts and accessories
In-Wall Valve ALD-079N (same) ALD-079N (same) ALD-079N (same)
Interchangeable Yes - same mechanical footprint Yes - same mechanical footprint Yes - same mechanical footprint

Technical Specifications

Technical Specifications (Quick Reference)

Specification Details
Brand Jaquar India
Brass Rod Standard IS:319-1989 - Cu 56-59%, Pb 2-3.5%, Fe 0-0.35%, Zn Remainder
Brass Sheet Standard IS:410-1977 - Cu 61.5-64.5%, Pb 0-0.3%, Zn Remainder
Plating Nickel 10.0µm + Chrome 0.3µm
Salt Spray Rating 500+ hours validated
Operation Single lever - smooth hot/cold control
Diverter Pull-type automatic return button
Compatible Valve Jaquar ALD-079N (sold separately)
Operating Pressure 0.5 Bar (Min) to 5.0 Bar (Max)
Finish Polished Chrome (CHR)
Kit Contents Wall flange with integrated water seals, control lever, brass cartridge sleeve, diverter button assembly

Installation Notes

Important - Read Before Installation

  • In-wall valve must be installed first: The Jaquar ALD-079N concealed body must be plumbed into the wall, pressure-tested, and tiling completed before fitting this exposed kit
  • Shut off water supply: Close the main bathroom isolation valves before starting the trim installation
  • Remove the tile guard: Unclip and remove the plastic protection shield from the pre-installed ALD-079N valve body
  • Mount the wall flange: Slide the designer wall flange over the internal cartridge sleeve with rubber gaskets seated flush and tight against the finished tile surface
  • Fit the lever handle: Press firmly onto the cartridge spindle, tighten with the Allen key via the underside grub screw, and push in the hot/cold indicator plug
  • Attach the diverter button: Thread the automatic return diverter button assembly onto the diverter rod until snug
  • Test: Open water supply, test full hot to cold lever travel, and pull the diverter button to verify clean, leak-free switching between outlets

Why Buy from HomeRun?

  • Authentic Jaquar Product: Verified genuine product sourced from authorized Jaquar channels
  • 60-Minute Bangalore Delivery: Express delivery to active service zones - ideal for active plumbing and renovation projects
  • Project-Friendly Availability: Single-unit ordering for bathroom-by-bathroom procurement on residential and commercial fit-outs

FAQs

1) Does this kit include the internal valve body that goes inside the wall?

No - this is the exposed decorative trim kit only - the wall flange, control lever, cartridge sleeve, and diverter button that are visible after tiling is complete. The internal concealed valve body (Jaquar ALD-079N) must be purchased separately and installed inside the wall during the masonry stage, before tiling begins.

2) Why do the three variants have different faceplate heights?

The varying plate dimensions reflect each design's aesthetic language. The Kubix Prime is a compact 150 x 150mm square that suits angular, geometric bathroom themes. The Opal Prime (150 x 185mm) and Alive (150 x 200mm) have taller plates to accommodate their elongated curves and frame the lever and diverter button within the design silhouette. All three connect to the same ALD-079N internal valve - the plate size is a design choice, not a performance difference.

3) Can I change the trim style or finish later without breaking tiles?

Yes - all three variants share the same mechanical footprint on the ALD-079N concealed body. You can swap the wall flange, lever, and diverter button between any Kubix, Opal, or Alive style at any time without touching the in-wall plumbing or tile work.

4) Will this operate reliably with a gravity-fed overhead water tank?

Yes - the kit operates from a minimum of 0.5 Bar, which most standard overhead tank setups meet. For a full high-flow rainfall shower experience, a sustained line pressure of 2.0 to 3.0 Bar is recommended. If your building's pressure is consistently below 1.0 Bar, a pressure booster pump will significantly improve shower performance.

5) How do I maintain the chrome or special finish long-term?

Clean regularly with a soft microfiber cloth and mild, pH-neutral soapy water. Never use chemical descalers, acidic bathroom cleaners, or abrasive scrubbing pads - these permanently damage the protective chromium and nickel plating layers. After cleaning, wipe dry to prevent hard water spots. The 500+ hour salt spray validated plating is engineered for long-term durability in humid bathroom environments with proper care.
